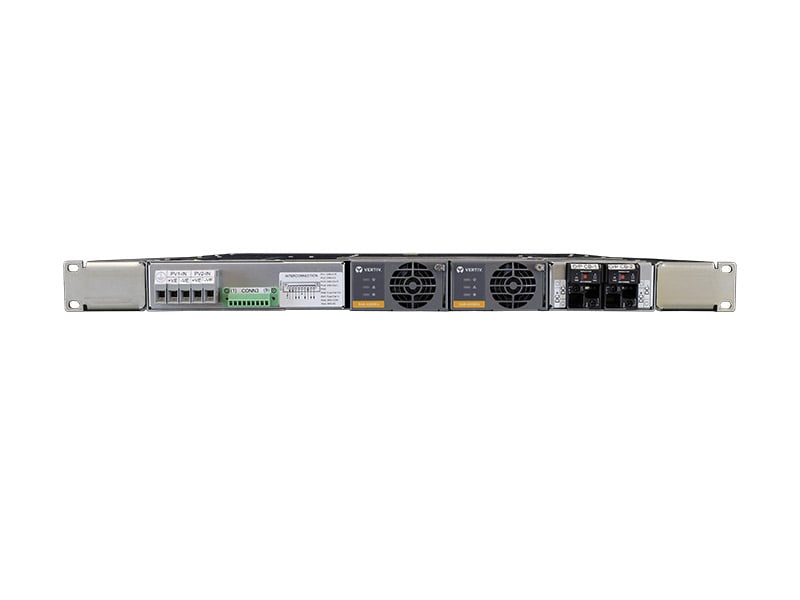

Solar Expansion Shelf
Achieve your sustainability targets and reduce operating costs by augmenting your existing DC power system with the exceptional solar power density of Vertiv’s NetSure Solar Converter Shelf utilizing Vertiv’s eSure 4300W solar converter modules .
Quick Access
Specifications
Technical Specifications
Solar Expansion Shelf
- Input
- Input Connections
- Terminal Block
- Equipment Dimensions (H x W x D)
- 44.45 mm / 1.75 in x 482.6 mm / 19 in x 425 mm / 16.73 in
- Access
- Front
- Output
- Load Circuit Breakers / Fuses
- High density - UL 1077
- Physical Characteristics
- Weight
- 8.98 kgs
- Height
- 44.45 mm
- Width
- 482.6 mm
- Depth
- 425 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- From Host NetSure System
- Operating Temperature
- -40C to 75C /-40F to 167F
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Solar Expansion Shelf
The NetSure Solar Converter Shelf is a compact -48 VDC solution that can easily be added to an existing DC power plant. Built on the proven reliability of Vertiv's solar converter module architecture, the NetSure Solar Converter Shelf delivers industry-leading system density and full power up to 55°C.
Benefits
Decrease generator operating or utility costs
Easily add to most existing Vertiv or third party DC power systems
Appreciate the convenience of high-density 4300W MPPT modular converters
Reduce costly site visits by remotely accessing the system controller
Enjoy predictable and reliable performance with proven Vertiv solutions
Features
Modular solar converters
Up to 8.6 kW of power per 1RU 19" wide shelf
Remote access
Front access cable terminations
