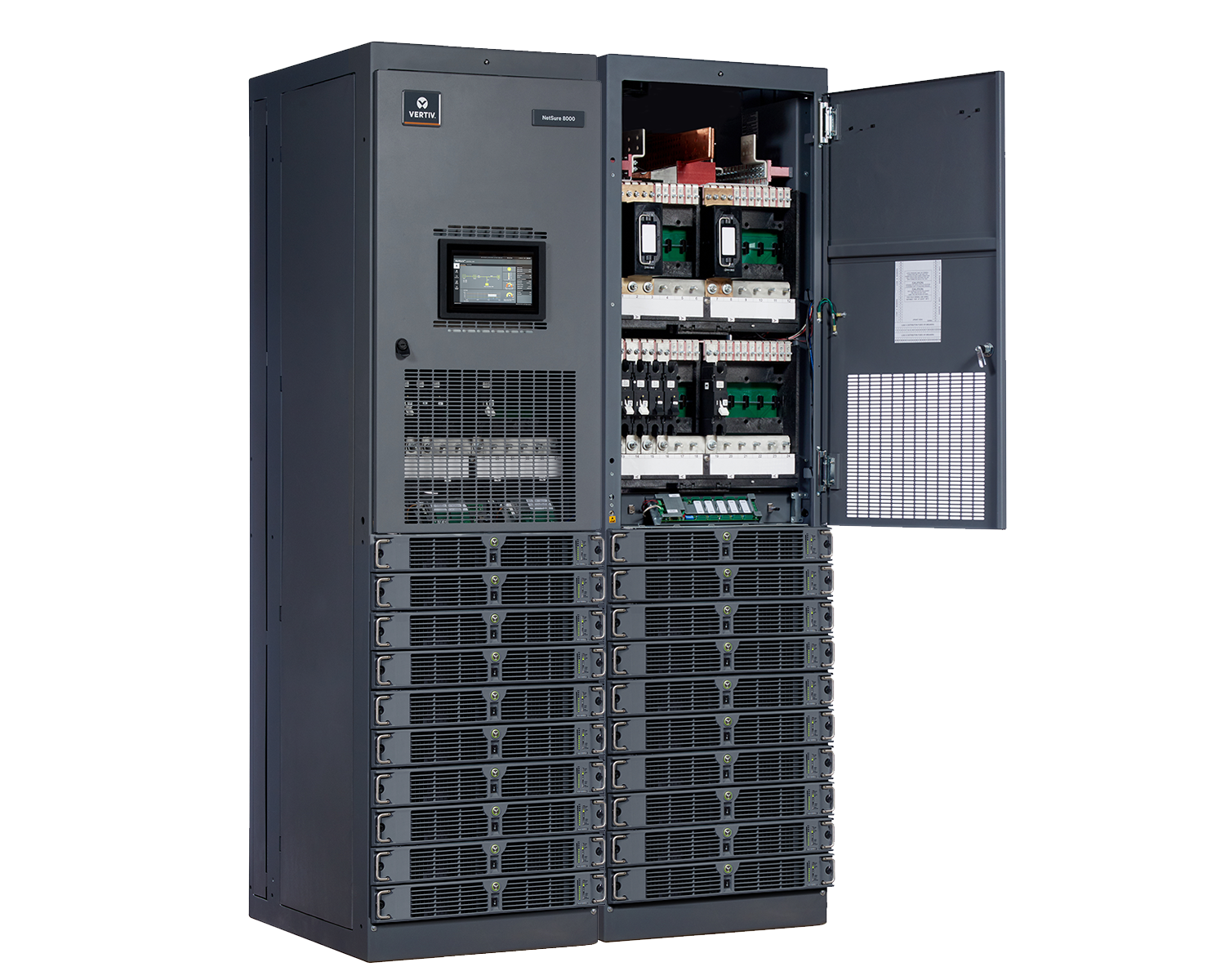

NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
Vantagens
Recursos
Especificações
- Product Overview
- Power Capacity
- 1 MW
- Current Capacity
- 20,000 A
- Output Voltage, Nominal
- 48 VDC
- Input Voltage, Nominal
- 208 or 480 VAC, 3-phase
- System Type
- Power Bay
- Input
- Input Voltage, Nominal
- 208 or 480 VAC, 3-phase
- Input Voltage, Operational
- 408-528 VAC to 176-264 VAC
- Equipment Dimensions (H x W x D)
- Combo Bay List 101 and List 111 93.5"x24"x30",830 lbs., Combo Bay List 102 and List 112 84"x24"x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
- Access
- Front and rear
- Output
- Output Voltage, Nominal
- 48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- 12,000 W rectifier
- Peak Efficiency
- 96.1% (480 VAC), 95.7% (208 VAC)
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL Fuses or GJ/218-Style breakers
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU controller
- Temperatura de Operação
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
