NetSure 512 Series DC Power System
The NetSure 512 Series, a compact -48/+24 volt 525 A DC power solution, features an advanced control unit, up to (30) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters.
- Telecomunicaciones

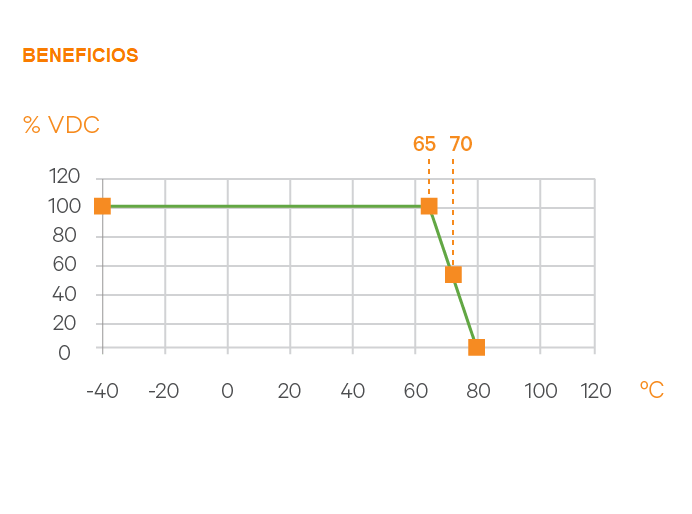

Beneficios

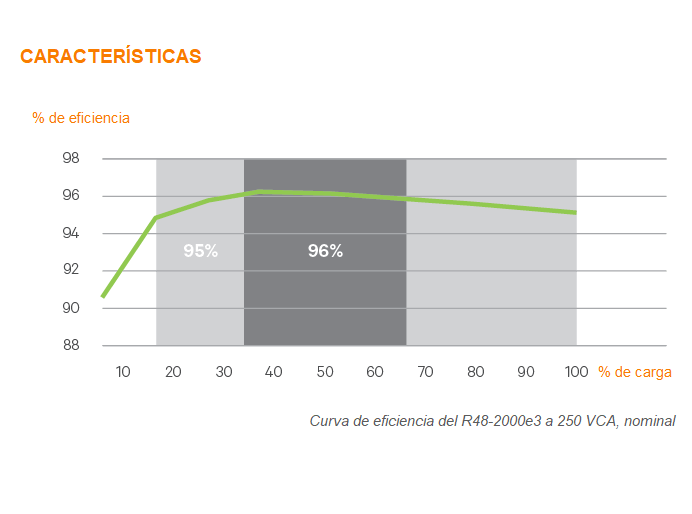

Características
Especificaciones
The NetSure 512 Series is a compact -48/+24 VDC, 525/400 A DC power solution, features an advanced control unit, up to (29) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters, and a dual row distribution cabinet. The power system supports cabinet mounting and is designed to work with a wide range of applications. The distribution section supports up to (59) 1 A to 300 A circuit breakers or 1 A to 100 A TPS/TLS fuses. Dual voltage (-48 V/+24 V) breaker positions are available. Multiple LVD levels are supported, allowing load prioritization in up to two steps.
- Product Overview
- Capacidad
- 18 - 28.8 kW/1.5 - 19.2 kW
- Capacidad de corriente
- 40 - 600 A/50 - 400 A
- Voltaje de salida, nominal
- -48V DC, +24V
- Voltaje de entrada, nominal
- Single phase: 208 VAC to 240 VAC
- Tipo de sistema
- System
- Input
- Voltaje de entrada, nominal
- Single phase: 208 VAC to 240 VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC, DC-DC Converter: 41 VDC to 58.5 VDC
- Input Connections
- Molex for AC cords or hardwiring
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 8U x 27" x 16", Module shelf: 1U x (19" or 23") x 15"
- Access
- Top or rear cabled with front and top access
- Output
- Voltaje de salida, nominal
- -48V DC, +24V
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC, -48V to +24V Converter: +24 VDC to +28 VDC
- Output Capacity
- Up to 600 amps at -48 VDC plus redundancy, Up to 400 amps at +24 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.2%, -48V to +24V Converter: 95%
- Load Circuit Breakers / Fuses
- 1-250 A E/M or E bullet nose breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Options
- SM-Temp
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Recognized (cUL)
- IM582137000 NetSure 512 Installation Manual
- UM60147273 eSure +27 VDC Bullet Converter Installation and User Manual
- UM582137000, Model 512 NGBB User Manual
- PSD_eSure-Rectifier-module_ENG_User-Manual_UM1R482000e3-Rev-P
- UM1C48241500 Converter User Manual
- UM547490 SM-TEMP User Manual
- QS582137000 Quick Start Guide Manual
- UM1R483500E Rectifier User Manual.pdf
- UM1C48582000P3 eSure Power Extend Converter User Manual
- UM10062803 +27 VDC Bullet Nose 6-Position GMT Fuse Board Kit Installation User Manual
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
