Product Model

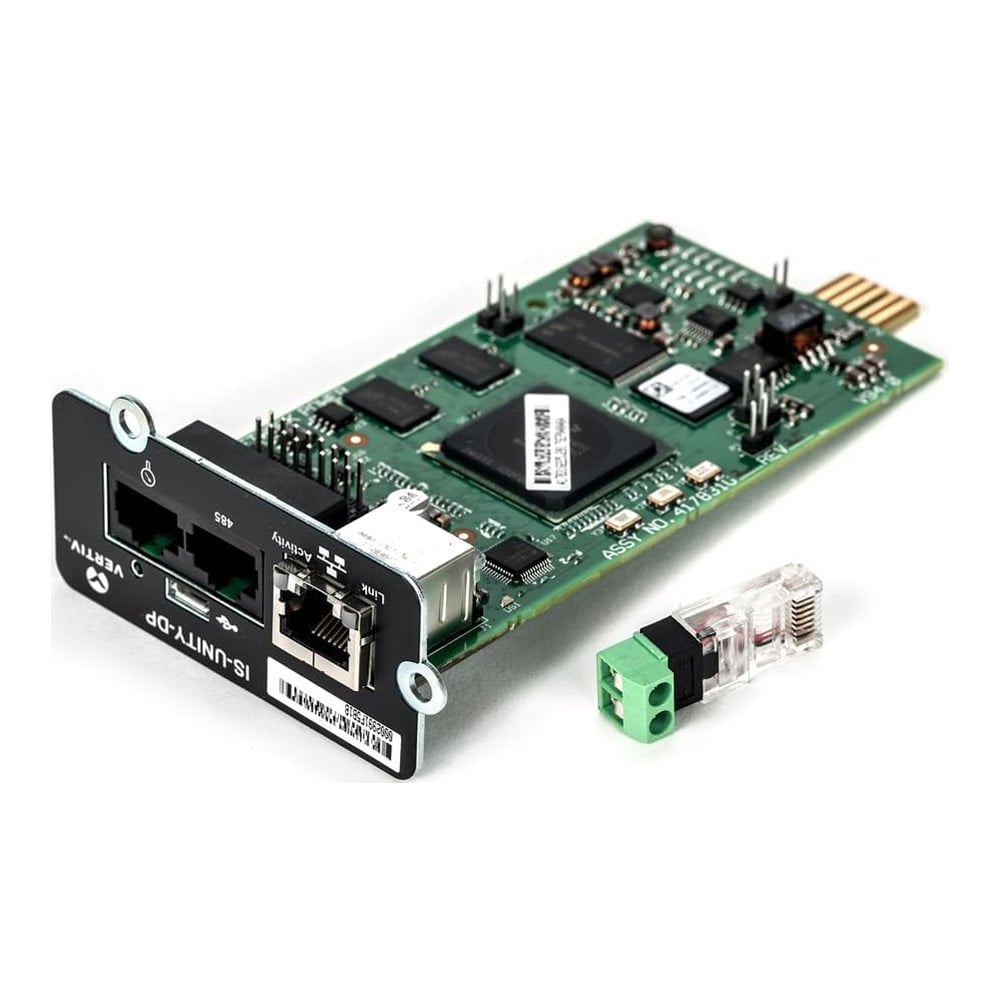

Vertiv™ Liebert® IS-Unity Communications Card
Provides Web access, environmental sensor data, and third-party customer protocols for Vertiv™ equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications. Provides a communication interface to Trellis™, LIFE™ Services, Liebert® Nform, and third-party building and network management applications.
Quick Access
Specifications
Technical Specifications
Vertiv™ Liebert® IS-Unity Communications Card
- Technical Specifications
- Operating Environment
- Linux
- Web User Interface
- HTTP and HTTPS - certificate loadable
- SNMP
- v1, v2c, and v3
- BACnet
- IP and MSTP - both BTL Certified
- Modbus
- TCP and RTU
- Notifications
- eMail and Text (SMTP/SMS)
- Configuration Port
- No
- Environmental Sensors
- Yes -Temp, Humidity, Leak, Door, Contact Closure
- Output Relay
- No
- Inputs
- Liebert SN Sensors, Web User Interface
- Networking
- 10/100 Mps Ethernet; RS-485 at 9600-115200 BAUD
- YDN23
- Yes
- LIFE Services Compatible
- Yes
- Weight
- 0.4
- Weight
- 0.2
- Height
- 1.45
- Height
- 37
- Width
- 2.97
- Width
- 75.5
- Depth
- 5.2
- Depth
- 132
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv™ Liebert® IS-Unity Communications Card
Vertiv™ Liebert® IntelliSlot™ Unity Communications Interface Card provides Trellis™, LIFE™ Services and Liebert® Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications.
Warranty : Thirteen month limited warranty from date of shipment
Benefits
Flexibility
Allows systems to be viewed from the network via browsers and popular protocols
Connects to Ethernet or 485 Serial networks, or both
Multiple third-party protocols (SNMP v1/v2c/v3, BACnet IP/MSTP, Modbus TCP/RTU, YDN23) from a single card
Environmental support using Liebert® SN Sensors - Temperature, Humidity, Leak Detection, Doors, Contact Closures
Supports a variety of Vertiv™ software tools and services
Security
HTTPS message and Web Access encryption
SNMP v3 with installable certificates
Features
Provides Web access to the installed device via popular web browsers - Microsoft Internet Explorer, Mozilla Firefox, Google Chrome, and Safari (MacBook and iPad)
Provides alarm notifications ia eMail and text messaging
Supports envinronmental monitoring via Liebert® SN Sensors
Third-party protocols (Modbus TCP/RTU, BACnet IP/MSTP, SNMP v1/v2c/v3, and YDN23) are supported for building and network management applications
Enables Vertiv software tools and services, including Trellis™, Liebert® Nform, and LIFE™ Services
