Product Model
Warranty:
Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.
VP4N30AP

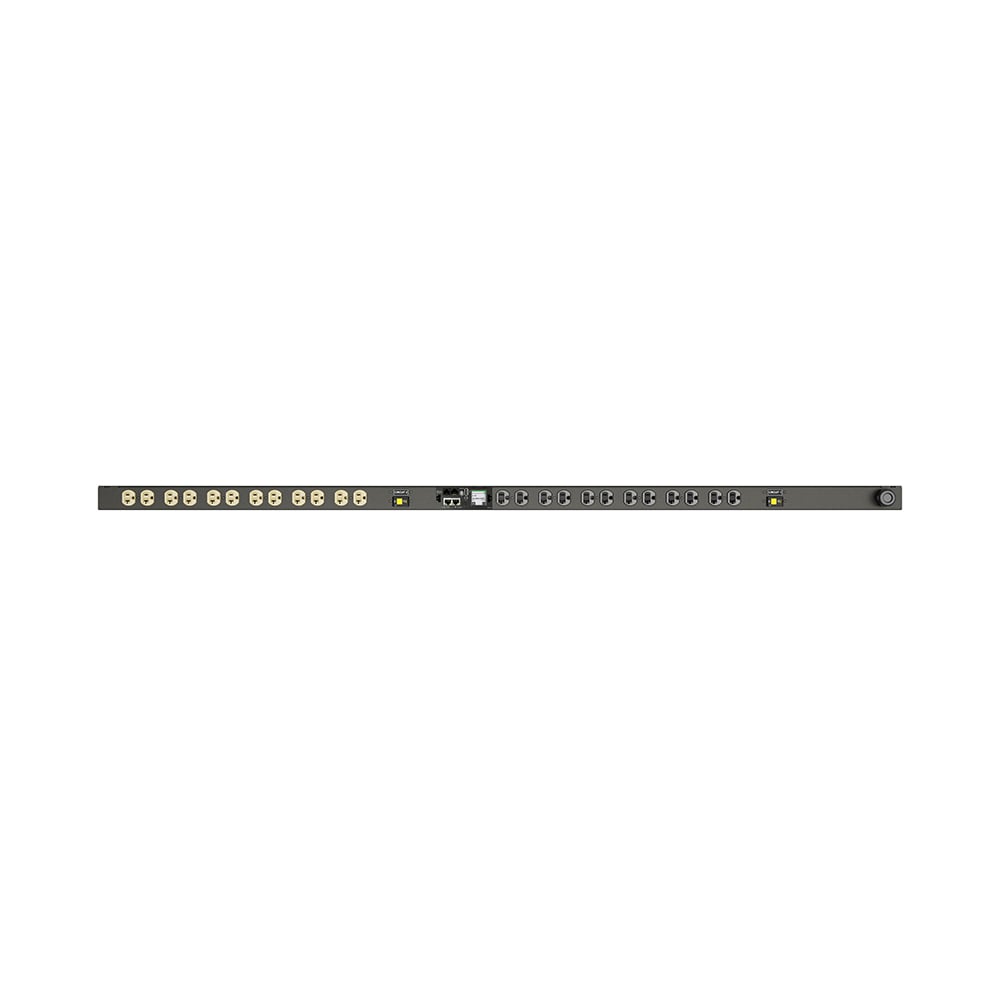

Unit Level Monitored Rack PDU VP4N30AP is a 30A, 120V 0U vertical with input power monitoring. It has 24 NEMA 5-20R receptacles and a NEMA L5-30P providing 2.8 kW of power capacity. The unit is equipped with an environmental sensor port and dual ethernet ports to simplify management of multiple rPDUs with fault-tolerant daisy chaining or IP aggregation capabilities.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Model
VP4N30AP
Unit Level Monitored Rack PDU VP4N30AP is a 30A, 120V 0U vertical with input power monitoring. It has 24 NEMA 5-20R receptacles and a NEMA L5-30P providing 2.8 kW of power capacity. The unit is equipped with an environmental sensor port and dual ethernet ports to simplify management of multiple rPDUs with fault-tolerant daisy chaining or IP aggregation capabilities.
Warranty: Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.Benefits
Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
Upgrade your hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs without having to replace entire power strips.
Every unit is 100% tested for reliability and functionality to ensure units function as designed.
North American units are UL listed in accordance with common data center and insurance provider requirements.
Standard three-year warranty, upgraded to five years with product registration.
Features
Hot-Swappable and upgradeable monitoring device.
Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).
Environmental monitoring with the addition of optional sensors.
High Temperature Grade 60°C for high temperature environments.
Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
Simple and quick installation in all standard racks or cabinets with included mounting brackets.
The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.
Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.
When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.
Specifications
Tools & Selectors
Select, compare, or configure PDUs
Use the rPDU Finder
Find the PDU you require based on a variety of configurations
Configure your own rPDU
Engineered solutions delivered in record time
Manuals
- Geist™ API Specification API Specifications SL-70874.pdf
- Vertiv™ Geist™ IMD-5M Replacement Guide (SL-71238).pdf
- Geist™ PDU IMD Modules Replacement Guide SL-70545.pdf
- Vertiv™ Geist™ Rack Power Distribution Unit Installer User Guide equipped with Firmware 6.x.x. SL-71211.pdf
- Vertiv™ Geist™ Upgradeable PDU and Universal PDU Quick Installation Guide (SL-70646)
- Device Director Software Installer User Guide (End of Life)
- VP4N30AP
Brochures and Data Sheets
- Vertiv™ Geist™ Environmental Monitoring Overview Brochure (SL-70429)
- Vertiv Rack PDU Brochure SL-20881
- Data Center Infrastructure Solutions - Channel Products Catalog
- Vertiv™ Device Director Data Sheet SL-28095 (End of Life).pdf
- Vertiv™ Geist™ Upgradeable rPDU IMD Feature Comparison.pdf
- Network Design & Switch Configuration for Vertiv™ Geist™ Upgradeable rPDU - Application Brief.pdf
- Providing Network Connectivity to Intelligent rPDUs Without Requiring Expensive Switch Ports for Each.pdf
- Deployment Methods for Environmental Monitoring - Application Brief.pdf
Software
Reports
- Reimagining Rack PDUs Through Modular Design White Paper.pdf
- Powering the Cloud, Using Intelligent rPDUs to Prevent the Storms of Downtime - White Paper
- Leveraging Smartphones for Improved Operations in the Data Center - White Paper.pdf
- Proactive Monitoring for the Dynamic Data Center - White Paper.pdf
- Avoid the Meltdown - Your rPDU is High Temperature Rated, but Are the Components.pdf
- How to Protect Your Data Center from Environmental Threats - White Paper.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
