產品型號

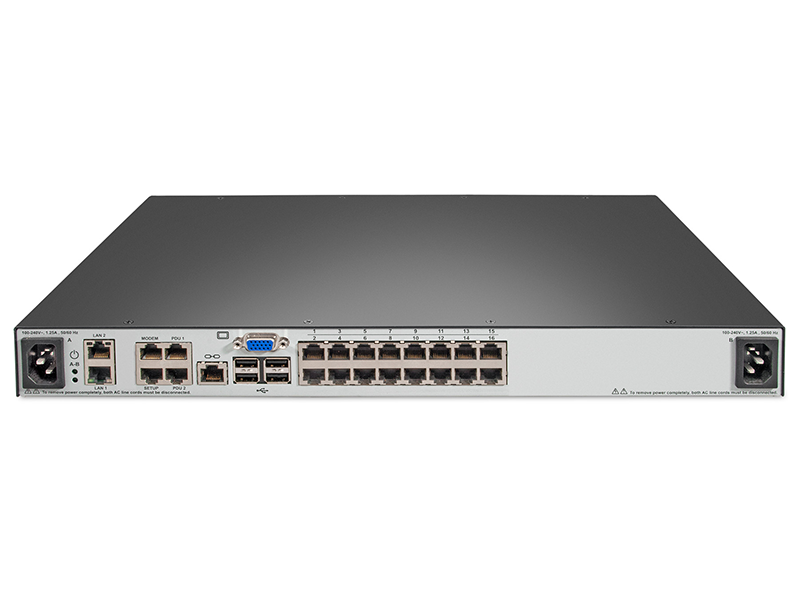

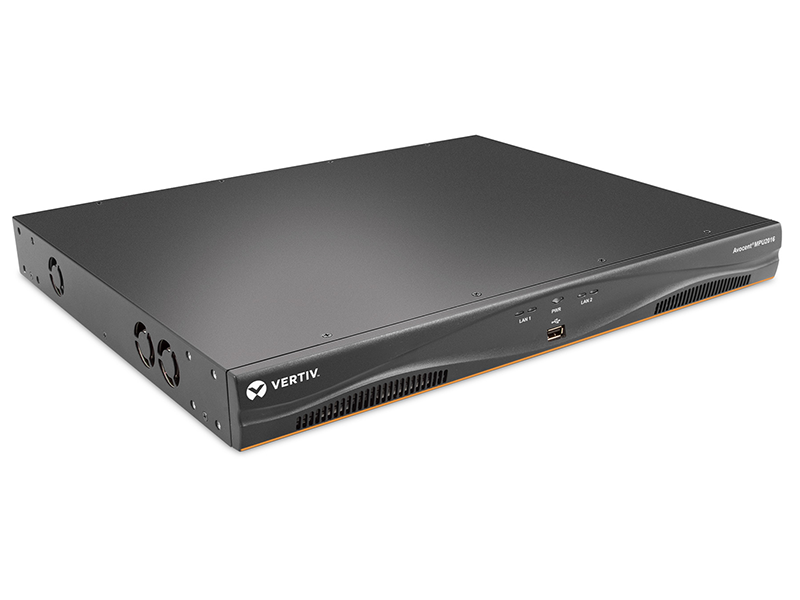

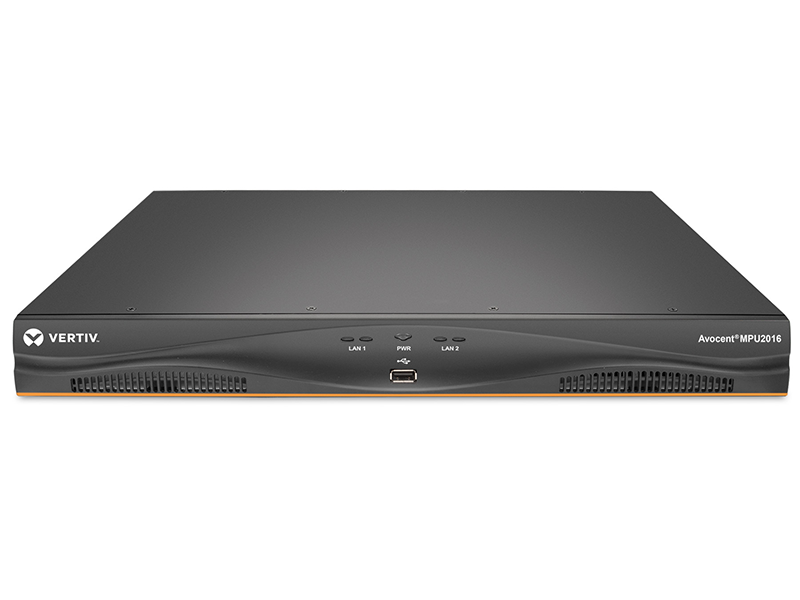

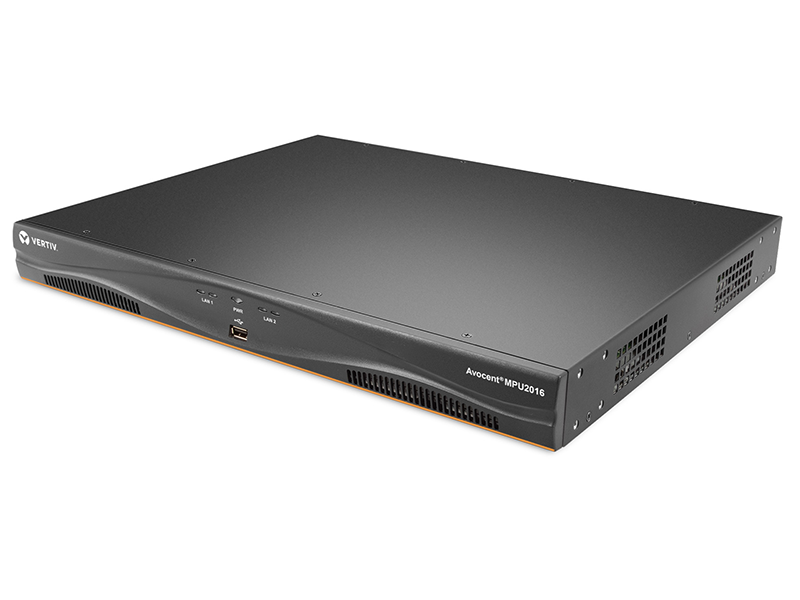

Avocent MPU2016DAC 數字KVM切換器

Avocent MPU digital KVM switches provide remote management to access and control servers in data centers and branch offices. The switch enhances in-band management by providing secure and remote out-of-band connections directly to the KVM, USB and serial ports. This approach creates a faster method to diagnose, reconfigure or restore equipment.

Find Sales Contact Get Brochure
適用場景:
  • 銀行、金融和保險
  • 資料中心 / 託管
  • 消防 / 警報 / 安全
  • 政府
  • 專業服務
  • 電信
Warranty: 2 Year Warranty

客戶價值

特性

The Avocent MergePoint Unity™ switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.

Avocent MPU2016DAC 數字KVM切換器
Product Overview
Type
KVM
Input Ports
1
Output Ports
32
Video Connection
VGA, DVI-I, Display Port and HDMI
Video Resolution
Maximum local video resolution 1920x1080
Graphic Mode
Internal Modem
No
Service Processor support
No
Extension Distance
50m
Cellular Support
No
Power Description
Power Supply(s)
Single or dual power, internal, 100-240V
Input Power (Maximum)
40W
Interfaces/Ports
Network Interface(s)
Dual
USB ports
4
USB Hub Support
Yes
Operational Conditions
Operating Temperature
32° to 22°F (0° to 50°C)
Humidity
5 - 95% relative humidity 38.7°C max wet bulb temp
Storage Temperature
-20° to 70°C
Physical Characteristics
重量(磅/公斤)
8.6 lbs
重量(磅/公斤)
3.9 kgs
高度(英寸/毫米)
1.72 in
高度(英寸/毫米)
43.69 mm
寬度(英寸/毫米)
17 in
寬度(英寸/毫米)
431.8 mm
高度(英寸/毫米)
13.38 in
高度(英寸/毫米)
339.85 mm
Miscellaneous
Other supported accessories
Serial
Authentication Supported
Local, LDAP
Agency Approvals
UL, FCC, cUL, ICES003, CE, VCCI, KCC, C-Tick, GOST

*查看具體型號產品資料,請進入上方規格表具體型號的產品頁面。
