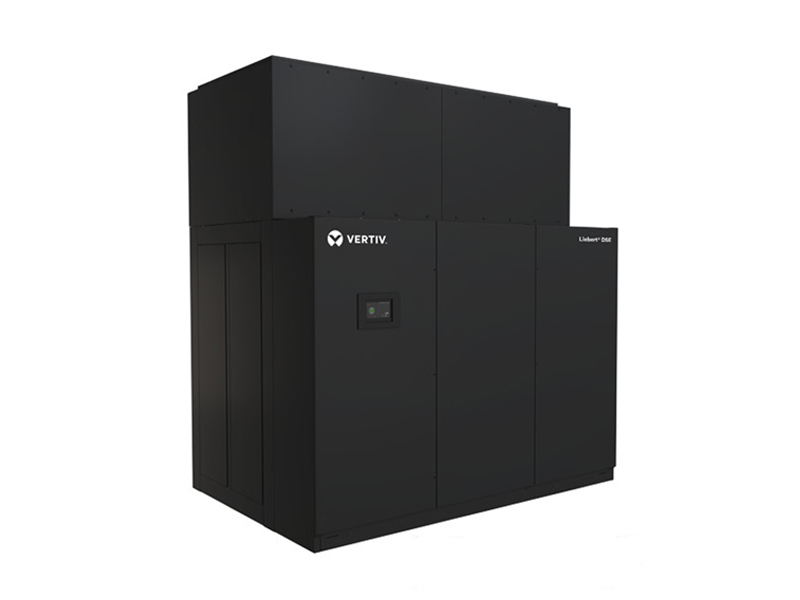

DA250 , 250kW
The Liebert DSE 250 provides new levels of performance for colocation and cloud hosting facilities, with rapid deployment, low cost of ownership, high energy efficiency and low peak power. The system is ideal for raised or non-raised floor data centers. Its pumped refrigerant economizer uses no water and requires no outside air into the data center. A packaged condenser and refrigerant pump can be rooftop mounted, making it ideal for multi-story buildings.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
- Bancos, Setor Financeiro e Seguradoras
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Governo
- Militar, Defesa, Espaço Aéreo e Mísseis
- Telecomunicação
DA250 , 250kW
The Liebert DSE 250 provides new levels of performance for colocation and cloud hosting facilities, with rapid deployment, low cost of ownership, high energy efficiency and low peak power. The system is ideal for raised or non-raised floor data centers. Its pumped refrigerant economizer uses no water and requires no outside air into the data center. A packaged condenser and refrigerant pump can be rooftop mounted, making it ideal for multi-story buildings.
- Bancos, Setor Financeiro e Seguradoras
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Governo
- Militar, Defesa, Espaço Aéreo e Mísseis
- Telecomunicação
Vantagens
Recursos
Especificações

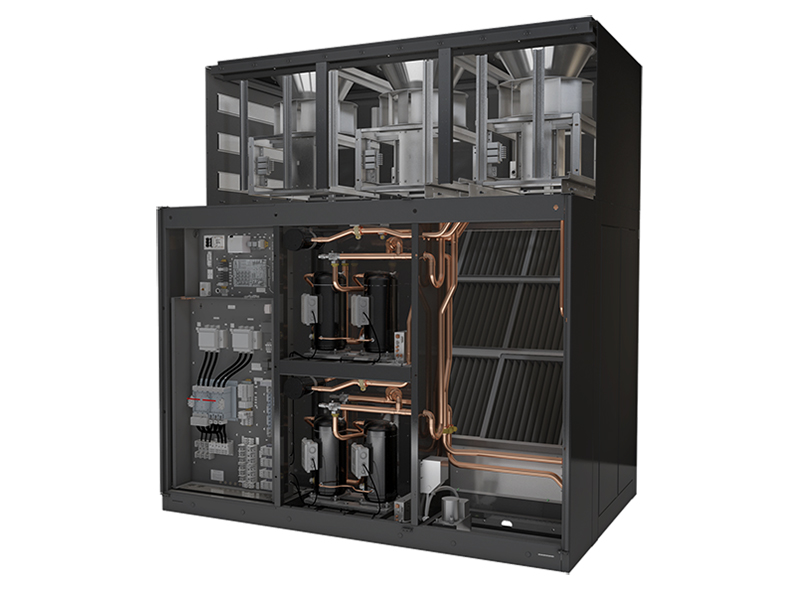

The Liebert DSE in 250kW capacity is a free cooling economization system with backup DX compressor, which achieves the high efficiency without using water. The system can achieve an annual operational PUE under 1.2., while eliminating water usage, cost and treatment. Its large condenser surface area minimizes operating and peak power to minimize generator backup or free up additional saleable IT power. Unlike heat wheels, it has no air leakage or volumetric displacement, eliminating the need for additional fan power or make-up air capacity. As a self-contained solution, Liebert DSE system is highly scalable for fast deployment and time to market. The Liebert DSE 250kW is comprised of a packaged pumped refrigerant economizer and a micro-channel condenser, plus an indoor CRAC unit. The system operates in free cooling or partial free cooling mode, depending upon outdoor temperatures. When criteria for economization are met, the compressors turn off and the refrigerant pump turns on to move the refrigerant through the system to reject the heat of the data center, using only a fraction of the power of a compressor. Automated economization, controlled by the advanced Liebert iCOM control, maximizes the number of free cooling hours by enabling economization whenever conditions warrant, including evening and night-time hours. It also eliminates the use of water. The Liebert DSE system was recently approved by the State of California as a prescriptive option for economization under Title 24. Additionally, the system protects against outside air contamination and reduces system wear and tear by eliminating air dampers and louvers.
Air-cooled free-cooling system with water-free economization, a rapidly deployable configuration and advanced Liebert iCOM thermal controls to optimize each unit and harmonize the operation of multiple units for temperature and airflow. Highly scalable and modular design accommodates changing IT loads and is ideal for upgrading outdated or inefficient cooling systems.
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 853 (250)
- Net Sensible Capacity kBtuh [kW]
- 853 (250)
- Nominal Airflow [CFM]
- 37,000
- Total Capacity
- 853 (250)
- Net Sensible Capacity
- 853 (250)
- Nominal Airflow
- 37,000
- Airflow Direction
- Front and Bottom Discharge
- Heat Rejection Medium
- Refrigerant
- Controls and Monitoring
- Liebert iCOM unit controls
- Agency Approvals
- AHRI Certified
- Key Components
- CRAC, Packaged Condenser/Refrigerant Pump
- Physical Characteristics
- Peso (lbs / kgs)
- 6285 lb
- Peso (lbs / kgs)
- 2850 kg
- Altura (pol/mm)
- 132 1/8 in
- Altura (pol/mm)
- 3406 mm
- Largura (pol/mm)
- 120 1/8 in
- Largura (pol/mm)
- 3051 mm
- Profundidade (pol/mm)
- 83 1/2 in
- Profundidade (pol/mm)
- 2122 mm
*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
