Liebert HPC-S - Air-cooled, Freecooling and Adiabatic Freecooling Chillers

Air-Cooled, freecooling and adiabatic freecooling chillers designed for the efficient cooling of small data centers

Obter Brochura

Ideal para:

Bancos, Setor Financeiro e Seguradoras
Transmissão e Entretenimento
Construção e Engenharia
Data Center/ Colocation / Hosting
Governo
Setor de Saúde
Manufatura
Varejista e Atacadista
Telecomunicação
Transporte

Família de Produtos

Liebert HPC-S - Air-cooled, Freecooling and Adiabatic Freecooling Chillers

Air-Cooled, freecooling and adiabatic freecooling chillers designed for the efficient cooling of small data centers

Obter Brochura

Ideal para:

Bancos, Setor Financeiro e Seguradoras
Transmissão e Entretenimento
Construção e Engenharia
Data Center/ Colocation / Hosting
Governo
Setor de Saúde
Manufatura
Varejista e Atacadista
Telecomunicação
Transporte

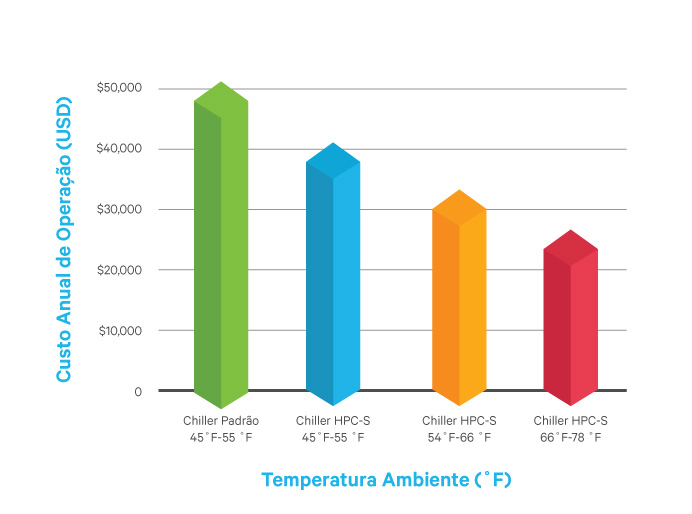

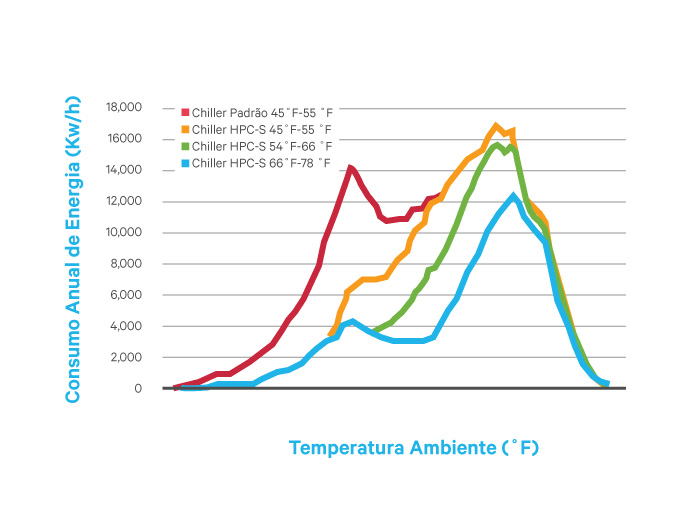

The newest data center designs, in accordance with ASHRAE (the American Society of Heating, Refrigerating and Air Conditioning Engineers) guidelines, have accepted to move out of the recommended envelope to the allowable ranges (A1-A4). The Liebert® HPC-S freecooling chiller embraces this trend by expanding its range to include the adiabatic freecooling models which incorporate newest developments in the management of adiabatic technology. When specifically applied to data centers with high chilled water temperatures, the adiabatic freecooling version of the Liebert HPC-S is capable of achieving an energy saving of 25% to 30% compared to a standard freecooling chiller solution.

Especificações por modelo

Print Download Email

FG0023
Modelos	Total Nominal Capacity kBtuh [kW]	Version	Sound Pressure Level	Altura (pol/mm)	Largura (pol/mm)	Profundidade (pol/mm)
FG0023	224.4 (206.8 with quiet configuration)	Freecooling Chiller	79.0 (65.5 with quiet configuration)
See more product information
FG0025
FG0025	242.7 (224.7 with quiet configuration)	Freecooling Chiller	79.0 (65.5 with quiet configuration)
See more product information
FB0025
FB0025	235.8 (231.1 with the low noise configuration)	Freecooling Chiller	76.5 (71.0 with the low noise configuration)
See more product information
FB0028
FB0028	268.0 (262.7 with the low noise configuration)	Freecooling Chiller	76.5 (71 with the low noise configuration)
See more product information
FB0030
FB0030	303.6 (297.4 with the low noise configuration)	Freecooling Chiller	77.0 (71.5 with the low noise configuration)
See more product information
CG0020
CG0020	185.5 (170.1 with quiet configuration)	Freecooling Chiller	78.5 (65.0 with quiet configuration)
See more product information
CG0028
CG0028	270.8 (251.3 with quiet configuration)	Freecooling Chiller	79.5 (66.0 with quiet configuration)
See more product information
CB0017
CB0017	163.3 (159.9 with the low noise configuration)	Freecooling Chiller	76.0 (70.5 with the low noise configuration)
See more product information
CB0020
CB0020	178.5 (174.4 with the low noise configuration)	Freecooling Chiller	76.0 (70.5 with the low noise configuration)
See more product information
CB0023
CB0023	205.8 (200.5 with the low noise configuration)	76.0 (70.5 with the low noise configuration)	Freecooling Chiller	98.43 in	147.64 in	51.18 in
See more product information

*Para ver uma página de produto específica de um modelo, clique no nome do modelo acima.

Vantagens

The freecooling and adiabatic freecooling operation allows to reduce the annual use of compressors, thus achieving top efficiency levels.

In the adiabatic models, the highly efficient adiabatic wet pads humidify air entering the freecooling and condensing coils, increase freecooling operation and mechanical efficiency.

Audible noise is reduced to a minimum as a result of EC Fans and special acoustic insulation.

The Fast Start option ensures full restoration of chiller capacity within 100 seconds from a power re-start.

The Supersaver software logic embedded in the iCOM Control leverages on the communication with floor mount units to maximize efficiency at system level.

Recursos

Adiabatic freecooling and freccooling versions available

Scroll compressors

"G" version available to achieve an higher efficiency

Fast Start Ramp

EEV (Electronic Expansion Valve)

EC Fans

Optimized for R410A refrigerant

iCOM Control

Catálogos e folhas de dados

Liebert HPC-S, 60-400kW

*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
