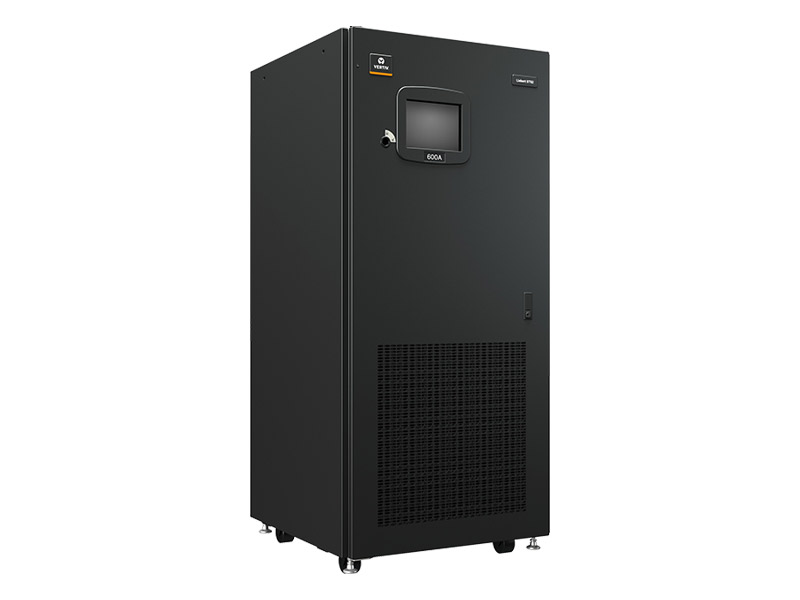

Liebert® STS2 StaticTransfer Switch
For maximum availability applications, Liebert® STS2 static transfer switch provides an automatic, seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Banking
- Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
- Education
Liebert® STS2 StaticTransfer Switch
For maximum availability applications, Liebert® STS2 static transfer switch provides an automatic, seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS.
- Data Center/Colocation/Hosting
- Banking
- Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
- Education
Especificações
The Liebert® STS2 from Vertiv is making it easier to protect your critical equipment by giving your single cord loads the reliability of dual cord power or by providing added redundancy to your dual cord devices. With a single, space-saving unit, the Liebert STS2 static transfer switch provides automatic switching between two different AC power sources. The Liebert STS2 is available in 100A, 250A, 400A, 600A, 800A and 1,000A systems, in both 60Hz and 50Hz. Multiple input voltages are available. Designed for use in dual-bus power applications, this solution combines fast switching between AC power sources, power isolation, monitoring and grounding into a single package.
|
Liebert® STS2 ST 100A
|
|||||
|---|---|---|---|---|---|
| 100 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 30 in | 32 in | 780 lbs |
| See more product information | |||||
|
Liebert® STS2 ST 250A
|
|||||
| 250 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 30 in | 32 in | 780 lbs |
| See more product information | |||||
|
Liebert® STS2 ST400A
|
|||||
| 400 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 38 in | 32 in | 1200 lbs |
| See more product information | |||||
|
Liebert® STS2 ST 600A
|
|||||
| 600 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 38 in | 32 in | 1200 lbs |
| See more product information | |||||
|
Liebert® STS2 ST 800A
|
|||||
| 800 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 84 in | 32 in | 2500 lbs |
| See more product information | |||||
|
Liebert® STS2 ST 1000A
|
|||||
| 1000 amps | 208, 220, 240, 380, 415, 480, 600 VAC | 77 in | 84 in | 32 in | 2500 lbs |
| See more product information | |||||
|
Liebert® STS2 SR 400A
|
|||||
| 400 Amps | 208, 480 VAC | 69.4 in | 31.7 in | 32 in | 1200 lb |
| See more product information | |||||
|
Liebert® STS2 SR 600A
|
|||||
| 600 amps | 208, 480 VAC | 69.4 in | 31.7 in | 32 in | 1200 lb |
| See more product information | |||||
|
Liebert® STS2 SX 1200-1850A
|
|||||
| 1200, 1250, 1400, 1600, 1800, 1850 amps | 380, 400, 415, 480, 575, 600 VAC | 88 in | 25.7 in | 35.6 in | 1430 lbs |
| See more product information |
Vantagens
Recursos
*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
Contatos
Suporte em
Alterar localização
Perguntas frequentes
- P
- Do I need a static switch in my power distribution system?
- R
- There are many ways to design a power backup and distribution system. Please reference our white paper on Emerging Power Architectures in the Reports section on this web page or consult your local sales office for suggestions on how best to leverage and compare your existing equipment, power system goals and our capabilities.
- P
- Can the product be customized?
- R
- There are many custom solutions available for our products. Please contact your local sales office for more information.
