Família de produtos

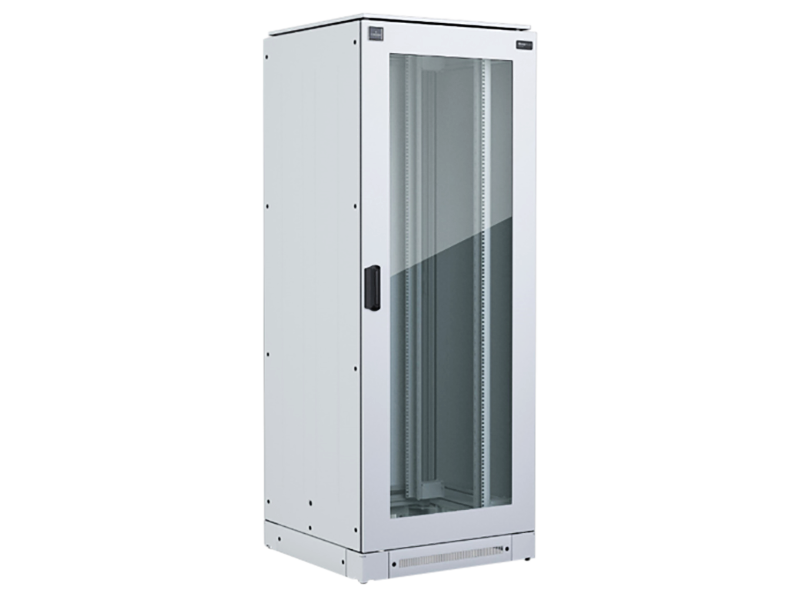

Vertiv Knürr MIR2 Network Rack

Vertiv Knürr® MIR2, the classic amongst innovative racks, is demonstrated by the long-standing and continuous satisfaction of our customers. Drawing on Vertiv's extensive experience with a wide range of applications, MIR2 has now been adapted for network and server applications. The network cabinet offers sufficient space between the 19" shelves and the side wall, and also allows the installation of PDUs and cable management components.

Obter brochura Obter manual
Especialmente adequado para:
  • Data CenterColocationHosting
  • Banking Financial and Insurance
  • Broadcast and Entertainment
  • Telecom
  • Construction and Engineering
  • FireAlarmSecurity
  • Government

Vertiv Knürr® MIR2, the classic amongst innovative racks, is demonstrated by the long-standing and continuous satisfaction of our customers. Drawing on Vertiv's extensive experience with a wide range of applications, MIR2 has now been adapted for network and server applications. The network cabinet offers sufficient space between the 19" shelves and the side wall, and also allows the installation of PDUs and cable management components.

VERTIV Knürr® MIR2 is a consequent improvement of Knürr legendary Miracel® Rack. The innovative Knürr Miracel® 2 has been designed to become even more to meet current requirements in order to ensure that it will continue to meet customers needs well into the future.

Vantagens

VERTIV Knürr® MIR2 is a consequent improvement of the legendary Knürr Miracel® Rack. The innovative Knürr Miracel®2 has been designed to become even more to meet current requirements in order to ensure that it will continue to meet customers needs well into the future
Material
– Extruded aluminum
– Corner piece: die-cast aluminum
– Casing: galvanized steel sheet
– Doors: steel sheet
Installation dimensions in accordance with IEC 60297-1 and IEC 60297-2
– Height: 42 U / 47 U) (U = 44.45 mm)
– Width: 482.6 mm (19")
Available space
– 80 mm jumpering space at the front, up to 215 mm ranges
– Internal hinge: 130° for rack suites: 160° for stand-alone racks
– External hinge: 180° for stand-alone racks and rack suites
Installation options
– Stationary, on levelling feet
– Mobile, with castor mounting and levelling feet
Static load rating
– 8000 N (stationary version)
– 4000 N (mobile version)
Tests depending on the design
–  Earthing and earth wire test in accordance with DIN EN 60950
–  IP20 rating accordance with EN 60529

Características

For network applications, the highly versatile Knürr Miracel® 2 combines various components and applications in one place
The clever, fully integrated T-Slot system in the aluminum extrusions also allows for the free configuration of accessories and makes it easy to install each and every component
Being a modular racksystem, it can easily be expanded at any time and the cableentry points can be flexibly tailored for specific needs
Various concepts and designs for airflows from the front to the rear. The perforation degree of 83% guarantees ideal airflow
 Fully configurable based on the Smart-Part-Number. When assembling your rack you have awide range of stockpiled modules and rack components to choose from
 With a load rating of 800 kg, Knürr Miracel® 2 is a cleverly designed space-saving rack that offers ample space for a wide range of equipment and, thanks to the absence of depth members, also present at the sides. It provides maximum flexibility with the greatest possible space for cables and cooling components
 Rack's integrated castors and doors also make it easy to move without needing to be tilted
 Made from aluminum, Knürr Miracel®2 is extremely light, minimizing raised floor loading and making it easy to transport and set up

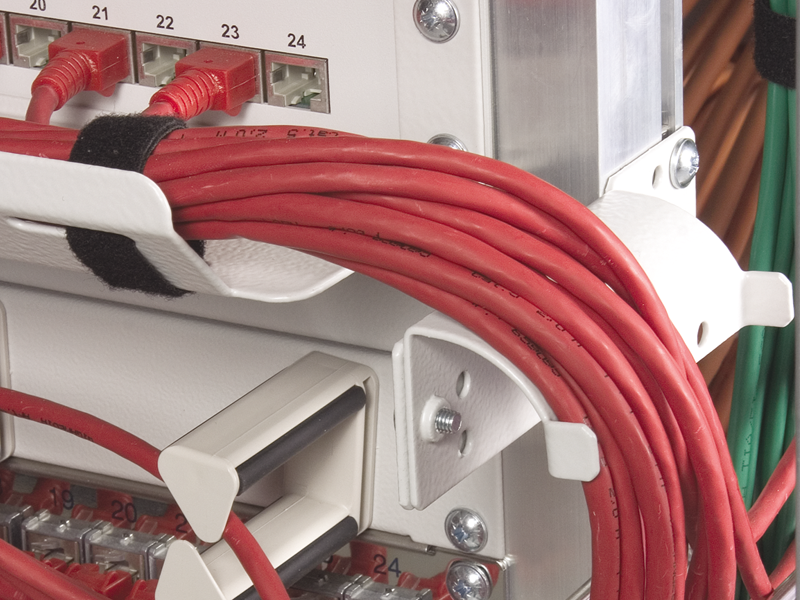

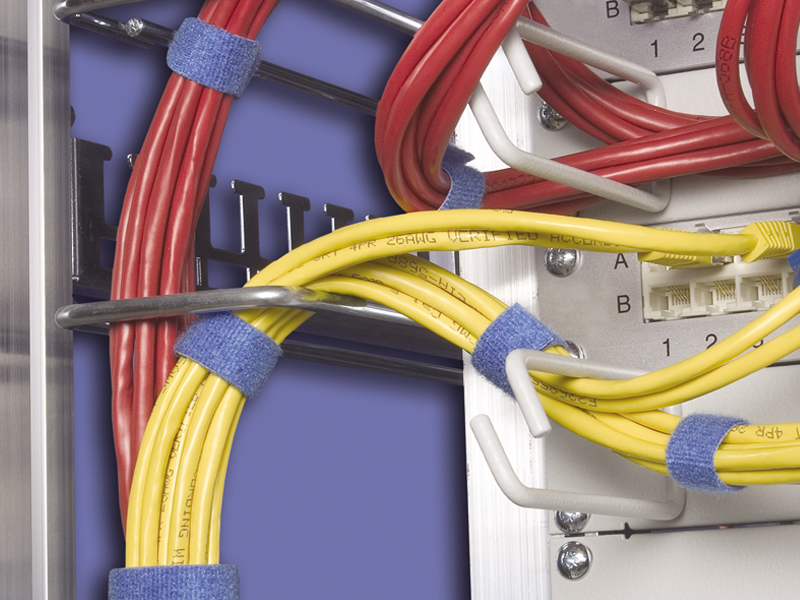

Optional tilt restraint ensures safety for service staff. Various variants for cable management make it possible to adjust to the installation conditions.
Finish / Colour
Basic rack polished
Visible surface of casing ar
powder-coated in:
RAL 7021 dark-grey or
RAL 7035 light-grey
