Família de produtos

Vertiv™ PowerIT UPDU, Universal Power Distribution Unit

The Universal PDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (sold separately). The Universal PDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power and environmental monitoring and optional outlet level switching. The universal design simplifies critical IT infrastructure deployments by allowing a single model to be installed globally.

Encontrar contacto de vendas Find My Rack PDU Obter manual

Vertiv™ PowerIT UPDU, Universal Power Distribution Unit Image

Especialmente adequado para:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Garantia: Vertiv™ PowerIT UPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Família de produtos

Vertiv™ PowerIT UPDU, Universal Power Distribution Unit

Encontrar contacto de vendas Find My Rack PDU Obter manual

Especialmente adequado para:

Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Power/Gas Transmission and Distribution

Garantia: Vertiv™ PowerIT UPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Tools & Selectors

Select, compare, or configure PDUs

Use the rPDU Finder

Find the PDU you require based on a variety of configurations

Configure your own rPDU

Engineered solutions delivered in record time

Selecting an rPDU

Vertiv™ PowerIT UPDUs are available in 11kW and 22kW max power load capacities in both vertical and horizontal form factors with various receptacle combinations and monitoring options. To view the full list of available models visit the rPDU Finder.

Descrição geral das especificações do modelo

Imprimir Transferir Email

Vertiv Geist Universal PDU VP4UV0A2
Modelos	Capacidade	Intervalo da tensão de entrada	Intervalo da tensão de saída	Opções de saída	Localização	Largura	Profundidade	Peso
Vertiv Geist Universal PDU VP4UV0A2	22kW max	Variable	Variable	30 Combination Outlets C13/C19	Rack	2	2.5	21
Ver mais informações sobre o produto
Vertiv Geist Universal PDU VP4UU0A1
Vertiv Geist Universal PDU VP4UU0A1	11kW max	Variable	Variable	42 Combination Outlets C13/C19	Rack	2	2.25	22
Ver mais informações sobre o produto
Vertiv Geist Universal PDU VP7UV0A0
Vertiv Geist Universal PDU VP7UV0A0	22kW max	Defined by FSC	Defined by FSC	18 U-Lock C13, 12 U-Lock C19	Rack	2 in	2.6 in	25
Ver mais informações sobre o produto
Vertiv Geist Universal PDU VP7UU0A0
Vertiv Geist Universal PDU VP7UU0A0	11kW max	Defined by FSC	Defined by FSC	30 U-Lock C13, 6 U-Lock C19	Rack	2	2.6	27
Ver mais informações sobre o produto
Vertiv Geist Universal PDU VP7UV0A3
Vertiv Geist Universal PDU VP7UV0A3	22kW	230V-415V	Defined by FSC		Rack	2	2.6
Ver mais informações sobre o produto
Vertiv Geist Universal PDU VP7UU0A2
Vertiv Geist Universal PDU VP7UU0A2	11.0kW	230V-415V	Defined by FSC		Rack	2	2.6	27
Ver mais informações sobre o produto

* Para ver uma página de produto de um modelo específico, clique no nome do modelo acima.

Vantagens

The Universal Input enables users to utilize a single Universal PDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide.

Increase or decrease Universal PDU power capacity by changing the Facility Side Cable to adapt to fluctuating equipment power needs.

Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs.

Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control on select models.

Reliable power distribution with local and remote power monitoring available on select models offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.

Monitor power consumption at the outlet-level on select units for a detailed view of power distributed to specific equipment with the outlet level option.

Environmental monitoring capabilities available on select models ensure users have critical infrastructure data at their fingertips.

U-Lock receptacles on select models secure power cords and avoid accidental disconnections.

Every unit is 100% tested for reliability and functionality to ensure units function as designed.

Standard three-year warranty, upgraded to five years with product registration.

Save time and money by pre-integrating Vertiv™ PowerIT rPDUs with the VR Rack. Contact your local sales representative to get started.

Características

The universal power input can mate to any geographically specific Facility Side Cable and is designed to operate with variable power input configurations (defined by the connected cable).

The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.

Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only).

High Temperature Grade 60°C for high temperature environments.

Available in vertical and horizontal rackmount form factors.

Simple and quick installation in all standard racks or cabinets with included mounting brackets.

Simple and convenient configuration options for chassis colors.

TAA compliant.

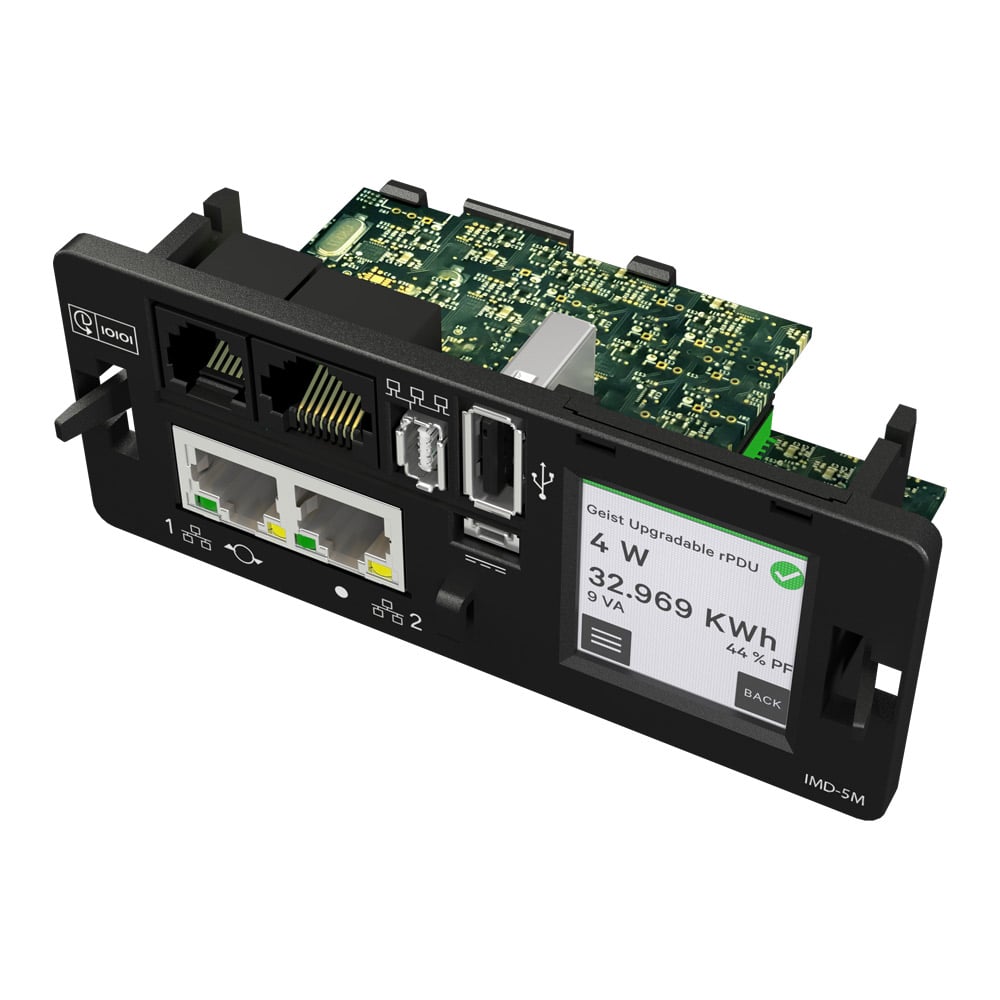

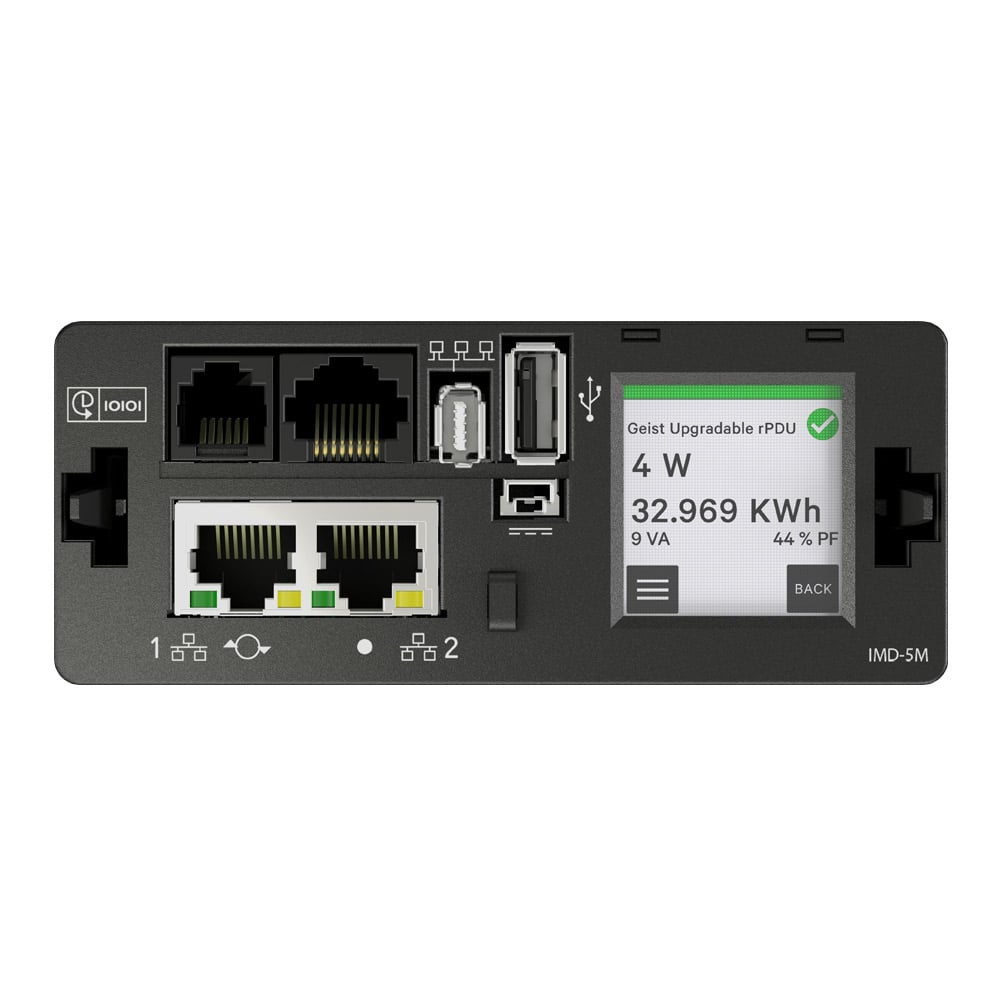

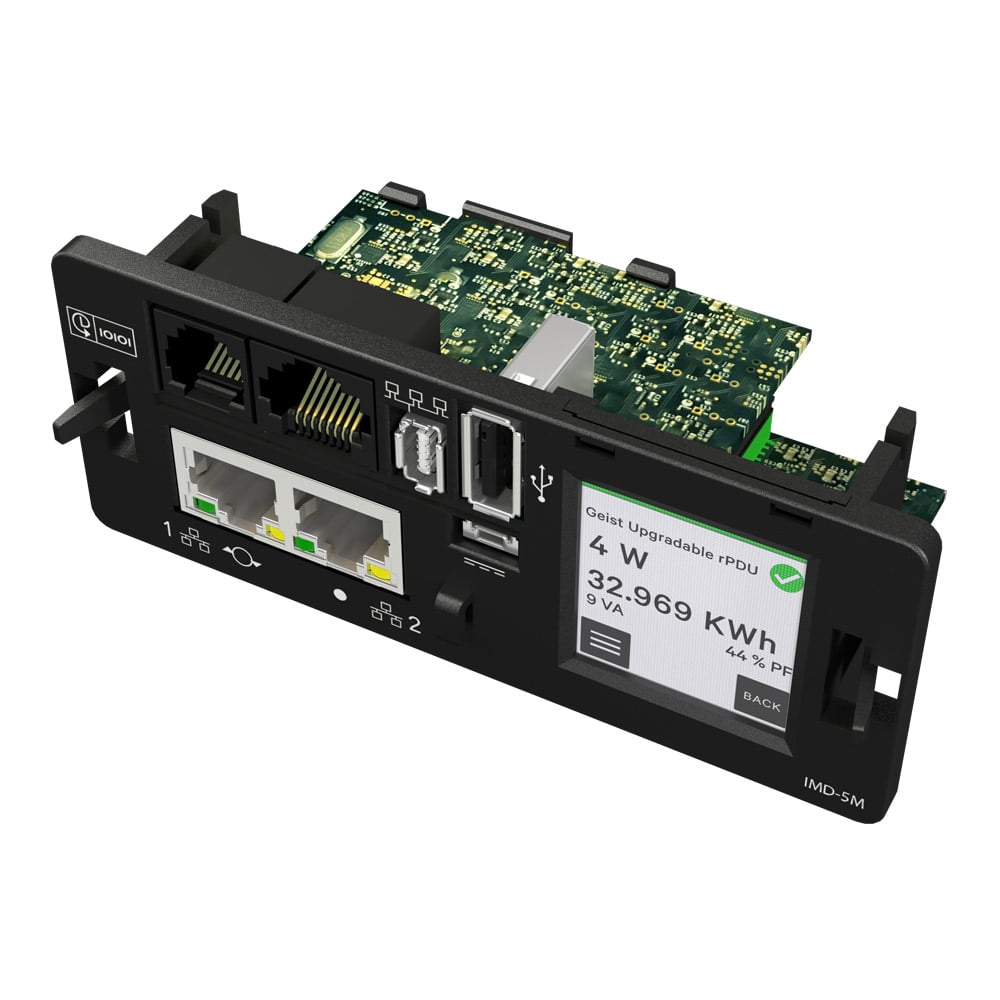

The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.

Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.

When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.

Manuais

Folhetos e fichas de dados

Software

Download Software and Firmware for PowerIT Devices

Garantias

Limited Warranty for Geist™ Products

*Para ver transferências específicas do modelo, terá de ir para a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.

Encontre o contacto da sua área

Contactos de apoio aos produtos

Contactos de apoio aos produtos A mostrar contactos para Ohio, 43215, USA Alteração

Geist Support - Americas (Rack PDU and Watchdog)

+1 888 630 4445

1777 Yolande Avenue Lincoln Nebraska USA

Áreas de foco do produto: Distribuição de energia, Monitorização

Vertiv (Customer Service for DC Power Systems & Outdoor Enclosures)

+1 800 800 1280

USA

Áreas de foco do produto: Sistemas de Energia CC, Distribuição de energia, Armários exteriores

Vertiv (Liebert Services)

+1 800 543 2378

610 Executive Campus Drive Westerville Ohio 43082 USA

Áreas de foco do produto: Sistemas de Alimentação Ininterrupta (UPS), Distribuição de energia, Gestão térmica, Soluções Integradas, Bastidores e Corredores de Contenção

Additional Resources

Watch Vertiv™ Geist™ UPDU - Rack Power Redefined

The Vertiv™ Geist™ Universal Power Distribution Unit (UPDU) is a versatile and robust rack power distribution unit designed with a universal power input and a detachable Facility Side Cable (FSC) able to meet AC power topologies common worldwide, ranging from 16A to 60A, 120V to 415V with single and three phase power configurations. The UPDU and FSC redefine the Rack PDU by reducing the complexity of IT power infrastructure deployments. The universal design enables customers to take a holistic approach with their global IT infrastructure, allowing a single UPDU to be purchased, installed, and shipped to any facility worldwide.

Evolutionary Change in Data Center Rack Power Distribution

Companies like Google, Amazon, and Microsoft have data centers regionally located around the globe. While this has advantages for regional services, it complicates deployment as power configurations are not universally standard.

Universal Rack Power Distribution Unit (UPDU): Simplify Infrastructure Deployments with a Single rPDU Globally

A Vertiv Application Brief
