Prodotto
Garanzia:
One Year Limited Warranty Against Defects in Material and Workmanship
Liebert MC Microchannel Outdoor Condenser, 28 - 220kW
The Liebert MC Microchannel Condenser is an outdoor air-cooled condenser that provides higher efficiency, while using less refrigerant. Features such as variable speed fans, advanced controls and a microchannel coil make this system uniquely innovative.
Questo prodotto è stato salvato sul tuo dashboard
Hai appena salvato questo prodotto sul tuo dashboard per vederlo più tardi. Puoi facilmente rimuovere l'articolo dal tuo dashboard se non desideri più tenerlo salvato.
Eseguire il login o creare un account per salvare queste informazioni per dopo
Particolarmente adatto per:
- Education
- Data CenterColocationHosting
- Banking Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Prodotto
Garanzia:
One Year Limited Warranty Against Defects in Material and Workmanship
Liebert MC Microchannel Outdoor Condenser, 28 - 220kW
The Liebert MC Microchannel Condenser is an outdoor air-cooled condenser that provides higher efficiency, while using less refrigerant. Features such as variable speed fans, advanced controls and a microchannel coil make this system uniquely innovative.
Particolarmente adatto per:
- Education
- Data CenterColocationHosting
- Banking Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Vantaggi

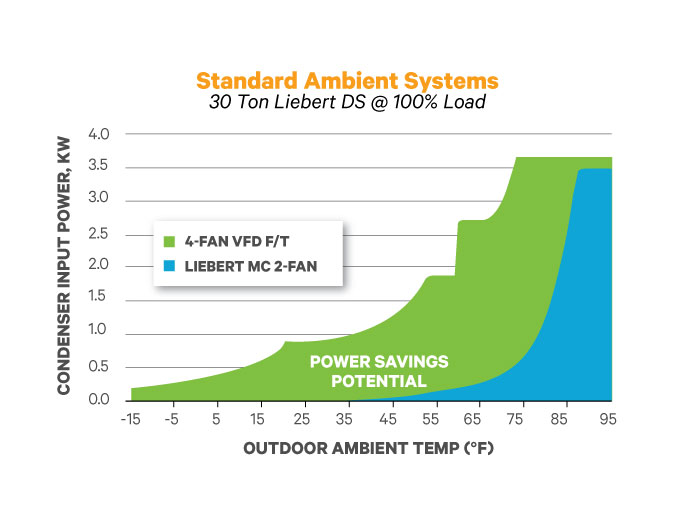

Operates with higher efficiency than fin and tube condensers, with an annual savings of up to 85%
Improves unit and system efficiency at full and partial loads

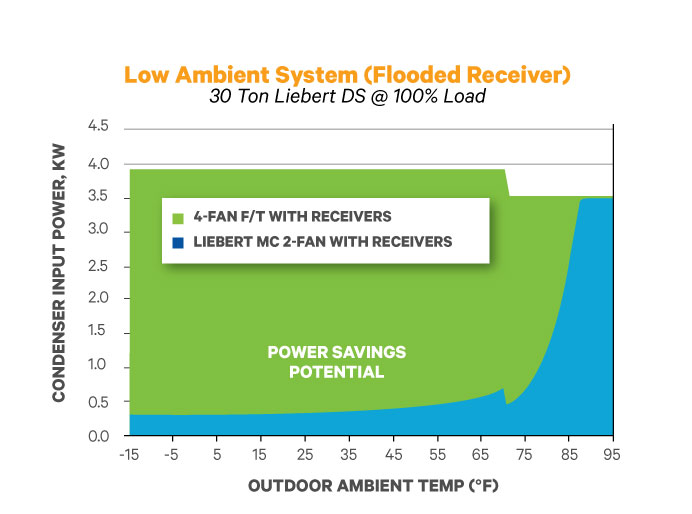

Reduces refrigerant volumes and decreases refrigerant charge levels in matched condensers, by more than 50% on condensers without flooded receiver systems and more than 20% on condensers equipped with flooded receiver systems
20-50% lighter installed weight
20-50% lighter installed weight
Caratteristiche

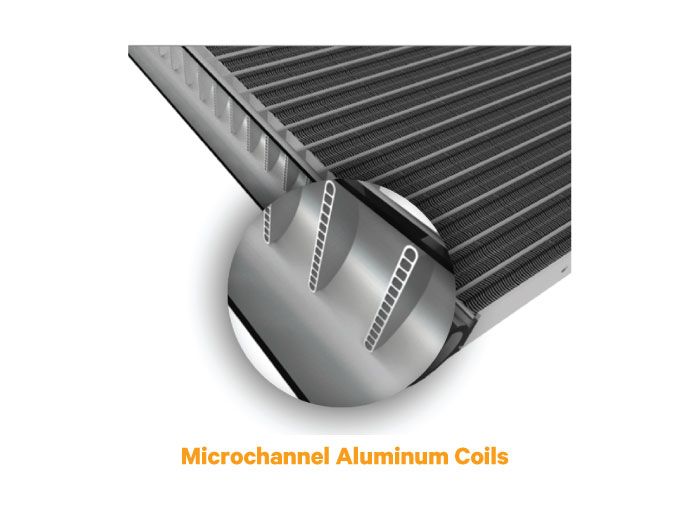

Extremely efficient micro-channel coils
Variable-speed EC fans
Variable-speed EC fans
Compatible with R-410A, R-407C and R-22 refrigerants
Multiple voltage and refrigerant configurations available to match heat removal needs
Specifiche
Liebert MC Microchannel Outdoor Condenser, 28 - 220kW
- Physical Characteristics
- Peso (libbre / kg)
- 359-1835
- Peso (libbre / kg)
- 163-832
- Altezza (in / mm)
- 63
- Altezza (in / mm)
- 160
- Larghezza (in / mm)
- 76-256
- Larghezza (in / mm)
- 193-650
- Profondità (in / mm)
- 36
- Profondità (in / mm)
- 91
