Famiglia di prodotti

Vertiv™ Trinergy™

Vertiv™ Trinergy™ is Vertiv’s most reliable, resilient and efficient UPS in its product class, building on a legacy of exceeding Tier IV data center power chain availability. With over 40 years of technical innovation and globally proven experience, the Vertiv™ Trinergy™ UPS sets new standards in performance, modularity, resilience, reliability, and efficiency.

Know more

Vantaggi principali

• Unmatched Reliability: Designed for unparalleled reliability and resilience, making it Vertiv’s most resilient UPS in its class. • High Density Power: Delivers more power in a single block compared to existing products, ideal for supporting high-density applications, including Artificial Intelligence. • Optimized High-Power Solution: Meets global standards with optimized performance and easy installation. • Modular Flexibility: Best-in-class modular UPS offering maximum flexibility, from room-based setups to pre-fabricated deployments. • Energy Source Integration: Ready to integrate with various energy and backup power sources, including lithium-ion and nickel-zinc batteries. • Global Availability: Designed, manufactured, and tested to be available worldwide. • Ease of Deployment: Features skid-mount and containerized power solutions for simple and quick deployment. • Rich digital experience: Service empowered by data across entire lifecycle with Life™ Advanced Incident Management and Condition Based Maintenance • Hot Serviceability: Ensures no interruption during maintenance or power upgrades, thanks to hot and easy serviceability.

Particolarmente adatto per:

Data Center/Colocation/Hosting

Famiglia di prodotti

Vertiv™ Trinergy™

Know more

Vantaggi principali

Particolarmente adatto per:

Data Center/Colocation/Hosting

Elevating performance, modularity, resilience, reliability and efficiency for your power needs. Vertiv™ Trinergy™ is the next-gen system built on a history of exceeding Tier IV data center power chain availability and over 40 years of technical innovation and global field-proven experience.

Panoramica delle specifiche del modello

Stampa Download E-mail

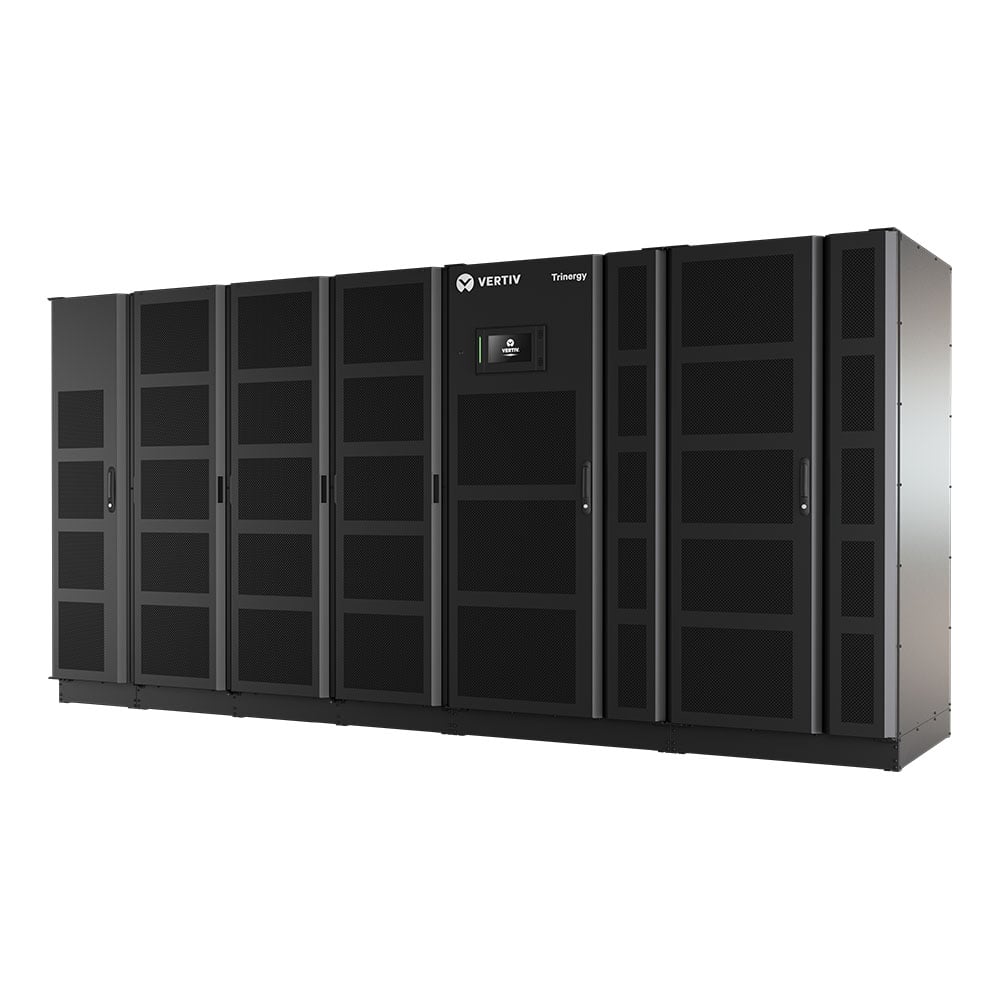

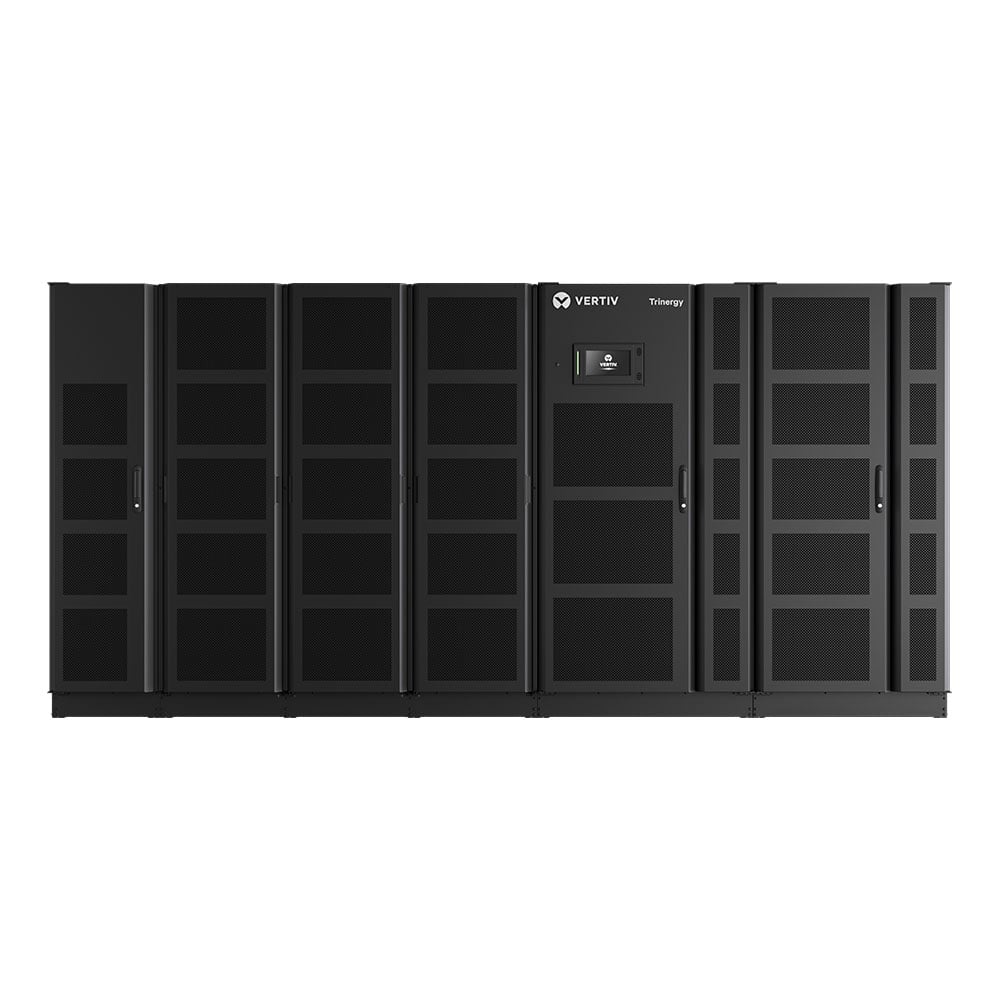

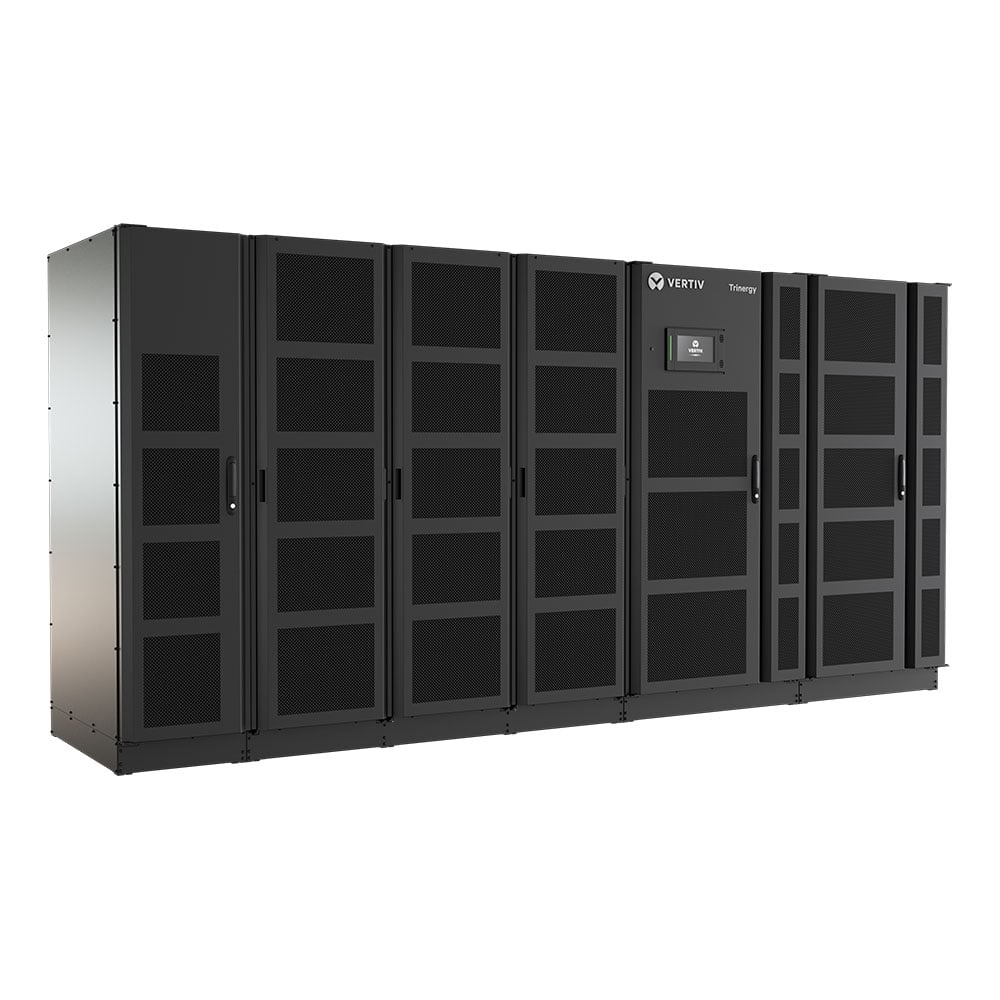

Vertiv™ Trinergy™ UPS 1500kW 480V
Modelli	Potenza nominale	Intervallo tensione d'ingresso	Intervallo tensione di uscita	Efficienza	Cablaggio	Altezza (in / mm)	Larghezza (in / mm)	Profondità (in / mm)	Peso (libbre / kg)
Vertiv™ Trinergy™ UPS 1500kW 480V	1500kVA/1500kW	480 (408 to 552), 3Ph+PE	480 (408 to 552), 3Ph+PE	≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode	Three and four wire electrical compatibility	2013 mm	201.22 in	41.26 in	10701 lbs
Vedi maggiori informazioni sul prodotto
Vertiv™ Trinergy™ UPS 2000kW 480V
Vertiv™ Trinergy™ UPS 2000kW 480V	2000kVA/2000kW	480 (408 to 552), 3Ph+PE 415 (353 to 477), 3Ph+PE+N	480 (408 to 552), 3Ph+PE 415 (353 to 477), 3Ph+PE+N	≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode	Three and four wire electrical compatibility	79.25 in	224.84 in	41.26 lbs	12024 lbs
Vedi maggiori informazioni sul prodotto
Vertiv™ Trinergy™ UPS 2500kW 480V
Vertiv™ Trinergy™ UPS 2500kW 480V	2500kVA/2500kW	480 (408 to 552), 3Ph+PE	480 (408 to 552), 3Ph+PE	≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode	Three and four wire electrical compatibility	79.25 in	251.65 in	41.26 in	13206 lbs
Vedi maggiori informazioni sul prodotto

* Per visualizzare la pagina di prodotto di uno specifico modello, fare clic sul nome del modello sopra.

Vantaggi

• Reliability and Resilience • High-Density Power Solution • Modular Flexibility • Seamless Energy Integration: • Advanced Monitoring and Easy Serviceability • Quick and easy deployment • Unmatched Reliability: Designed for unparalleled reliability and resilience, making it Vertiv’s most resilient UPS in its class. • High Density Power: Delivers more power in a single block compared to existing products, ideal for supporting high-density applications, including Artificial Intelligence. • Optimized High-Power Solution: Meets global standards with optimized performance and easy installation. • Modular Flexibility: Best-in-class modular UPS offering maximum flexibility, from room-based setups to pre-fabricated deployments. • Energy Source Integration: Ready to integrate with various energy and backup power sources, including lithium-ion and nickel-zinc batteries. • Global Availability: Designed, manufactured, and tested to be available worldwide. • Ease of Deployment: Features skid-mount and containerized power solutions for simple and quick deployment. • Rich digital experience: Service empowered by data across entire lifecycle with Life™ Advanced Incident Management and Condition Based Maintenance • Hot Serviceability: Ensures no interruption during maintenance or power upgrades, thanks to hot and easy serviceability.

Caratteristiche

• One Global Platform (CE & UL) • Modular Architecture, 500kVA Cores • Three Operating Modes • Integrated Back-feed Disconnect and DC Ground Fault Detection • Configurable building blocks • Increased Efficiency with high power solution • Extended Backup Time Configurations • 200kAIC Withstand Rating • Distributed Battery Configurations • Independent Core Controls • Self-Isolating Cores • Hot Serviceability at Power Cell Level • Black-Box Recorder • Vertiv™ LIFE™ Services with extended dataset • Simplified Firmware Update • Improved HMI User Experience • Unmatched Reliability: Designed for unparalleled reliability and resilience, making it Vertiv’s most resilient UPS in its class. • High Density Power: Delivers more power in a single block compared to existing products, ideal for supporting high-density applications, including Artificial Intelligence. • Optimized High-Power Solution: Meets global standards with optimized performance and easy installation. • Modular Flexibility: Best-in-class modular UPS offering maximum flexibility, from room-based setups to pre-fabricated deployments. • Energy Source Integration: Ready to integrate with various energy and backup power sources, including lithium-ion and nickel-zinc batteries. • Global Availability: Designed, manufactured, and tested to be available worldwide. • Ease of Deployment: Features skid-mount and containerized power solutions for simple and quick deployment. • Rich digital experience: Service empowered by data across entire lifecycle with Life™ Advanced Incident Management and Condition Based Maintenance • Hot Serviceability: Ensures no interruption during maintenance or power upgrades, thanks to hot and easy serviceability.

Brochure e schede tecniche

Vertiv™ Trinergy™ UPS Brochure SL-71331.pdf

Per vedere i download specifici per modello, è necessario andare nella pagina del prodotto di interesse selezionando il nome del modello nella scheda delle specifiche sopra.
