R48-2000C2-6

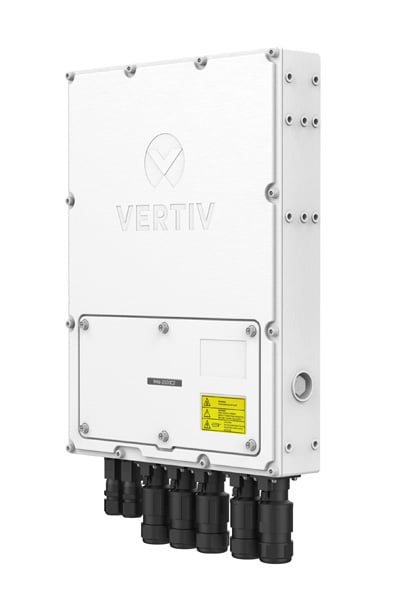

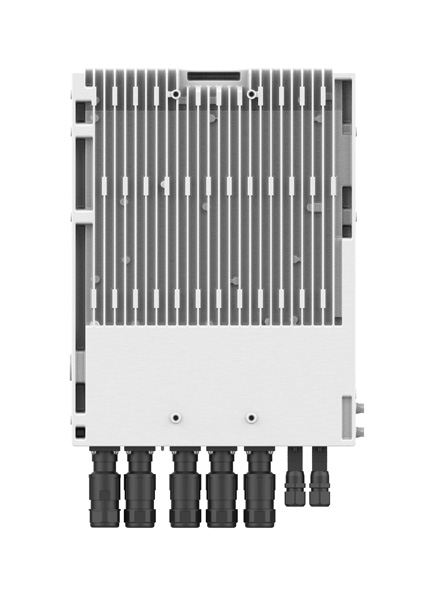

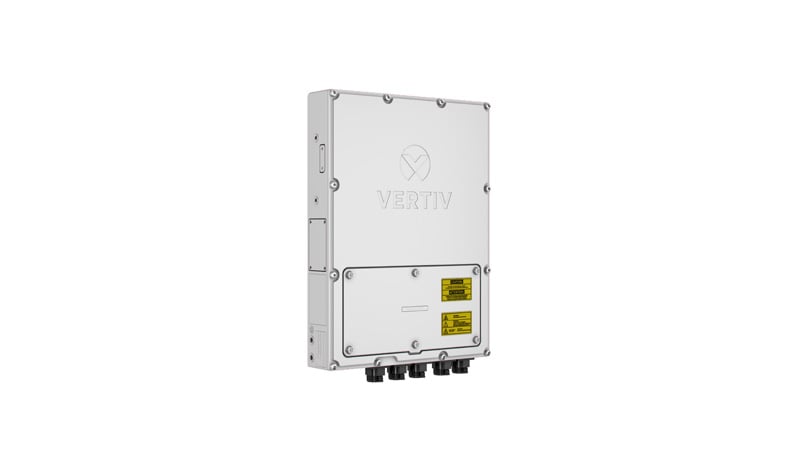

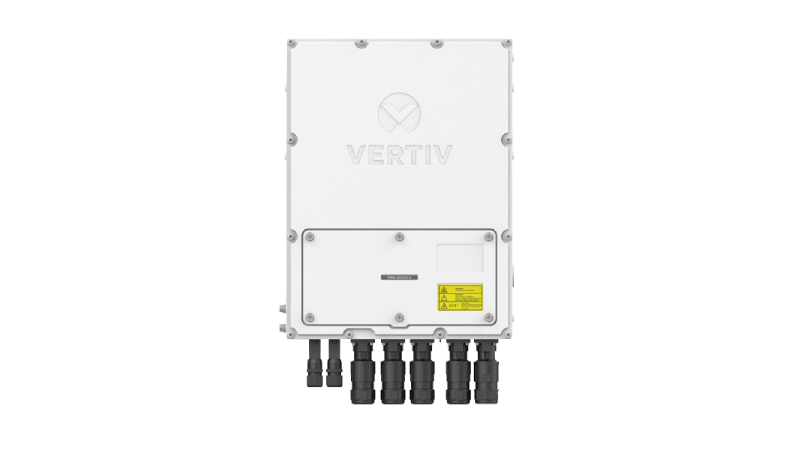

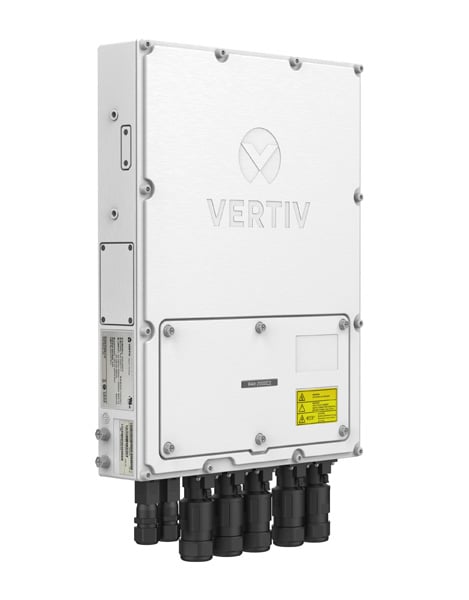

The Vertiv™ NetSure™ IPE R48-2000C2-6 outdoor DC power system is designed to support 5G applications including small cells, Distributed Antenna Systems (DAS) and radio access networks (RAN). The high-efficiency rectifier meets IP65 rating for use in harsh outdoor environments and is compatible with outdoor lithium batteries. Fanless cooling eliminates maintenance and results in silent operation. Quick connectors help minimize installation time. Ideal for rapid deployment in dense urban or remote rural telecom access networks.
Sauvegardez ce produit dans votre tableau de bord
Vous venez de sauvegarder ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour sauvegarder ce contenu afin de le consulter ultérieurement
R48-2000C2-6
The Vertiv™ NetSure™ IPE R48-2000C2-6 outdoor DC power system is designed to support 5G applications including small cells, Distributed Antenna Systems (DAS) and radio access networks (RAN). The high-efficiency rectifier meets IP65 rating for use in harsh outdoor environments and is compatible with outdoor lithium batteries. Fanless cooling eliminates maintenance and results in silent operation. Quick connectors help minimize installation time. Ideal for rapid deployment in dense urban or remote rural telecom access networks.
Avantages
Caractéristiques
Spécifications
The space-saving NetSure IPE outdoor rectifier supports telecommunications infrastructure in mobile networks and is ideal for use in network edge applications including 5G small cells, remote radio heads (RRHs), distributed telecommunications networks, and locations with high data demand, such as sports arenas, stadiums, public transport systems, airports, shopping and educational centers. Rapid deployment outdoors is easy since the unit is hardened and does not require a separate housing for protection against the elements.
- Product Overview
- Puissance
- 2000 W
- Intensité admissible
- 41.6 A
- Tension de sortie, nominale
- -54 VDC
- Tension d’entrée, nominale
- 200-240 VAC
- Type de système
- Outdoor system
- Input
- Tension d’entrée, nominale
- 200-240 VAC
- Input Voltage, Operational
- 85 VAC to 300 VAC
- Input Connections
- Quick Connectors
- Equipment Dimensions (H x W x D)
- 400x 300 x 62 mm / 15.7 x 11.8 x 2.4 inches
- Access
- Front access panel
- Output
- Tension de sortie, nominale
- -54 VDC
- Output Voltage, Operational
- -42 to -58 VDC
- Output Capacity
- 2000 W
- Peak Efficiency
- >93% at 100 VAC input, >96.3% at 230 VAC input
- Physical Characteristics
- Options
- Pole or wall mounting in flush or flag position
- Poids (lb/kg)
- 9.5 kgs
- Hauteur (po/mm)
- 400 mm
- Largeur (po/mm)
- 300 mm
- Profondeur (po/mm)
- 62 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Bluetooth enabled, wired Ethernet connection for SNMP
- Operating Temperature
- -40 to 75°C / -40 to +167°F
- Safety Compliance
- CE, 62368-1, 60950-22 (EN, IEC, UL)
- EMC Compliance
- EN55022, ETSI EN300 386, FCC CFR 47 Part 15 (Class B), GR-1089-CORE Issue 7:2017
