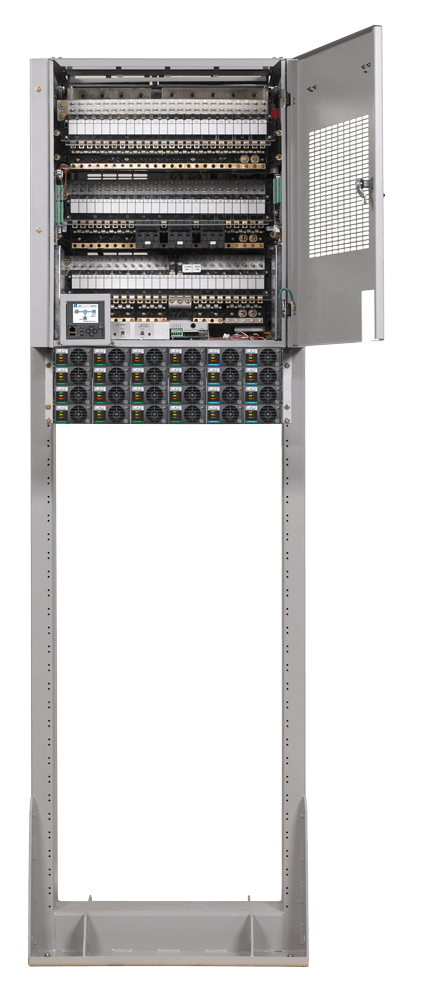

NetSure 721 DC Power System!

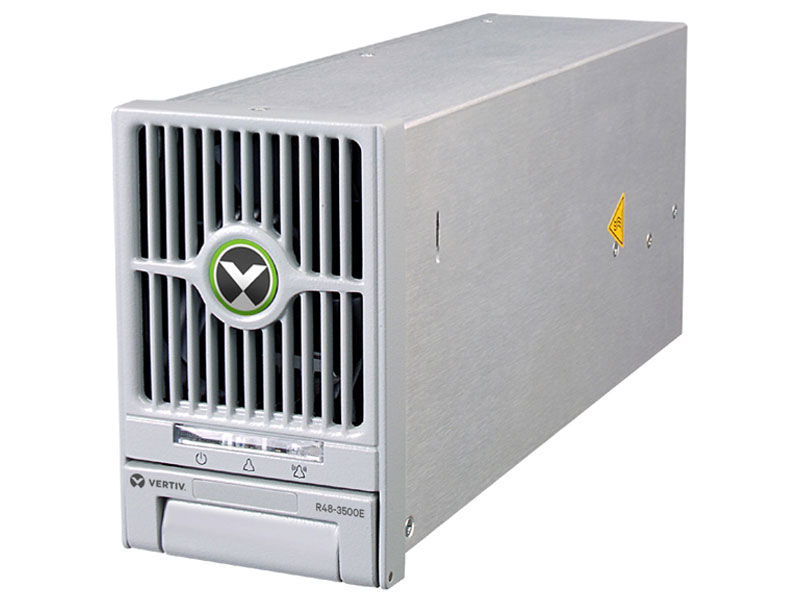

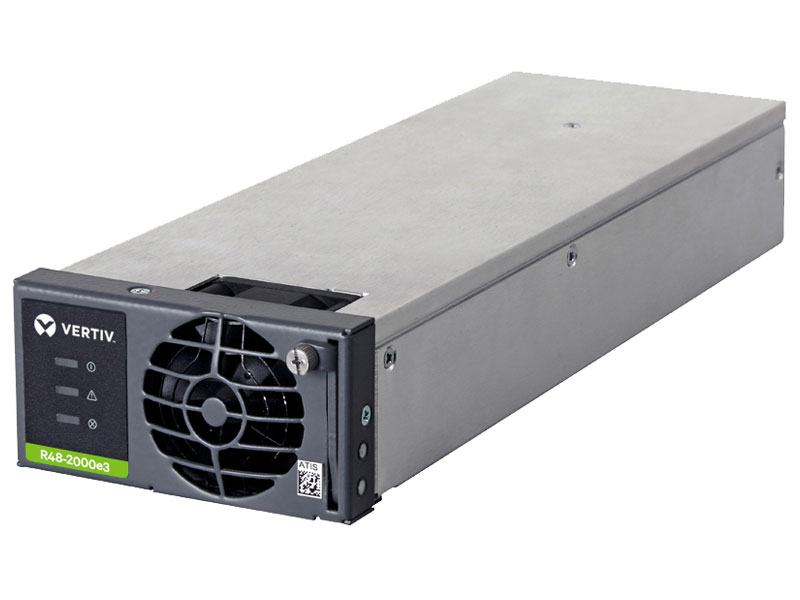

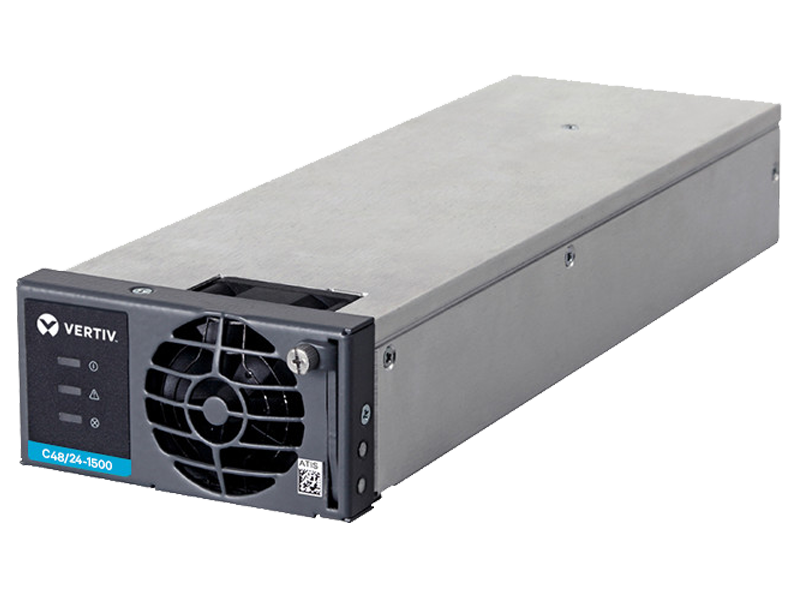

The modular NetSure 721 power system with 3500 watt or 2000 watt high efficiency rectifiers and 1500 watt DC to DC converters provides up to 4000 amps of current for –48 volt systems with up to 520 amps at +24 volts.
Sauvegardez ce produit dans votre tableau de bord
Vous venez de sauvegarder ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour sauvegarder ce contenu afin de le consulter ultérieurement
Adapté aux applications suivantes:
- Data CenterColocationHosting
- Telecom
Modèle de produit
NetSure 721 DC Power System!
The modular NetSure 721 power system with 3500 watt or 2000 watt high efficiency rectifiers and 1500 watt DC to DC converters provides up to 4000 amps of current for –48 volt systems with up to 520 amps at +24 volts.
Adapté aux applications suivantes:
- Data CenterColocationHosting
- Telecom
Avantages
Lower operating costs and reduce heat with high efficiency power conversion units
Easily adapt to evolving site powering needs with a dual voltage scalable design
Seamlessly integrate your Network Management System with multiple communication protocols (SNMP, Modbus, TL1)
Operate your power infrastructure safely and reliably with equipment that adheres to strict compliance standards
Caractéristiques
96.5% high efficiency eSure rectifiers
Modular design allows for incremental cost-effective system growth
NetSure Controller provides advanced system control and monitoring with an intuitive, easy-to-use interface
Dual Ethernet option provides a separate network connection and local craft port
Add plug-n-play rectifiers and converters without making adjustments; no system interruption
Front access allows for easy installation, operation and maintenance
NEBS Level 3 certified; UL Listed to UL subject 1801
Spécifications
NetSure 721 DC Power System!
- Product Overview
- Puissance
- 200 kW
- Intensité admissible
- 4000 A
- Tension de sortie, nominale
- -48 VDC
- Tension d’entrée, nominale
- 208 VAC to 277/480 VAC
- Type de système
- DC Power System
- Input
- Tension d’entrée, nominale
- 208 VAC to 277/480 VAC
- Input Voltage, Operational
- 180 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Tension de sortie, nominale
- -48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- Rectifier: 3500 W or 2000 W, Converter: 1500 W, Shelf: 21 kW or 12 kW @ 48 VDC, 4.5 kW @ 24 VDC, System: 200 kW @ 48 VDC, 12.5 kW @ 24 VDC
- Peak Efficiency
- 96.5%
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Poids (lb/kg)
- 90.9 kg to 295.5 kg
- Hauteur (po/mm)
- 2134 mm standard
- Largeur (po/mm)
- 584.2 mm mounting
- Profondeur (po/mm)
- 510.5 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management
- Operating Temperature
- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
Manuels
- UM582127000.pdf
- IM582127000
- PSD_NetSure-Control-Unit_UM1M830BNA_NA-English_User-Manual
- 1M820BNA ACU+ Controller User Manual
- UM1C48241500 Converter User Manual
- UM547490 SM-TEMP User Manual
- UM1R483500E Rectifier User Manual.pdf
- UM581127000 (Rev U)
- QS582127000 NetSure 721 Quick Start Guide
- UM582127000100 Netsure 7100 User Manual
- IM582127000100 Netsure 7100 Series Installation Manual
- R48-2000e3 Rectifier User Manual
- im559252-netsure-controller-ethernet-kit
Brochures et fiches techniques
- NetSure 7100 Data Sheet with eSure Power Extend Converters
- Vertiv™ NetSure™ NCU Controller Data Sheet
- PSD_ACU-Plus-Controller_EN_Data-Sheet
- R483500e-Rectifier-DataSheet
- Vertiv-eSure-Rectifier-R48-2000E3-DS-EN-GL-DC
- Vertiv-eSure-Converter-C48-24-1500-DS-EN-GL-DC-20211018.pdf
- PSD_Vertiv-NetSure-DC-Power-Services-Maintenance_NA-ENG_Datasheet
