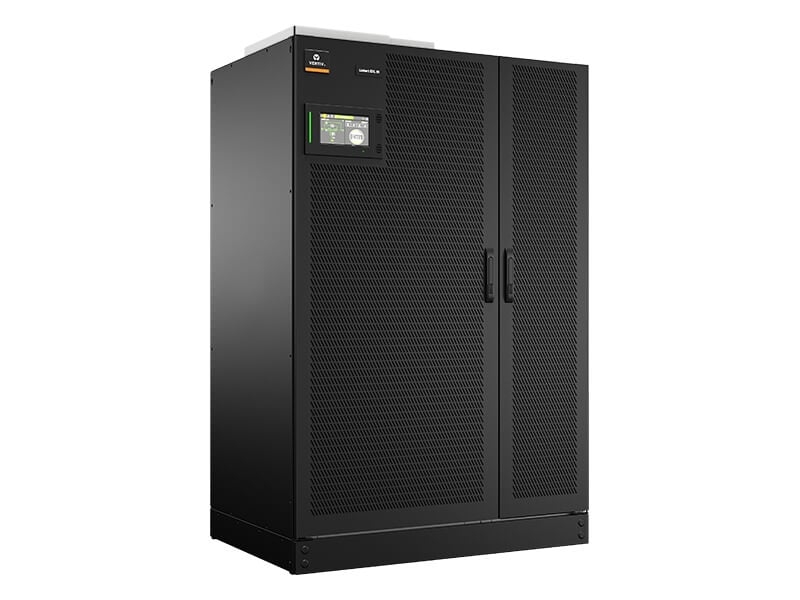

Liebert EXL S1, Optimizado para una eficiencia máxima
El UPS Liebert® EXL™ S1 es monolítico sin transformador. Este UPS se caracteriza por ocupar un espacio reducido en el área blanca y una alta densidad de potencia por metro cuadrado. Además, ofrece una excelente eficiencia operativa, una sólida protección del suministro eléctrico y una conexión inteligente en paralelo, lo cual optimiza el rendimiento a carga parcial y aumenta el ahorro en costos.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Government
Liebert EXL S1, Optimizado para una eficiencia máxima
El UPS Liebert® EXL™ S1 es monolítico sin transformador. Este UPS se caracteriza por ocupar un espacio reducido en el área blanca y una alta densidad de potencia por metro cuadrado. Además, ofrece una excelente eficiencia operativa, una sólida protección del suministro eléctrico y una conexión inteligente en paralelo, lo cual optimiza el rendimiento a carga parcial y aumenta el ahorro en costos.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Healthcare
- Government
Especificaciones
The Vertiv™ Liebert® EXL S1 UPS is available in 250-1200 kVA ratings and is optimized for maximum efficiency and power density. It offers the smallest footprint available for its kVA size range and is up to 60% smaller than some competitors. It is also significantly smaller than similar class UPS systems. For the conscientious buyer who needs every square foot to offer a positive ROI, such as for colocation providers, hosting and cloud businesses, the Liebert® EXL S1 UPS allows customers to either redeploy the saved space to implement more revenue generating IT equipment or reduce the actual design size of their equipment rooms, thus saving construction costs. Plus, the new Dynamic Online mode enables operating efficiency up to 99% without sacrificing availability. While in this mode, the inverter can instantaneously assume the load and maintain the output voltage within the IEC 62040 Class 1 specification, thus offering the same level of availability typically achieved in a double conversion operating mode. The new touchscreen control panel ensures Status At A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Liebert® Nform, Liebert® SiteScan™ and the Liebert® Trellis™ Platform as well as 3rd party BMS and DCIM systems. LIFE™ Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs. The Liebert® EXL S1 UPS is fully compatible with the lithium ion battery solutions offered by Vertiv.
|

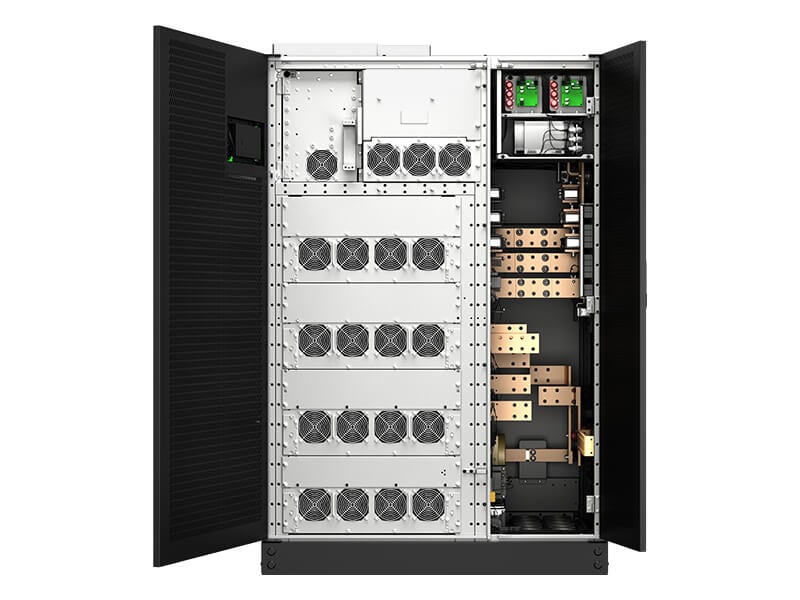

Liebert® EXL S1 250-400 kVA/kW
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 250, 300, 400 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 51.3 in | 36.0 in | 1970 lbs |
| Ver más información del producto | ||||||||
|

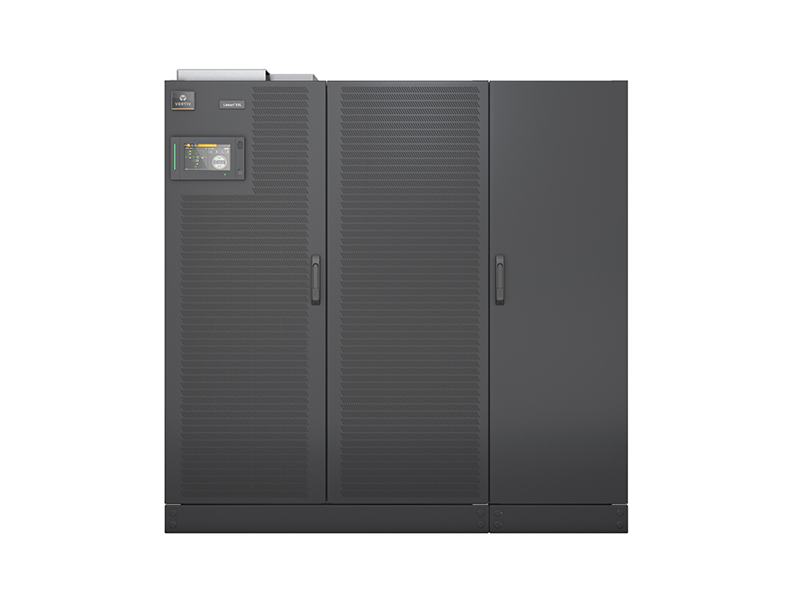

Liebert® EXL S1 UPS 625-800 kVA
|
||||||||
| 625, 750, 800 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 78.8 in | 36.0 in | 3508 lbs |
| Ver más información del producto | ||||||||
|
Liebert® EXL S1 1000-1200 kVA/kW
|
||||||||
| 1000, 1100, 1200 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 104.5 in | 36.0 in | 4667 lbs |
| Ver más información del producto | ||||||||
|
Liebert EXL S1 500-600 kVA/kW
|
||||||||
| 500, 600 kVA/kW | 480 volts | 480 volts | Up to 97% double conversion | 3-wire | 79.1 in | 63.0 in | 36.0 in | 2750 lbs |
| Ver más información del producto |
Beneficios
Características
- Liebert EXL S1 Touchscreen Control Panel User Manual
- Liebert Load Bus Sync Controller Installer User Guide for Liebert EXL S1 UPS SL-70438
- Liebert® EXL S1 UPS Operation & Maintenance Manual - Single & Multi-Module SL-26090
- Liebert® Large System 3-Phase UPS Battery System Installation Manual (SL-25418)
- Liebert® Battery Interface Box Product Specs-Installation Sheet (SL-25515)
- Vertiv™ Liebert® EXL S1 UPS 250kVA-1200kVA Installer GuideSL-26091
- Experience the Interactive Tool
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
Encuentre el contacto de su región
Contactos de soporte de productos
Cambiar
Preguntas Frecuentes
- Q
- Is this UPS configurable?
- A
- Yes, the UPS is fully configurable at time of order.
- Q
- Does this UPS work with lithium ion batteries?
- A
- Yes, it works with all manufacturers of lithium ion batteries sold by Vertiv.
- Q
- Does this UPS come with a communications card?
- A
- Yes, we provide a standard LIFE Services card or you may choose an optional Unity dual simultaneous protocol card.
- Q
- Does this UPS offer Eco-mode?
- A
- Yes, it offers Vertiv's unique Eco-mode which maintains battery charging and inverter readiness.
- Q
- Can I change display and alarm values or does a service technician have to do it?
- A
- Yes, our standard touchscreen control panel is fully user configurable for type of information displayed, security access codes and warning & alarm parameters.
