NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Centro de datos/Coubicación/Hosting
- Gobierno
- Militar, defensa, aeroespacial y misiles
NetSure 8200 (582140000)
The NetSure™ 8200 Series offers compact combination bays, complementary distribution bays, and stand-alone power bays that integrate easily with existing AC infrastructure. Designed to provide reliable -48 VDC power and distribution at core facilities, the digital NetSure 8200 plant leverages high-efficiency 200 amp rectifiers powered from 480 VAC or 208 VAC. This series offers versatile solutions to meet the needs of your central office, mobile switching office, cable headend, or data center deployment.
- Centro de datos/Coubicación/Hosting
- Gobierno
- Militar, defensa, aeroespacial y misiles
Beneficios
Características
Especificaciones
- Product Overview
- Capacidad
- 1 MW
- Capacidad de corriente
- 20,000 A
- Voltaje de salida, nominal
- 48 VDC
- Voltaje de entrada, nominal
- 208 or 480 VAC, 3-phase
- Tipo de sistema
- Power Bay
- Input
- Voltaje de entrada, nominal
- 208 or 480 VAC, 3-phase
- Input Voltage, Operational
- 408-528 VAC to 176-264 VAC
- Equipment Dimensions (H x W x D)
- Combo Bay List 101 and List 111 93.5"x24"x30",830 lbs., Combo Bay List 102 and List 112 84"x24"x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
- Access
- Front and rear
- Output
- Voltaje de salida, nominal
- 48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- 12,000 W rectifier

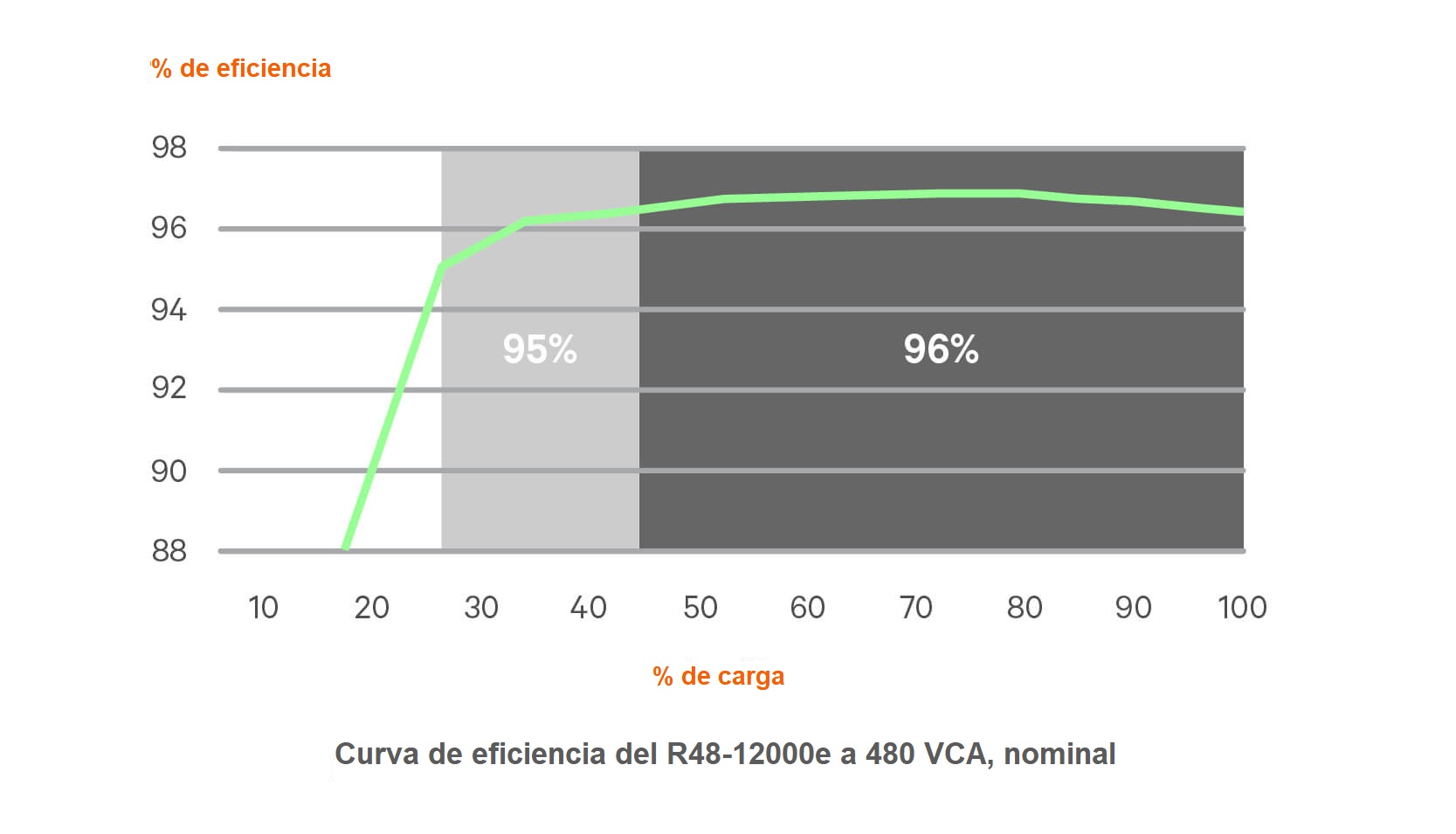

- Peak Efficiency
- 96.1% (480 VAC), 95.7% (208 VAC)
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL Fuses or GJ/218-Style breakers
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU controller
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
