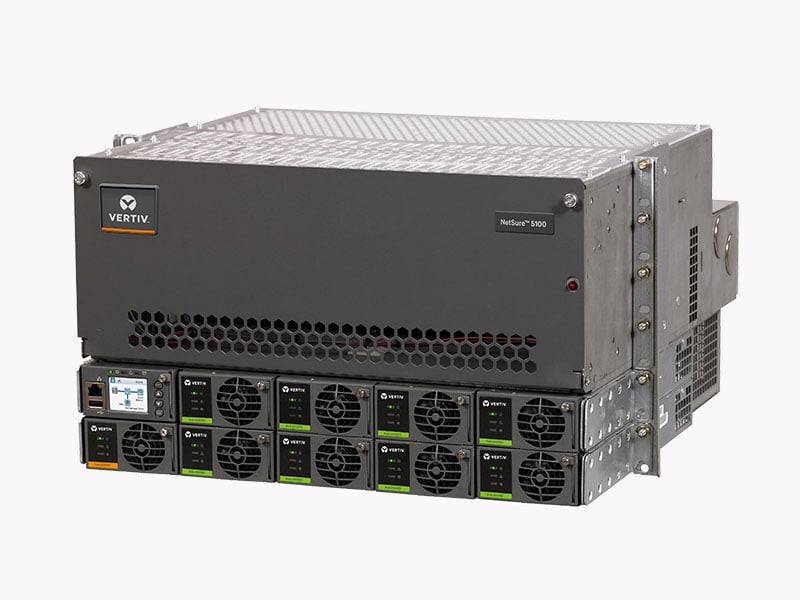

NetSure 5100 DC Power System
The NetSure 5100 Series, a compact -48/+24 volt 600 A DC power solution, features an advanced control unit, up to (29) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters or 2000 W solar converters.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Telecomunicaciones
NetSure 5100 DC Power System
The NetSure 5100 Series, a compact -48/+24 volt 600 A DC power solution, features an advanced control unit, up to (29) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters or 2000 W solar converters.
- Telecomunicaciones
Beneficios
Características
Especificaciones
The NetSure 5100 power system is a compact -48/+24VDC, 600/400 A DC power solution, features an advanced control unit, up to (29) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters or 2000 W solar converters, a single or dual row distribution cabinet, and hybrid and solar connectivity panels. The power system supports 19"W and 23"W rack mounting and is available in a number of configurations, designed to work with a wide range of applications. The distribution section supports up to (52) 1 A to 300 A circuit breakers or 1 A to 100 A TPS/TLS fuses. Options for battery disconnect breaker positions and dual voltage (-48 V/+24 V) breaker positions are available. Multiple LVD levels are supported, allowing load prioritization in up to two steps.
- Product Overview
- Capacidad
- 18 - 28.8 kW/1.5 - 19.2 kW
- Capacidad de corriente
- 40 - 600 A/50 - 400 A
- Voltaje de salida, nominal
- -48V DC, +24V
- Voltaje de entrada, nominal
- Single phase: 120 VAC, 208 VAC to 240 VAC
- Tipo de sistema
- System
- Input
- Voltaje de entrada, nominal
- Single phase: 120 VAC, 208 VAC to 240 VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC, Solar Converter: 120 VDC to 420 VDC, DC-DC Converter: 41 VDC to 58.5 VDC
- Input Connections
- Molex for AC cords or hard wiring, terminal strip or breaker (solar)
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 4U x 19" x 15" or 8U x 23" x 15", Module shelf: 1U x (19" or 23") x 15"
- Access
- Top or rear cabled with front and top access
- Output
- Voltaje de salida, nominal
- -48V DC, +24V
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC, -48V to +24V Converter: +24 VDC to +28 VDC
- Output Capacity
- 400 amps at -48 VDC plus redundancy, Up to 600 amps at -48 VDC plus redundancy, Up to 400 amps at +24 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.2%, -48V to +24V Converter: 95%, Solar Converter: 96%
- Load Circuit Breakers / Fuses
- 1-300 A E/M or E bullet nose breakers, 100-600 A E/M GJ Hybrid Panel Breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 300 A E/M or E breakers, 50A to 200A GJ Breakers, 3A to 100A TPS/TLS fuses
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Listed (cUL)
