DA250 , 250kW
The Liebert DSE 250 provides new levels of performance for colocation and cloud hosting facilities, with rapid deployment, low cost of ownership, high energy efficiency and low peak power. The system is ideal for raised or non-raised floor data centers. Its pumped refrigerant economizer uses no water and requires no outside air into the data center. A packaged condenser and refrigerant pump can be rooftop mounted, making it ideal for multi-story buildings.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Banca, finanzas y seguros
- Broadcast (transmisión por radio y/o TV) y entretenimiento
- Centro de datos/Coubicación/Hosting
- Gobierno
- Militar, defensa, aeroespacial y misiles
- Telecomunicaciones
DA250 , 250kW
The Liebert DSE 250 provides new levels of performance for colocation and cloud hosting facilities, with rapid deployment, low cost of ownership, high energy efficiency and low peak power. The system is ideal for raised or non-raised floor data centers. Its pumped refrigerant economizer uses no water and requires no outside air into the data center. A packaged condenser and refrigerant pump can be rooftop mounted, making it ideal for multi-story buildings.
- Banca, finanzas y seguros
- Broadcast (transmisión por radio y/o TV) y entretenimiento
- Centro de datos/Coubicación/Hosting
- Gobierno
- Militar, defensa, aeroespacial y misiles
- Telecomunicaciones
Beneficios
Características
Especificaciones

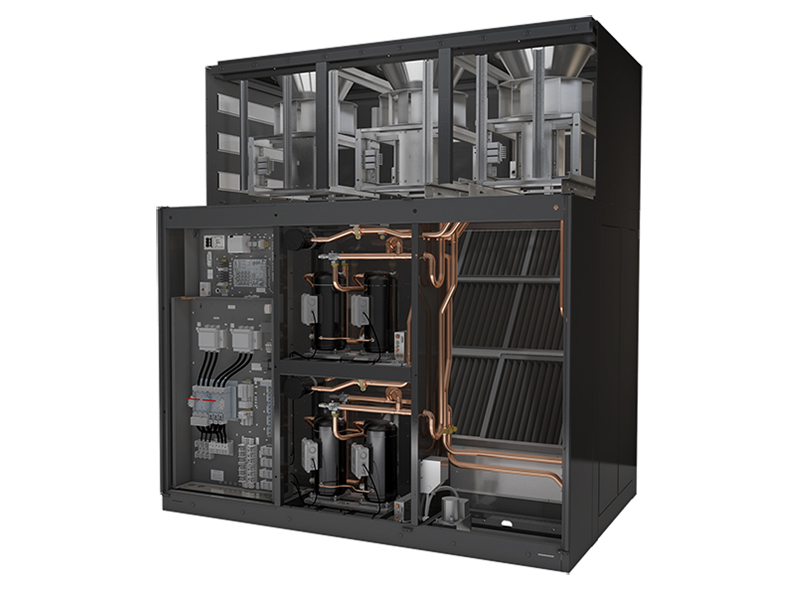

The Liebert DSE in 250kW capacity is a free cooling economization system with backup DX compressor, which achieves the high efficiency without using water. The system can achieve an annual operational PUE under 1.2., while eliminating water usage, cost and treatment. Its large condenser surface area minimizes operating and peak power to minimize generator backup or free up additional saleable IT power. Unlike heat wheels, it has no air leakage or volumetric displacement, eliminating the need for additional fan power or make-up air capacity. As a self-contained solution, Liebert DSE system is highly scalable for fast deployment and time to market. The Liebert DSE 250kW is comprised of a packaged pumped refrigerant economizer and a micro-channel condenser, plus an indoor CRAC unit. The system operates in free cooling or partial free cooling mode, depending upon outdoor temperatures. When criteria for economization are met, the compressors turn off and the refrigerant pump turns on to move the refrigerant through the system to reject the heat of the data center, using only a fraction of the power of a compressor. Automated economization, controlled by the advanced Liebert iCOM control, maximizes the number of free cooling hours by enabling economization whenever conditions warrant, including evening and night-time hours. It also eliminates the use of water. The Liebert DSE system was recently approved by the State of California as a prescriptive option for economization under Title 24. Additionally, the system protects against outside air contamination and reduces system wear and tear by eliminating air dampers and louvers.
Air-cooled free-cooling system with water-free economization, a rapidly deployable configuration and advanced Liebert iCOM thermal controls to optimize each unit and harmonize the operation of multiple units for temperature and airflow. Highly scalable and modular design accommodates changing IT loads and is ideal for upgrading outdated or inefficient cooling systems.
- Product Specifications
- Capacidad nominal total en kBtuh [kW]
- 853 (250)
- Net Sensible Capacity kBtuh [kW]
- 853 (250)
- Flujo de aire nominal [CFM]
- 37,000
- Total Capacity
- 853 (250)
- Net Sensible Capacity
- 853 (250)
- Nominal Airflow
- 37,000
- Airflow Direction

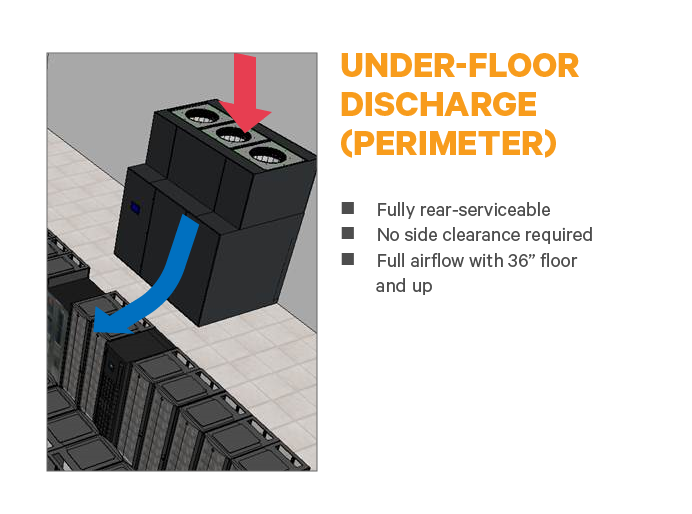

- Front and Bottom Discharge
- Heat Rejection Medium
- Refrigerant
- Controls and Monitoring
- Liebert iCOM unit controls
- Agency Approvals
- AHRI Certified
- Key Components
- CRAC, Packaged Condenser/Refrigerant Pump
- Physical Characteristics
- Peso (lbs / kg)
- 6285 lb
- Peso (lbs / kg)
- 2850 kg
- Alto (pulgadas / mm)
- 132 1/8 in
- Alto (pulgadas / mm)
- 3406 mm
- Ancho (pulgadas / mm)
- 120 1/8 in
- Ancho (pulgadas / mm)
- 3051 mm
- Fondo (pulgadas / mm)
- 83 1/2 in
- Fondo (pulgadas / mm)
- 2122 mm
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
