Beneficios
Características
Especificaciones

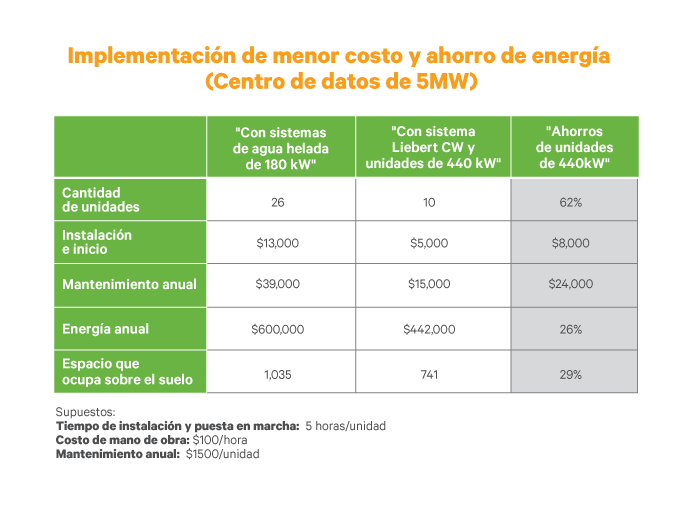

The Liebert® CW system combines the latest innovations in coil, valve and controls technologies for optimal protection and efficiency. Units in 440kW capacities significantly reduce the cost of deployment and maintenance and improve energy efficiency through an optimized chilled water coil design that can utilize higher entering water temperature (EWT). Multiple connection options provide greater flexibility during installation and commissioning. Right side and left side access for supply and return piping connections reduce the amount of floor space used, by enabling units to be situated closer together.
- Product Specifications
- Total Capacity
- 1,765 [517]
- Input Voltage (V/Phase/Frequency Hz)
- 460 / 3 / 60
- Nominal Airflow
- 60,000
- Airflow Direction
- Downflow
- Heat Rejection Medium
- Chilled Water
- Capacity Modulation
- Variable Speed EC Fans
- Controls and Monitoring
- Liebert iCOM Unit Control
- Physical Characteristics
- Peso (lbs / kg)
- 7024 lbs
- Peso (lbs / kg)
- 3186 kgs
- Alto (pulgadas / mm)
- 145 in
- Alto (pulgadas / mm)
- 3683 mm
- Ancho (pulgadas / mm)
- 138 in
- Ancho (pulgadas / mm)
- 3505 mm
- Fondo (pulgadas / mm)
- 60 in
- Fondo (pulgadas / mm)
- 1524 mm
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
