CW060, 60kW
The innovative Liebert CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers the industry's widest range of capacities, featuring the industry's most advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Banca, finanzas y seguros
- Centro de datos/Coubicación/Hosting
- Educación
- Gobierno
- Salud
- Venta minorista y mayorista
CW060, 60kW
The innovative Liebert CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers the industry's widest range of capacities, featuring the industry's most advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
- Banca, finanzas y seguros
- Centro de datos/Coubicación/Hosting
- Educación
- Gobierno
- Salud
- Venta minorista y mayorista
Beneficios
Características
Especificaciones

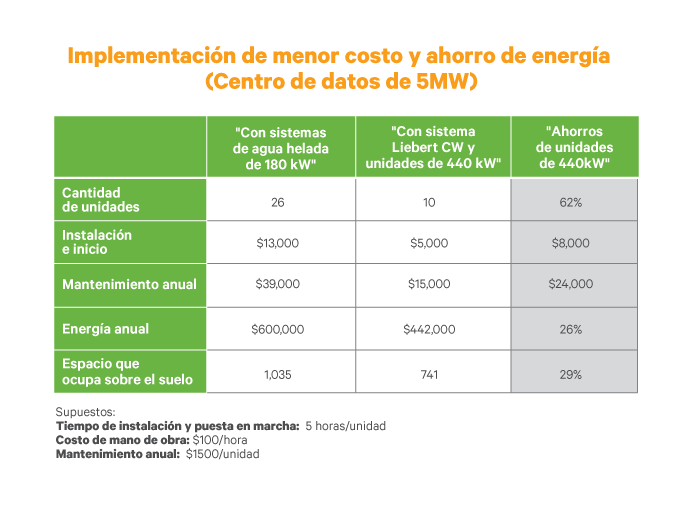

The Liebert CW system combines the latest innovations in coil, valve and controls technologies for optimal protection and efficiency. Units in 340kW and 440kW capacities significantly reduce the cost of deployment and maintenance and improve energy efficiency through an optimized chilled water coil design that can utilize higher entering water temperature (EWT).
- Product Specifications
- Capacidad nominal total en kBtuh [kW]
- 231 [67.7]
- Net Sensible Capacity kBtuh [kW]
- 205 [60.1]
- Flujo de aire nominal [CFM]
- 9200
- Total Capacity
- 231 [67.7]
- Airflow Direction
- Upflow and Downflow
- Heat Rejection Medium
- Chilled Water
- Capacity Modulation
- Variable Speed EC Fans
- Controls and Monitoring
- Liebert iCOM Unit Control
- Physical Characteristics
- Peso (lbs / kg)
- 1250 lbs
- Peso (lbs / kg)
- 567 kgs
- Alto (pulgadas / mm)
- 72 in
- Alto (pulgadas / mm)
- 1829 mm
- Ancho (pulgadas / mm)
- 74 in
- Ancho (pulgadas / mm)
- 1880 mm
- Fondo (pulgadas / mm)
- 35 in
- Fondo (pulgadas / mm)
- 889 mm
- Liebert® CW 38 to181 kW System Design Catalog SL-18061
- Liebert® CW 38-181 kW Guide Specification (SL-18061GS)
- Liebert CW305, 375, 415 kW System Manual
- Liebert® CW305, 375, 415 kW Guide Specification SL-70375
- Liebert® CWA Thermal Wall Guide Specification (SL-70701)
- BACnet Protocol Implementation Conformance Statement Reference Guide iCOM High Definition SL-70399 590-2224-501A 5902224501A
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
