PW017, 17kW
The Liebert PCW chilled water system offers the industry’s highest efficiency, protection and capacity per footprint for server room cooling. network closets and other small IT spaces.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Retail and Wholesale
PW017, 17kW
The Liebert PCW chilled water system offers the industry’s highest efficiency, protection and capacity per footprint for server room cooling. network closets and other small IT spaces.
- Retail and Wholesale
Benefits
Features
Industry’s highest capacity per footprint
Specifications
The Liebert PCW is highly configurable and available in a wide range of capacities. The units feature variable speed EC fans that reduce motor energy usage by 10-30%, compared to standard AC motors, and are more efficient than centrifugal blowers even when operating at 100% fan speed. The units feature motorized control valves that control water flow and are managed by the Liebert iCOM unit control to maintain the desired cooling capacity. The Liebert PCW offers unique, floor-level air discharge that reduces the mixing of hot and cold air to improve efficiency. Downflow models provide front, left side and right side discharge and upflow models provide front and rear return options.
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 58 [17]
- Net Sensible Capacity kBtuh [kW]
- 54.3 [15.9]
- Nominal Airflow [CFM]
- 3500
- Total Capacity
- 55.3 [16.2]
- Airflow Direction
- Upflow and Downflow
- Heat Rejection Medium
- Chilled Water
- Capacity Modulation
- Variable speed EC fans
- Controls and Monitoring
- Liebert iCOM Unit Controls
- Physical Characteristics
- Weight
- 600
- Weight
- 272
- Height
- 77 9/16
- Height
- 1970
- Width
- 34 1/2
- Width
- 876
- Depth
- 34 5/8
- Depth
- 879
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Related Products And Services
Manage and control data center cooling units to improve protection, automate cooling system routines and simplify maintenance.

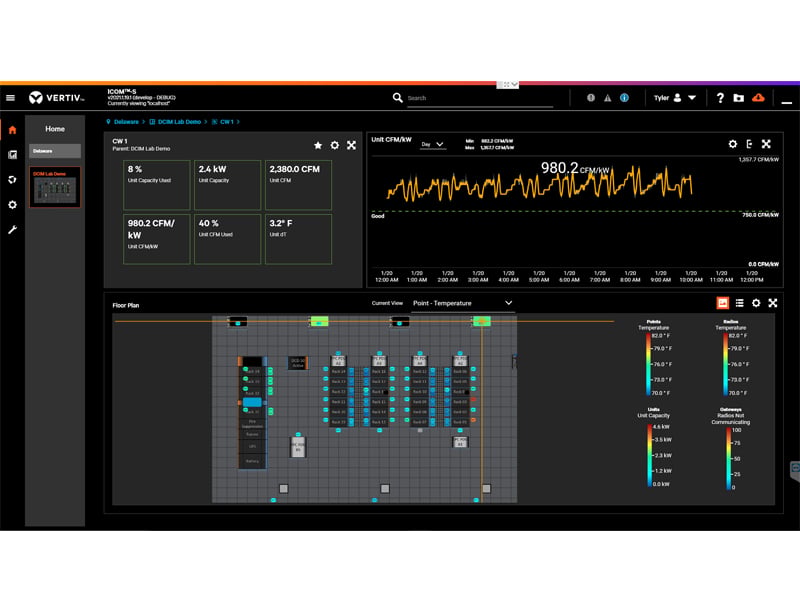

Manage and control your entire data center cooling system for up to 35% higher efficiency, improved protection and greater productivity. Liebert® iCOM™-S provides a single point for managing your entire cooling infrastructure and gaining quick access to actionable data, system diagnostics and trending.
