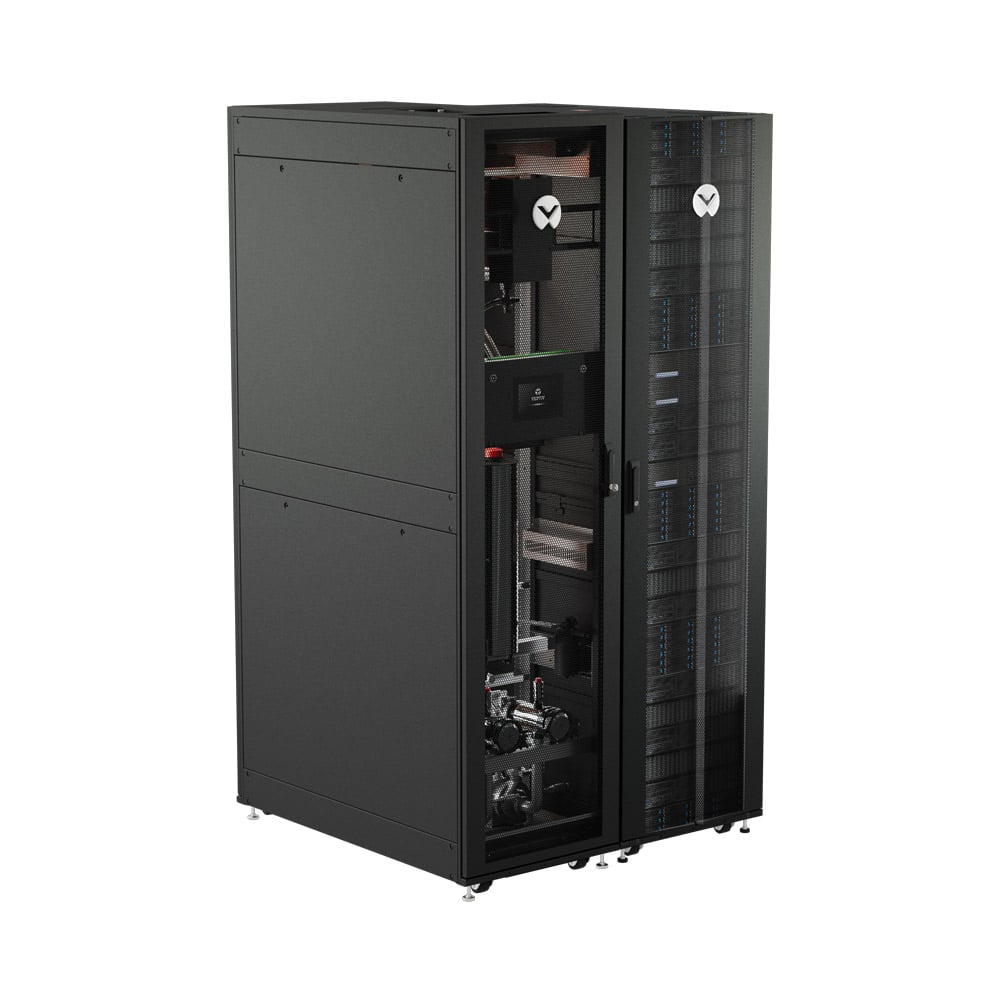

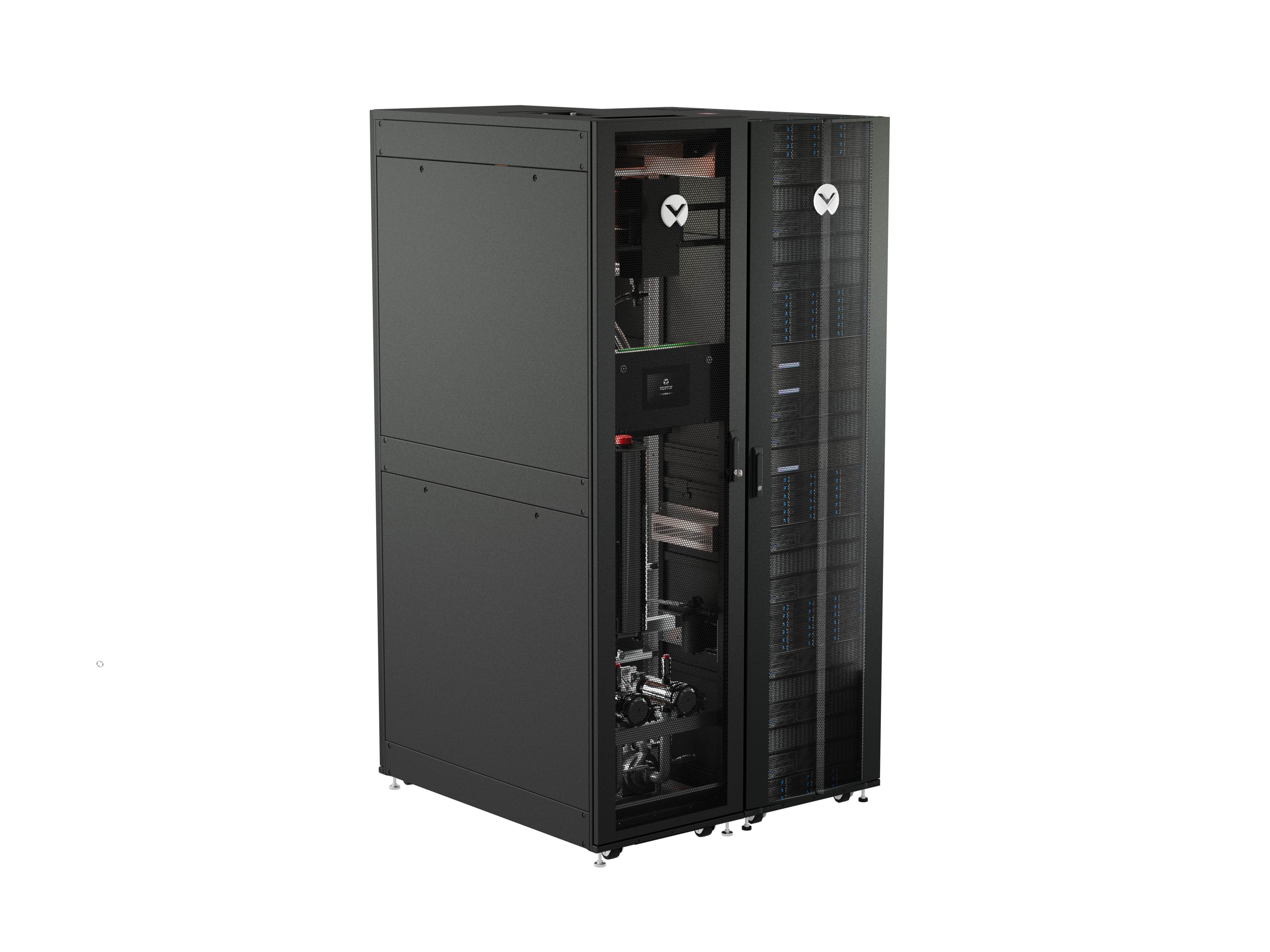

Vertiv™ Liebert® XDU070 Coolant Distribution Unit

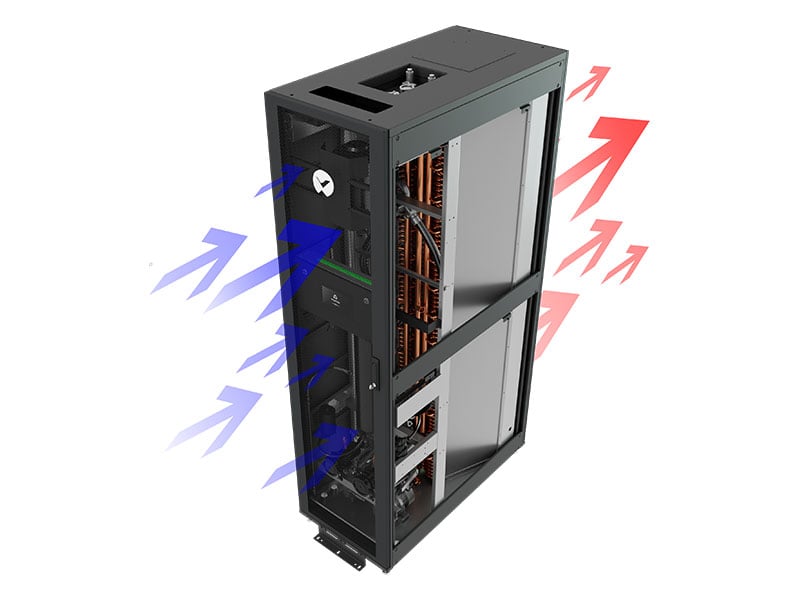

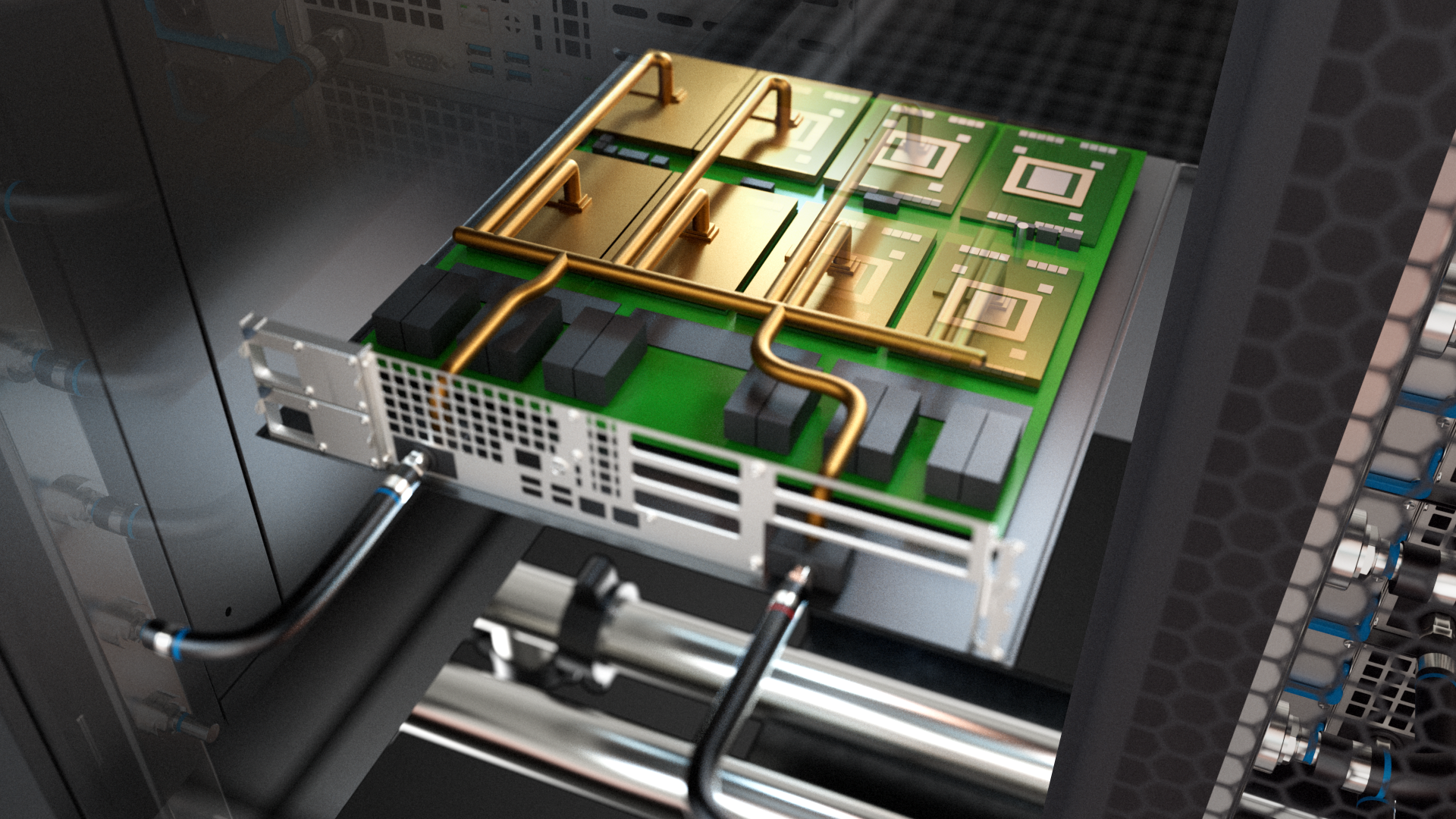

Designed to remove barriers to liquid cooling in an air-cooled environment the Vertiv™ Liebert® XDU070 Coolant Distribution Unit is a liquid-to-air heat exchanger for direct to chip cooling applications that offers easy, cost-effective deployment in any data center. The Liebert® XDU070 operates without facility chilled water and provides an isolated secondary fluid network, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
- Data Center/Colocation/Hosting
- Education
- Healthcare
- Government
- Retail and Wholesale
Benefits
Features
Specifications

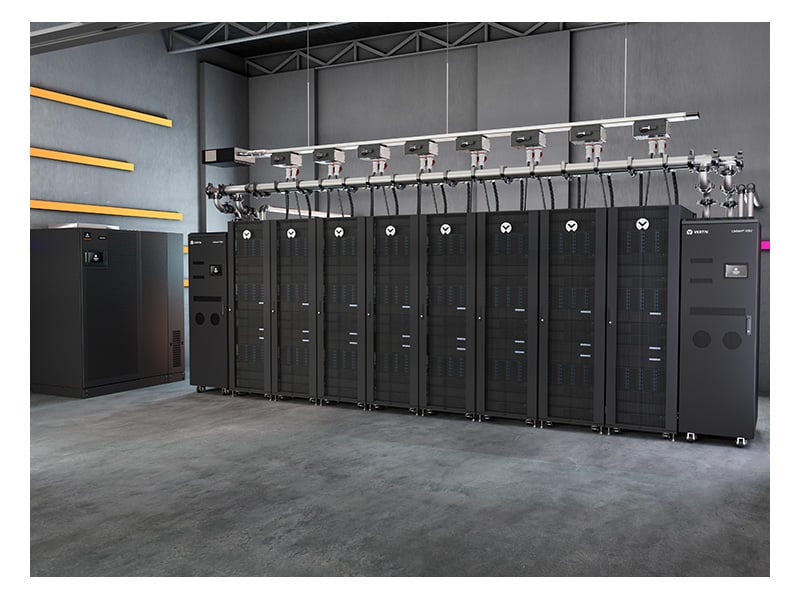

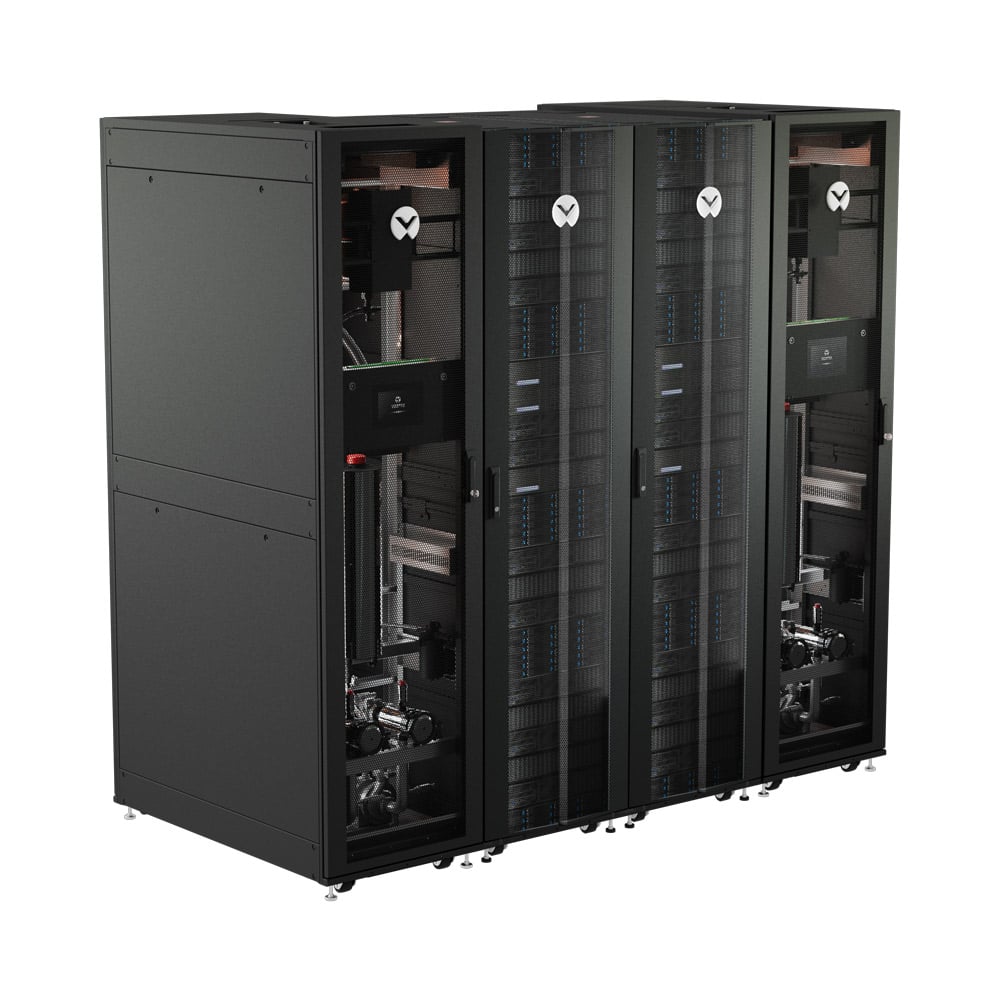

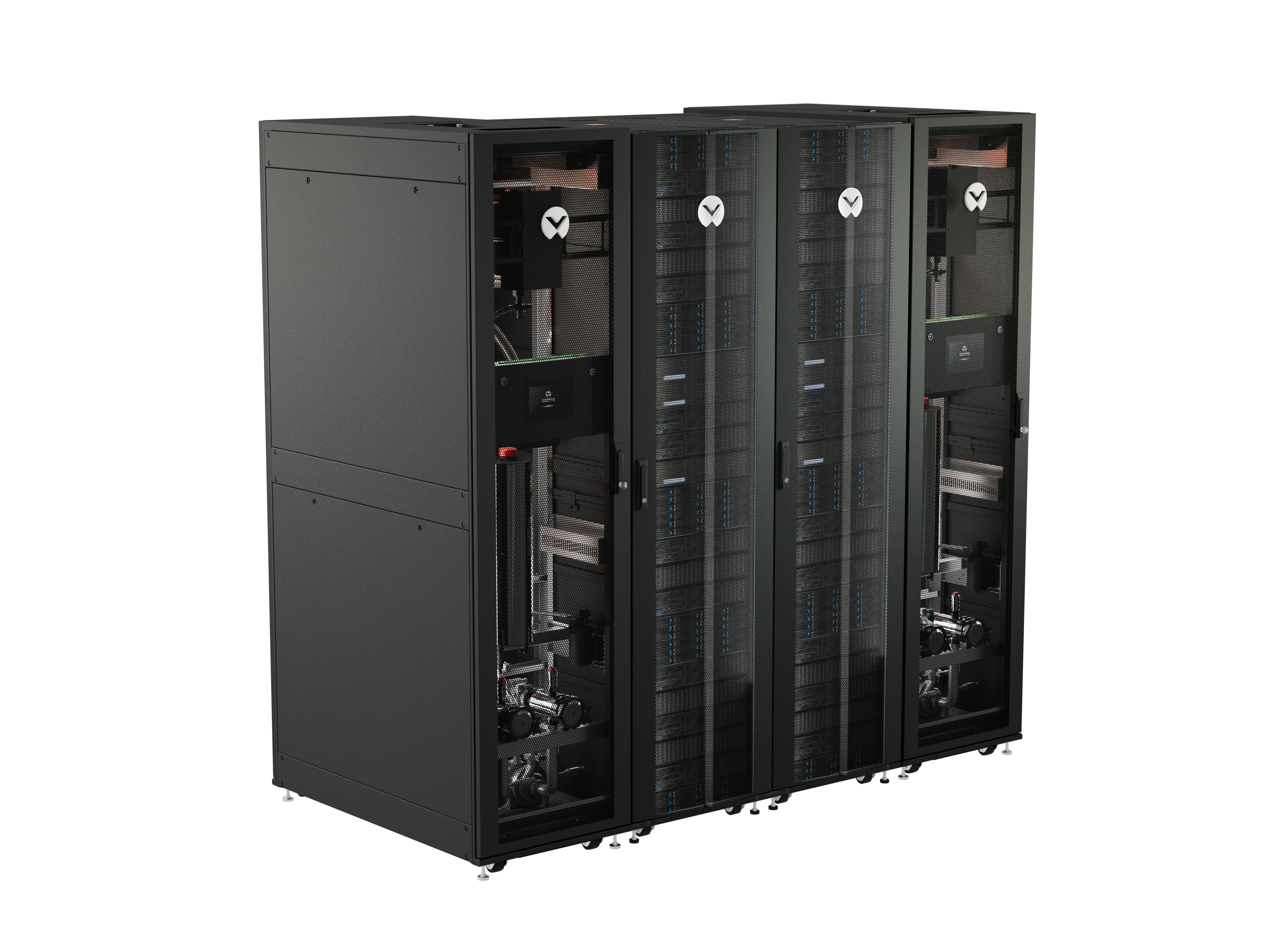

As data centers adopt liquid cooling, fitting in new cooling distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ XDU simplifies your work with the flexibility to support rear door heat exchangers or direct to chip liquid cooling. The Vertiv XDU’s compact footprint allows for placement in the row, allowing you to easily distribute coolant to efficiently manage power-dense applications up to 70kW. Compact footprint for deployment flexibility within the row; Efficient Cooling Distribution to manage power-dense hot spots and up to 70kW; Precise Temperature Control to eliminate thermal shock for server CPU and GPUs; Redundant Pumps and Dual Power Feeds for optimizing reliable operation; Remote Monitoring available through communications with HTTP, SNMP, RS-485 Modbus, Modbus IP.
- Product Specifications
- Net Sensible Nominal Capacity kBtuh[kW]*
- 70.0 kW at 11C approach temperature difference
- Nominal Airflow Data Center Air (CFM, m3/H)
- 10,100 m3/h (5,945 CFM)
- Controls and Monitoring

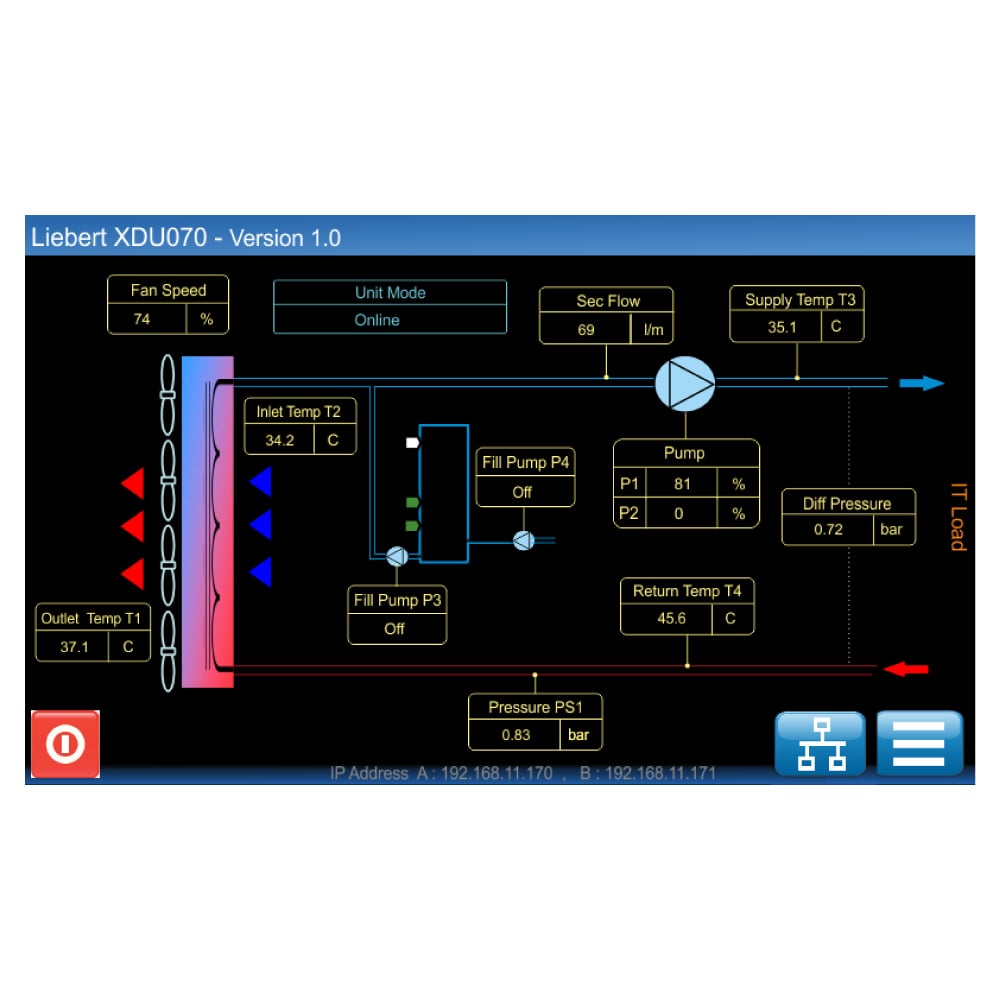

- Color touch screen display, Communication via Modbus RTU (RS485) and TCP/IP
- Key Components

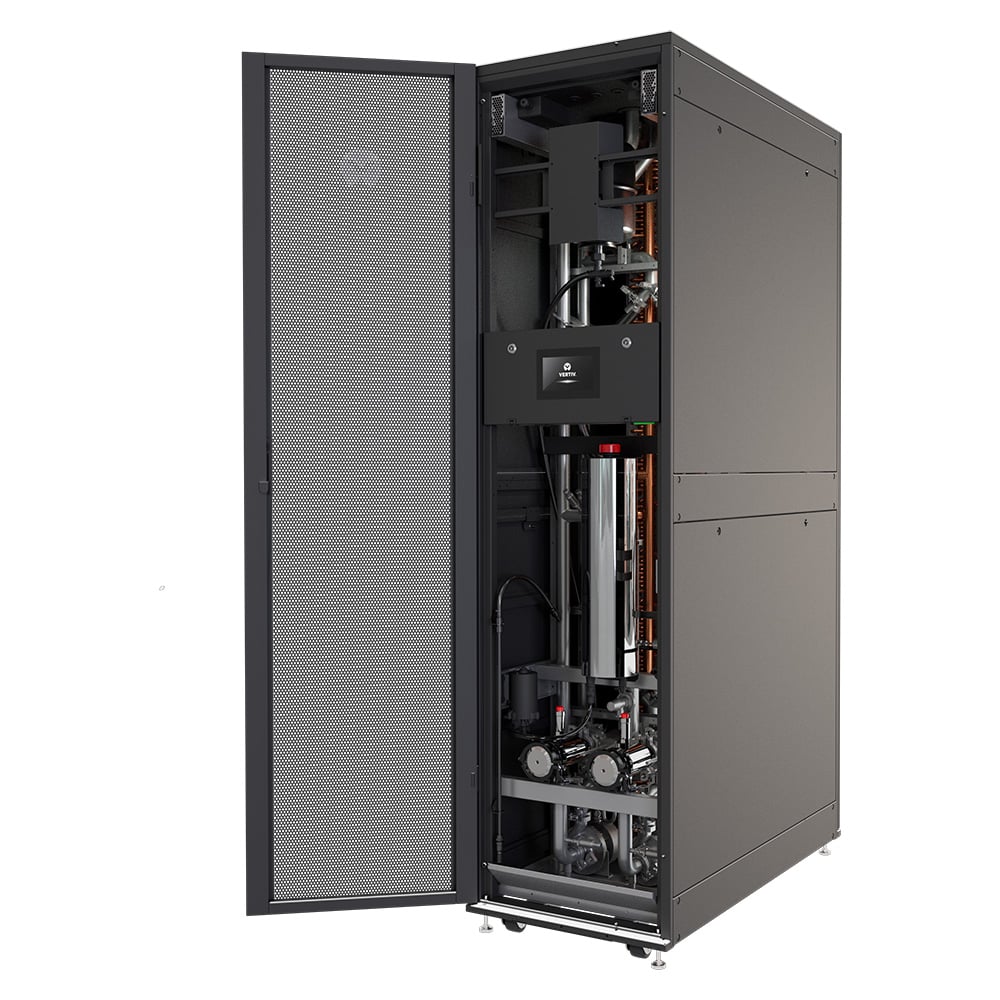

- Redundant pump design, variable-speed pump controls, and electronically commutated (EC) fans
- Physical Characteristics
- Weight
- 899 lbs
- Weight
- 408 kg
- Height
- 91 in
- Height
- 2300mm
- Width
- 24 in
- Width
- 600 mm
- Depth
- 48 in
- Depth
- 1200 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
