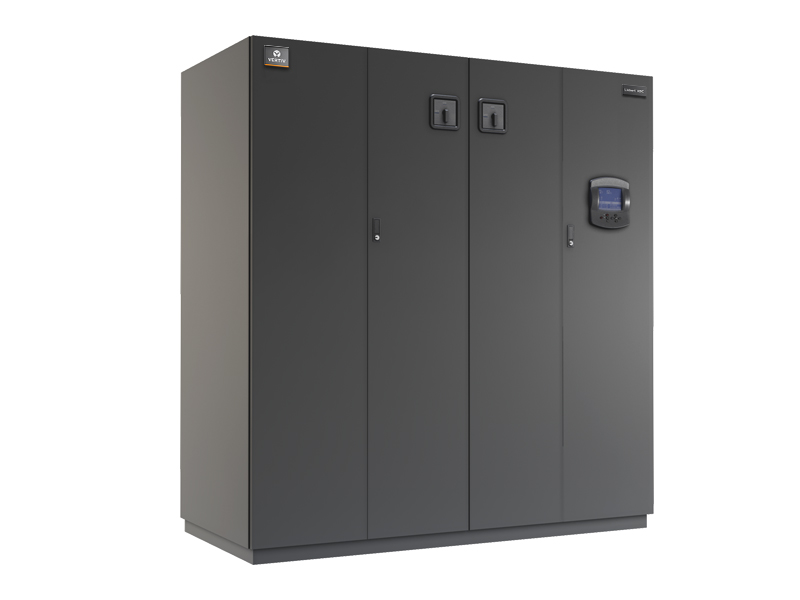

Liebert XDC, XD Chiller and Pumping Unit, 160kW
The indoor Liebert® XD Pumping and Chiller Units include the Liebert® XDP and the Liebert® XDC units. These refrigerant-based systems support Liebert XD System spot/zone data center cooling modules, including the Liebert® XDO, Liebert® XDV, Liebert® XDH, and Liebert® XD CoolFrame units. The Liebert XDP is used between the cooling units and an associated heat rejection system, while the Liebert XDC is used between the cooling units and a chilled water system.
Quick Access
Specifications
Technical Specifications
Liebert XDC, XD Chiller and Pumping Unit, 160kW
- Product Specifications
- Net Sensible Nominal Capacity kBtuh[kW]*
- 160 kW / 46 Ton (60 Hz); 130 kW / 37 Ton (50 Hz)
- Input Voltage (V/Phase/Frequency Hz)
- 460 V, 3 ph, 60 Hz; 380/415 V, 3 ph, 50 Hz
- Physical Characteristics
- Weight
- 1800 lbs
- Weight
- 817 kg
- Height
- 78 in
- Height
- 1981 mm
- Width
- 74 in
- Width
- 1879 mm
- Depth
- 34 5/8 in
- Depth
- 879mm
Brochures and Data Sheets
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Liebert XDC, XD Chiller and Pumping Unit, 160kW
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship
Benefits
Energy efficient
Efficient use of floor space efficient
Highly scalable
Easy to install
Features
Available in nominal capacities of 160kW (46 Tons) and 130kW (37 Tons) for 50Hz applications.
Cools more than 500W/sq. ft.
Includes enclosure, pumps, heat exchanger, receiver tank, controls, valves and piping in a packaged unit
Uses pumped refrigerant
