Liebert® DCD Water-Cooled Active Rack Door, 47kW
Specifications
Technical Specifications

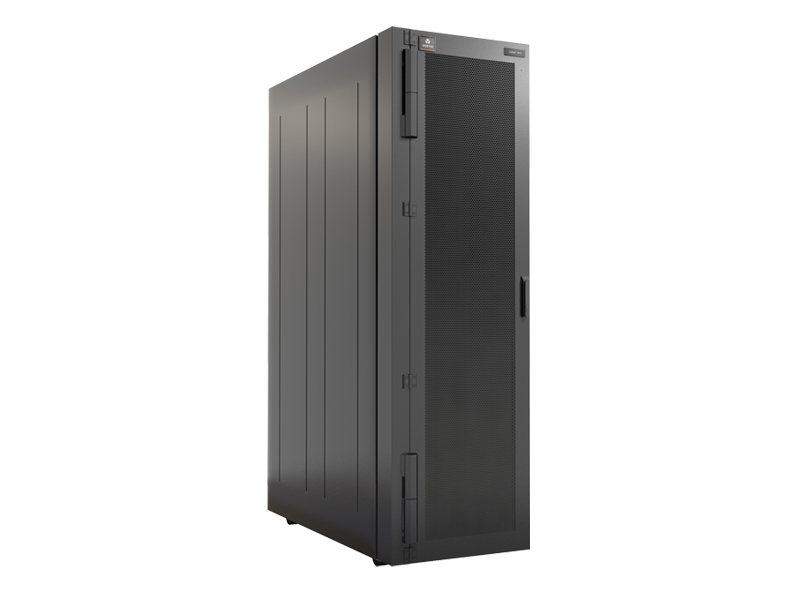

Liebert® DCD Water-Cooled Active Rack Door, 47kW
The Liebert® DCD chilled-water cooling unit was designed specifically for high heat density applications where the challenges of reducing energy consumption and increasing processing capabilities are the top priority for data center managers. The active fan module mounts on the DCD passive rear door and aids the server fans in properly removing the heat load from the high-density application. The Liebert DCD brings cooling directly to the source and takes up zero additional IT floorspace, all while providing 47kW of room-neutral cooling using a chilled-water heat exchanger. The Liebert® DCD 47kW model was specifically designed to address applications where higher water temperatures are required while still providing sufficient cooling to critical IT. With optional accessories such as a monitoring and display kit, it’s even easier to remotely control the unit and optimize the system efficiency, reducing operational costs in the data center. The optional automatic transfer switch helps to ensure high cooling availability and reliability. The DCD can be supplied by either the existing chilled water system or by a coolant distribution unit, such as the Liebert® DCP, providing additional flexibility during installation.
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship- Physical Characteristics
- Weight
- 310 lbs
- Weight
- 141 kgs
- Height
- 76 7/8 in
- Height
- 1954 mm
- Width
- 23 5/8 in
- Width
- 600 mm
- Depth
- 13 3/5 in
- Depth
- 346 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
