Product Family

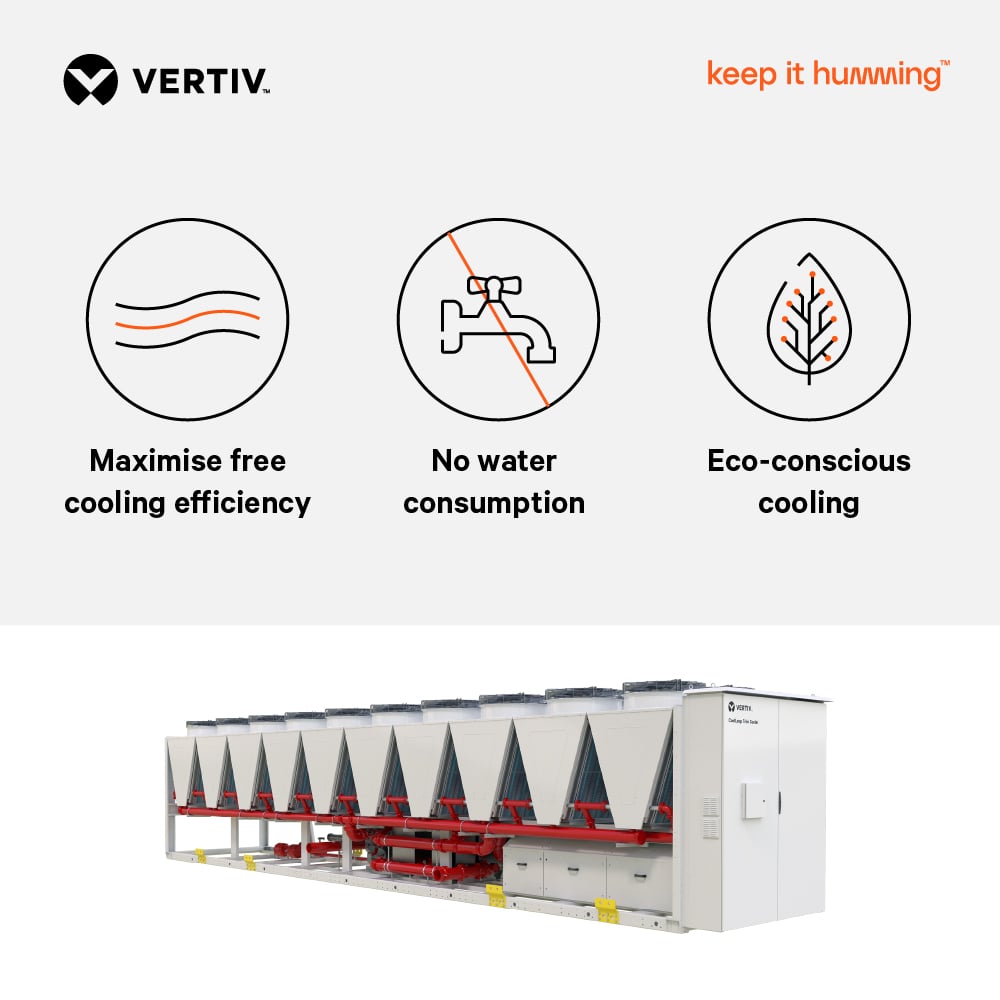

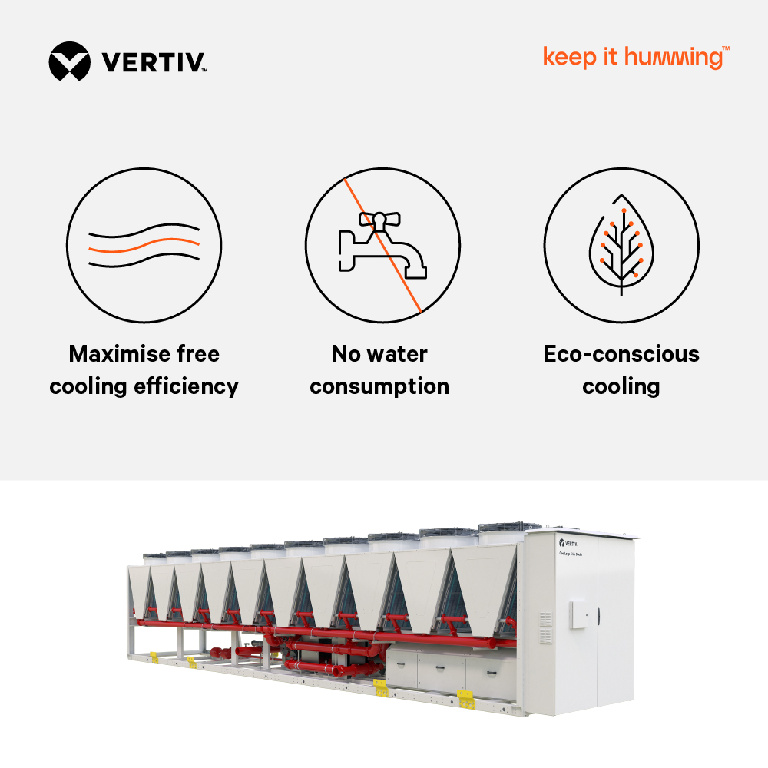

Vertiv™ CoolLoop Trim Cooler - The free cooling AI-ready cooler from 850 to 2600 kW

The Vertiv™ CoolLoop Trim Cooler is the free cooling AI-ready, densification-ready, environmentally responsible solution specifically designed to prepare data centers for growing densification driven by AI advancements.

Get Brochure
Key Benefits
​AI & Densification-ready with an efficiency increase of nearly 70%.
Up to 2.6 MW of cooling capacity, reaching 3 MW in the air-cooled configurations.
Compact design with a net gain of over 40% cooling capacity.
Liquid cooling-ready supporting both air- and hybrid- cooled configurations.
Free cooling optimization minimizing power consumption to handle operational peaks.
Compliant with major current and future bans and EU F-Gas regulations for years to come.
R1234ze inverter driven technology to maximise efficiency.
Global solution, suitable for data centers in various climates around the world.
Best Suited For:
  • Banking
  • Financial and Insurance
  • Data Center/Colocation/Hosting
  • Government
  • Manufacturing

Benefits

AI & Densification-ready with a future-oriented mindset: Supports AI-driven densification advancements. Achieve up to 1.087 pPUE, with an efficiency increase of nearly 70%*.
Compact and efficient design: Net gain of over 40% cooling capacity without increasing the overall footprint.
Liquid cooling-ready: Supporting both air- and hybrid-cooled configurations combining both air and liquid cooling capacity.
Eco-conscious cooling: Compliant with major current and future bans and EU F-Gas regulations for years to come, lowering CO2e emissions and granting maximum seasonal efficiency, especially at partial load.
Free cooling optimization: Handle operational peaks while minimizing power consumption, providing increased flexibility.
Improved efficiency: The inverter-driven technology used for compressors, EC fans, and user pumps.
Space efficiency: No additional roof space occupancy is required.
Global flexibility for data centers worldwide: Suitable for data centers in various climates around the world.

*Air-cooled IT load of 10 MW running at 80% capacity with water temperatures at 20°C achieving a pPUE of 1.15 with standard chillers. At a higher temperature of 35°C with Vertiv™ CoolLoop Trim Cooler achieving a higher pPUE estimated at 1.087 and an efficiency increase of nearly 70%.

Features

Up to 40°C supply water temperature.​
Up to almost 3 MW** of cooling capacity in a single, compact frame.

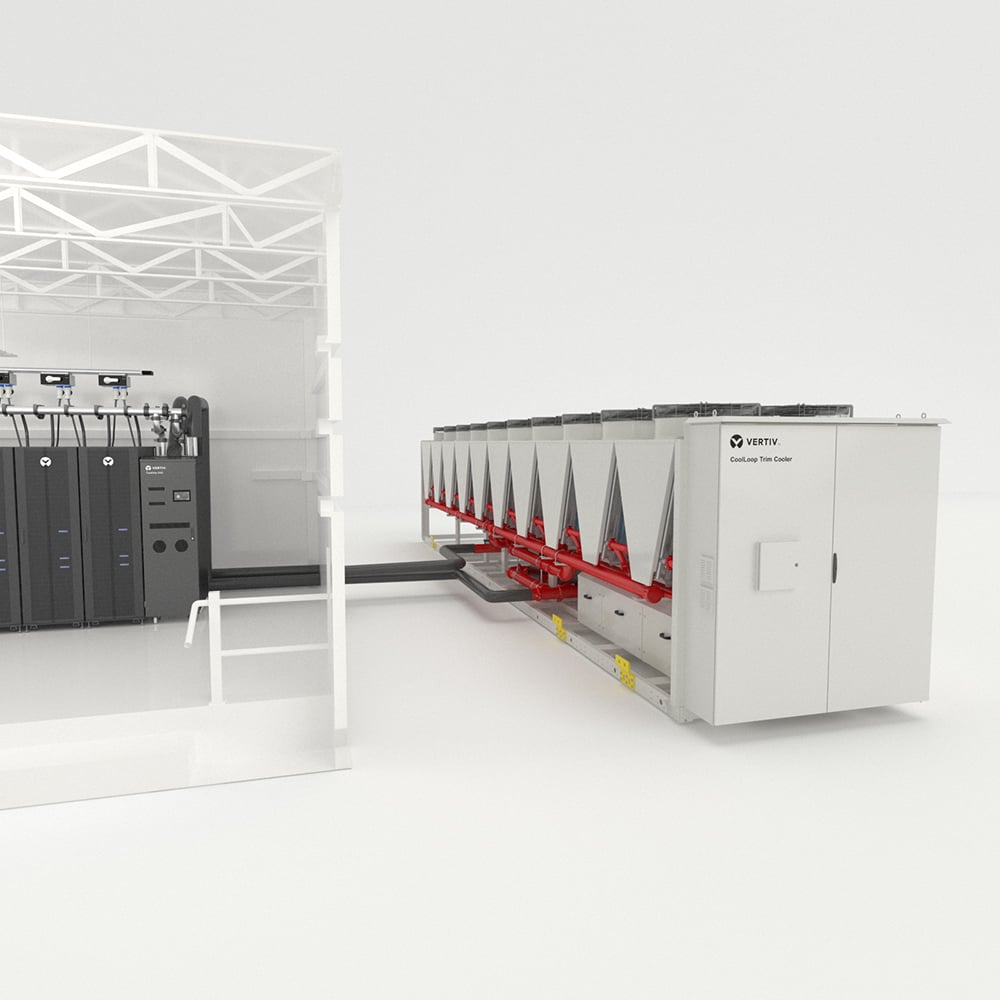

Easy coupling with Vertiv™ CoolChip CDU and Vertiv™ CoolCenter Immersion systems.​
Very low-GWP R1234ze refrigerant (GWP = 7 as per IPCC AR4).
Free cooling coils optimized for high ambient temperatures incorporating microchannel heat exchangers for superior heat transfer.
Inverter-driven technology.
Active harmonic filters in the electrical panel.
Wide range of external temperatures from -20°C to over 52°C.

**In the air-cooled configuration
