Product Model

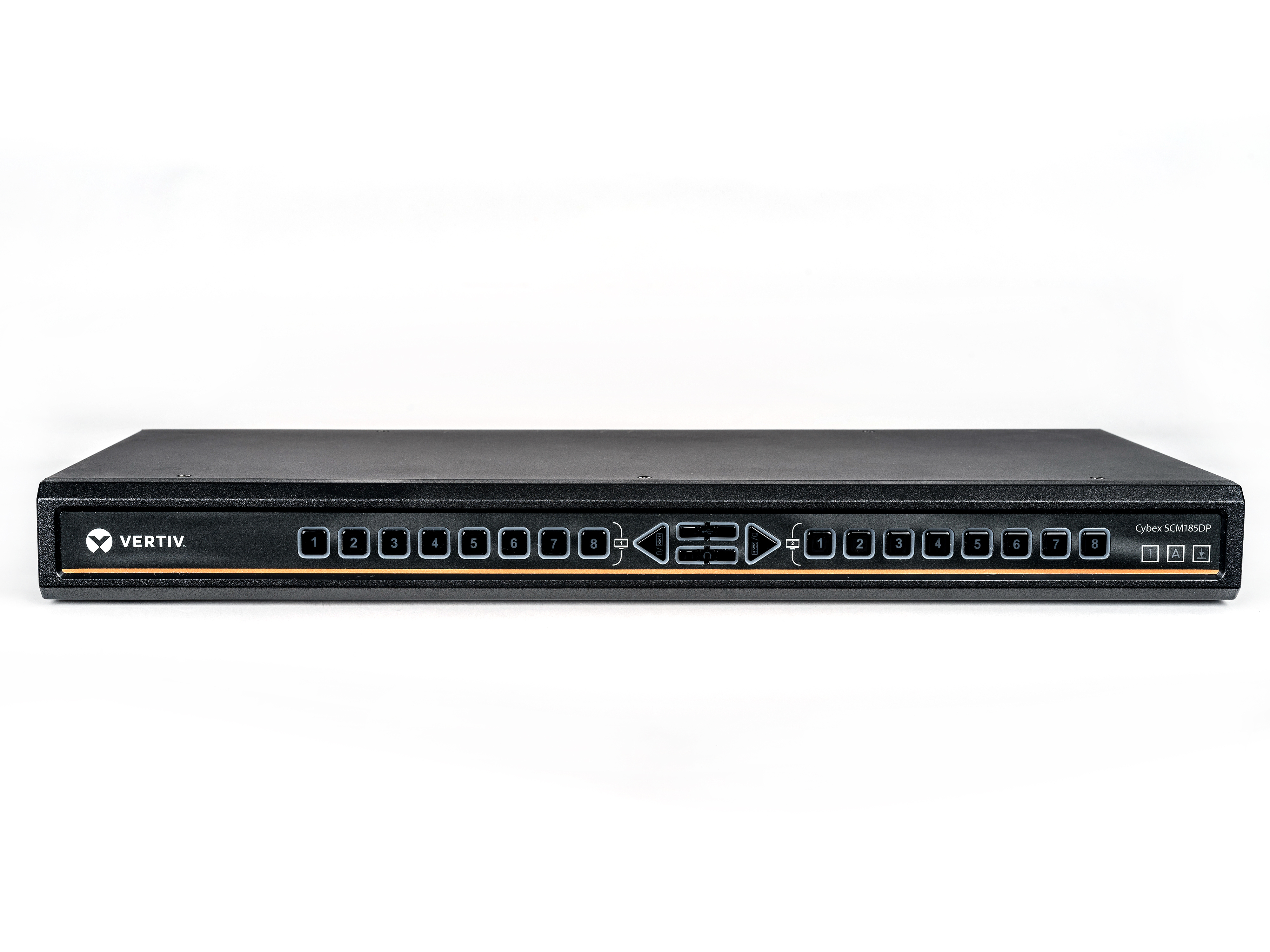

Cybex™ SCM185DPH Secure Desktop Matrix
The Vertiv™ Cybex™ Secure Desktop Matrix allows users to securely interact with multiple computers and observe two active computers simultaneously. Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Cybex Secure Desktop Matrix is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required.
Quick Access
Specifications
Technical Specifications
Cybex™ SCM185DPH Secure Desktop Matrix
- Product Overview

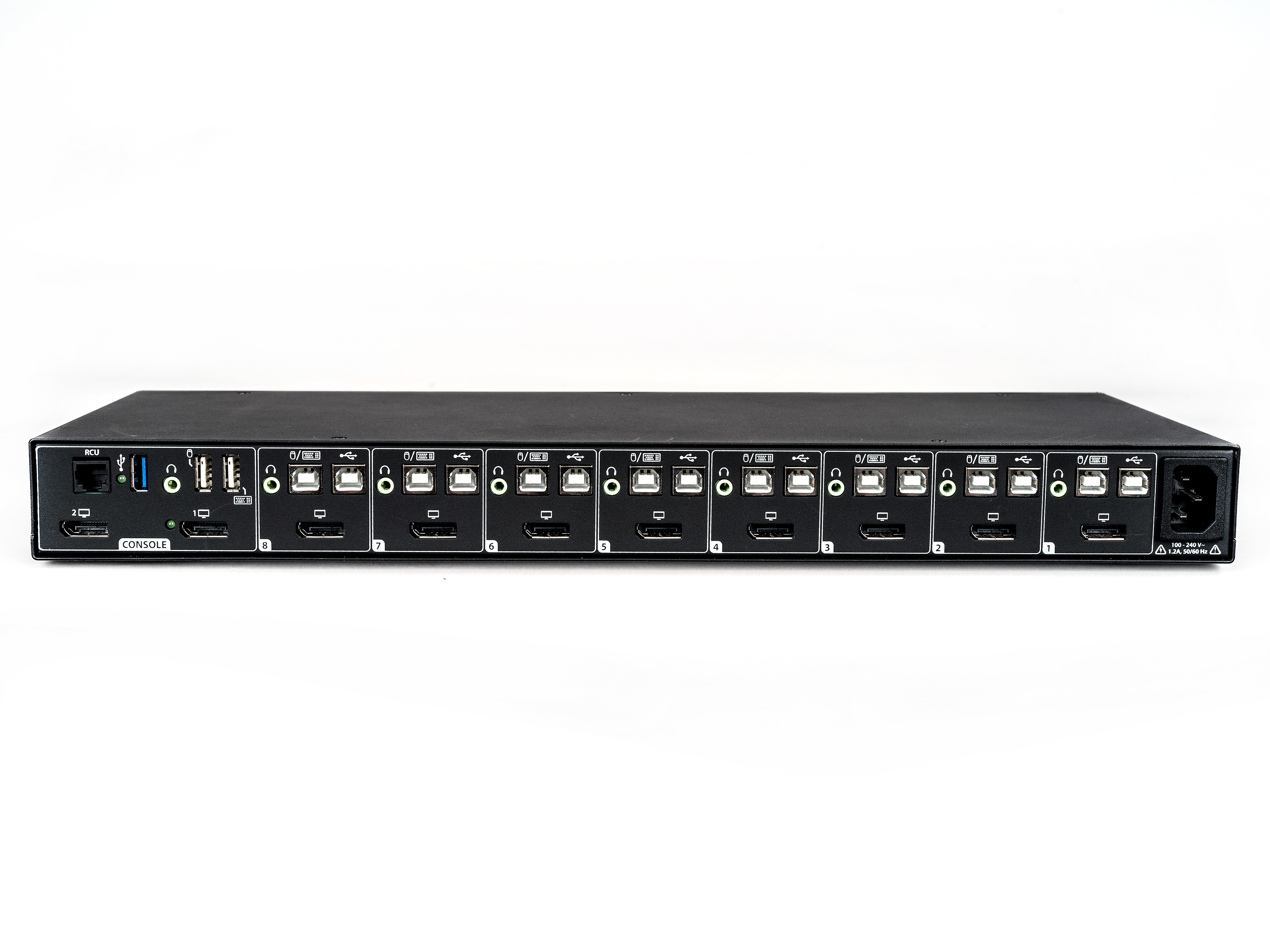

- Input Ports
- (8) DP/HDMI Universal Port
- Output Ports
- (2) DP/HDMI Universal Ports
- Video Resolution
- UHD 4K (3840x2160) @ 60Hz
- Power Description
- Power Supply(s)
- 1 x internal, 45W Max
- Interfaces/Ports
- Network Interface(s)
- 100-240V AC
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 5.4 lbs
- Weight
- 2.5 kgs
- Height
- 1.7 in
- Height
- 43 mm
- Width
- 17.3 in
- Width
- 439 mm
- Depth
- 7.3 in
- Depth
- 185 mm
- Miscellaneous
- Agency Approvals
- FCC class A, CE, TUV US, TUV Canada, RCM, VCCI
Brochures and Data Sheets
Software
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Cybex™ SCM185DPH Secure Desktop Matrix
Warranty : 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
View information on two isolated computers simultaneously.
Block unauthorized USB devices while allowing secure switching of smart card and biometric devices between computers
Universal video connectors to support DP, HDMI, and DVI-D
Vertiv™ patented keyboard lock status indication
Active intrusion detection and tamper-evident holographic labels prevent hardware from being compromised
Features
Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
Secure KVM switching allows for instantaneous interaction between two computers from different security classifications
Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
Native video supports up to UHD 4K at 60 Hz
Unidirectional data flow of keyboard, mouse, video, and audio
