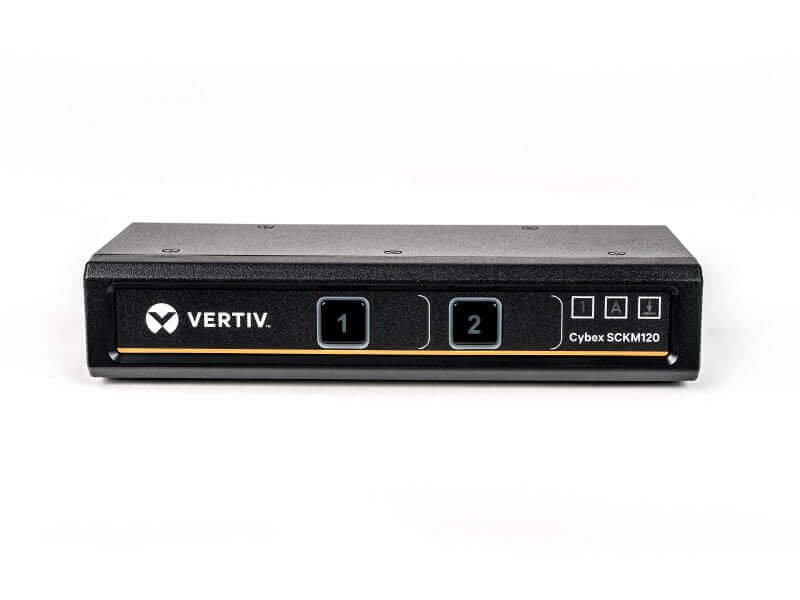

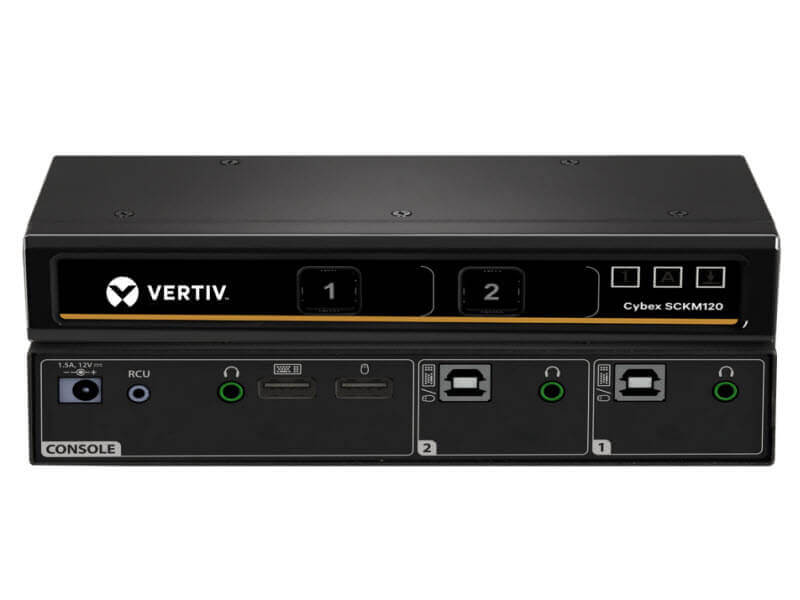

Cybex SCKM120 Secure Desktop KM
Access up to four systems simultaneously and navigate between systems effortlessly. The Avocent SCKM switch provides real-time access to up to 4 systems at a time from a single keyboard and mouse.
Quick Access
Specifications
Technical Specifications
Cybex SCKM120 Secure Desktop KM
- Power Description
- Power Supply(s)
- External
- Input Power (Maximum)
- 12V DC, 1.5A Power Adapter
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140°F (-20° to 60°C)
- Physical Characteristics
- Weight
- 3 lbs
- Weight
- 1.4 kgs
- Height
- 1 in
- Height
- 25.4 mm
- Width
- 13.7 in
- Width
- 348 mm
- Depth
- 5 in
- Depth
- 127 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
Brochures and Data Sheets
- Vertiv-SCKM-140-145-KM-DS-EN-NA-AV-11428-WEB
- Vertiv-Critical-Decisions-BR-EN-NA-AV-47103.pdf
- Government Application Brief: Access to Multiple-Classification Environments at Any Distance
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- Vertiv-Cybex-Secure-KVM-BR-EN-NA-AV-11119
- Vertiv-Cybex-Secure-KM-Switch-DS-EN-NA-AV-11436
Software
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Cybex SCKM120 Secure Desktop KM
Warranty : 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
Outstanding Security: Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0.
Enhanced Usability: Cursor Navigation Switching allows the user to switch control between systems by simply moving the cursor from one display to another
Access: Access up to four computers or networks using a single keyboard and mouse
Zero Delay Switching: Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources
Independent USB Switching: Easily switch USB (SCKM145 only) peripherals independently of keyboard and mouse
Features
Cursor navigation switching lets users switch control between systems by simply moving the mouse cursor from one display monitor to another. Both audio and keyboard follow the cursor from one computer to the next.
Instant mouse and keyboard switching via emulation assures zero delay when switching between systems.
Independent audio and USB switching gives users the ability to freeze audio and USB devices to a specific channel so these feeds are maintained as the cursor switches between system monitors.
Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
High-speed mobile device charging port provides a quick way to charge mobile phones and other devices.
Pre-set display configurations are easily modified for specific environments with a user-friendly administrator tool, enabling flexible assignment of USB devices for each user.
