Product Model
Cybex SC820H Secure Desktop KVM
The Cybex SC800 series secure desktop KVM switching portfolio offers a proven solution for guarding against desktop cyber intrusion. These switches, that switch between networks at the push of a button, are certified to meet the NIAP Common Criteria Protection Profile for Peripheral Sharing Switch ver. 3.0. They provide high resolution compatibility utilizing HDMI, DisplayPort, and DVI technology. The SC800 series models support 2, 4, or 8 networks, a single monitor, and CAC through a dedicated port.
Quick Access
Specifications
Technical Specifications
Cybex SC820H Secure Desktop KVM
- Product Overview
- Input Ports
- (2) DisplayPort 1.2
- Video Connection
- HDMI 1.4
- Video Resolution
- UHD 4K - 3840 x 2160 @30Hz
- Power Description
- Power Supply(s)
- External
- Input Power (Maximum)
- 12V DC, 1.5A Power Adapter
- Interfaces/Ports
- USB ports
- 3 USB 3.0
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- 4° to 140°F (-20° to 60°C)
- Physical Characteristics
- Weight
- 1.0 lbs
- Weight
- .5 kgs
- Height
- 1.7 in
- Height
- 43 mm
- Width
- 7 in
- Width
- 178 mm
- Depth
- 2.4 in
- Depth
- 61 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
Software
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Cybex SC820H Secure Desktop KVM
Warranty : 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
Outstanding security. Certified to the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for Peripheral Sharing devices
Discrete processing paths. Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports
Unique NUM Lock, CAPS Lock and Scroll Lock indicators. While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use
Support for USB authentication devices. A CAC port provides secure connection to common access cards for authenticating users. An optional Dedicated Periphral Port (DPP) provides a secure connection to common access card readers, as well as additional types of authentication devices including, facial recognition scanners and fingerprint readers
Gain true image reproduction and display flexibility. Cybex KVM switches offer the industry’s broadest range of video connections including DVI-I, Display Port, HDMI and support for resolutions up to UHD 4K to make sure image quality is highly accurate and video plays at the highest definition possible.
Features
NIAP Protection Profile for Peripheral Switching Devices v. 3.0
Two, four or eight secure, isolated channels
Resolutions up to UHD 4K or 2560 X 1600
Single Head display connections with DVI-I, HDMI 1.4, or DisplayPort 1.2 support
CAC/DPP option available
Dual monitor support
Find Your Area Contact
Products Support Contacts
Vertiv Technical Support for IT Management & Software (Trellis & Avocent products)
Email Contact
+1 888 793 8763
Mon-Fri 9:00 a.m. to 5:30 p.m.
Alabama
USA
Product areas of focus:
Desktop KVM and KM, IP KVM, Secure KVM, Serial Consoles and Gateways, Digital Infrastructure Solutions
Change
You might also be interested in...

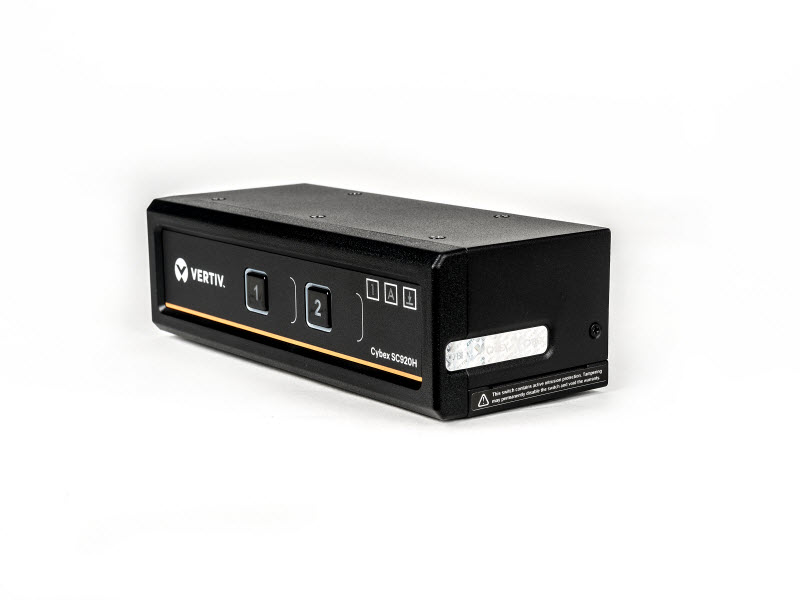

Cybex SC 920H Secure Desktop KVM
