Cybex SC 945D Secure Desktop KVM
Quick Access
Specifications
Technical Specifications
Cybex SC 945D Secure Desktop KVM
- Product Overview
- Input Ports
- (4) DisplayPort 1.2
- Video Connection
- Dual Head HDMI 1.4
- Video Resolution
- UHD 4K - 3840 x 2160 @30Hz
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 35W (120V)

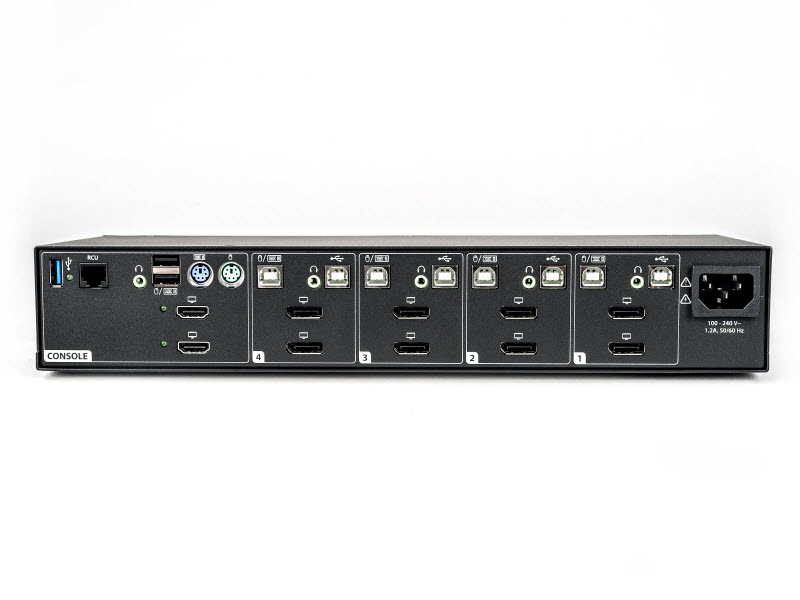

- Interfaces/Ports
- USB ports
- (8) USB Type-B, (3) USB Type-A
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 3.7 lbs
- Weight
- 1.7 kgs
- Height
- 2.2 in
- Height
- 55.9 mm
- Width
- 13.7 in
- Width
- 348 mm
- Depth
- 5 in
- Depth
- 127 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

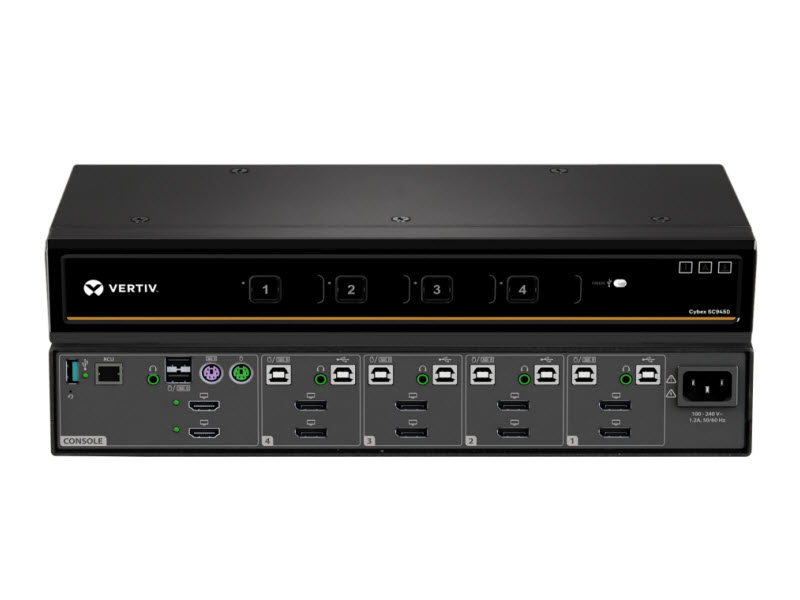

Cybex SC 945D Secure Desktop KVM
The Cybex™ SC900 secure desktop KVM switching portfolio offers a proven solution for guarding against cyber intrusion at the desktop. These switches are designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NIAP protection profile for peripheral sharing devices version 3.0. These switches provide users with high resolution compatibility utilizing HDMI and DisplayPort technology as well as traditional DVI technology.
Warranty : 2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
