Quick Access
Product Model

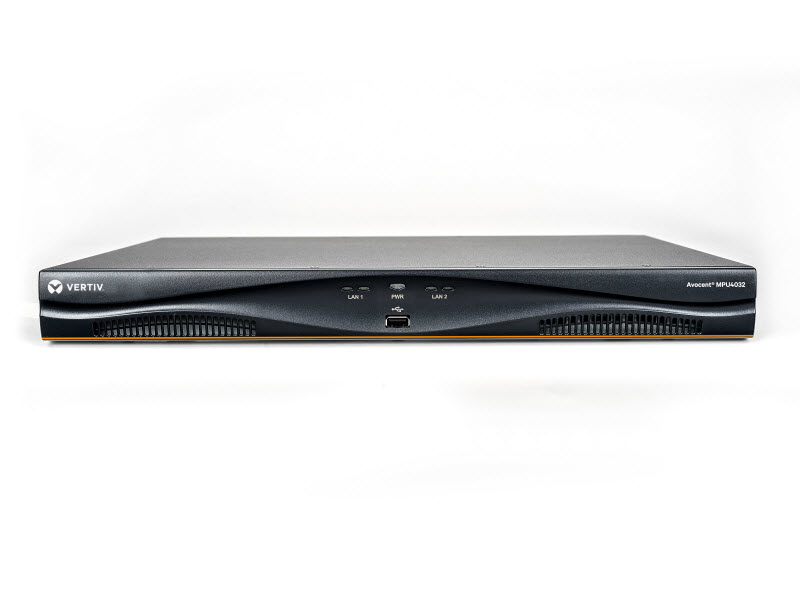

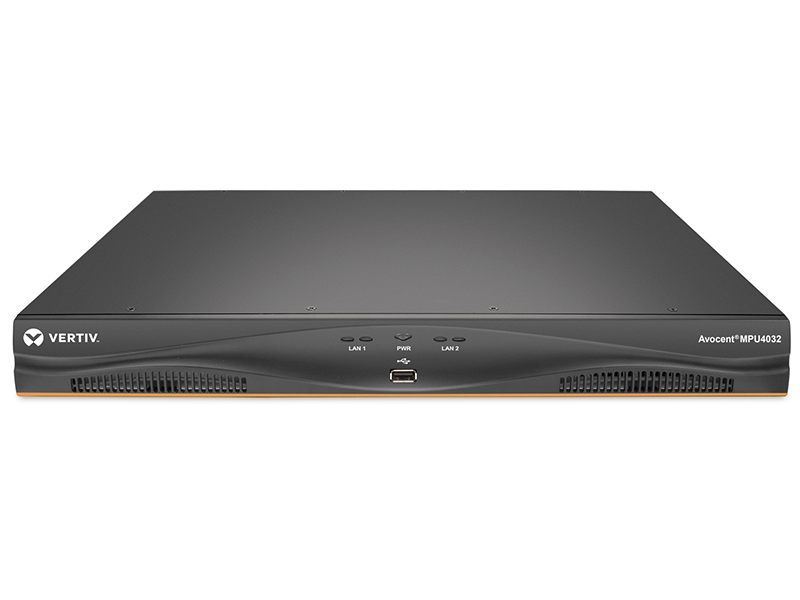

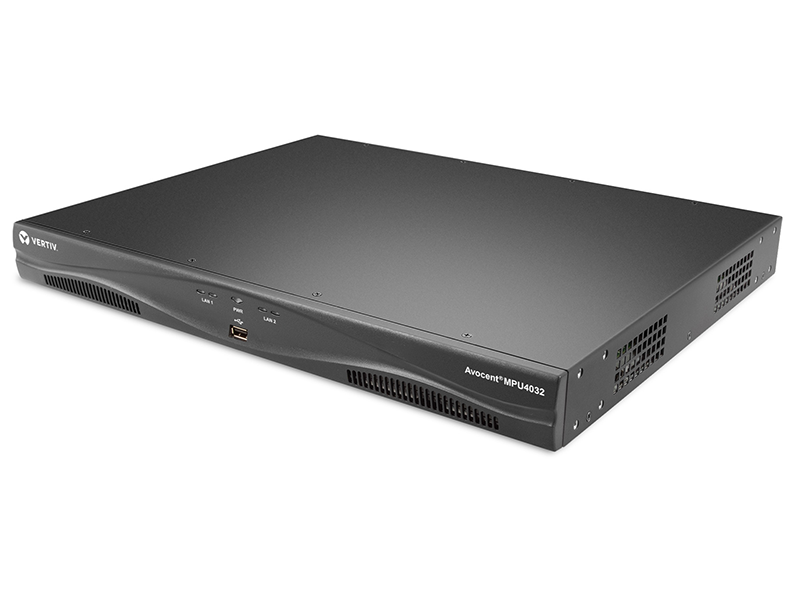

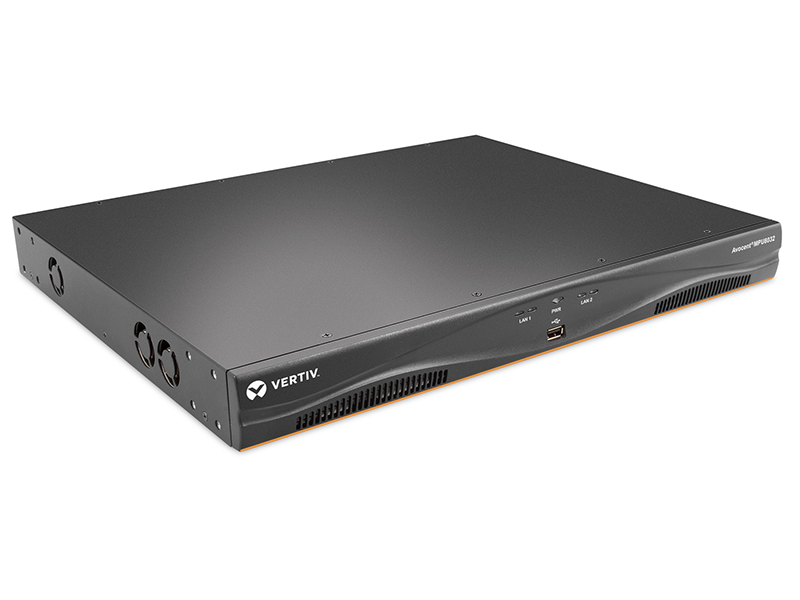

Avocent MPU4032DAC Digital KVM Switch
Significant reduction of cable volume.
Remote access to KVM, USB, and serial connections.
Serial adaptors support SSH connections and Cisco pinout to make connections to Cisco equipment quick and easy.
Virtual media enables remote USB connections and support for smartcard/CAC readers.
Local and remote browser interface for easy setup and use.
Quick Access
Specifications
Technical Specifications
Avocent MPU4032DAC Digital KVM Switch
- Graphic Mode
- Internal Modem
- No
- Service Processor support
- No
- Extension Distance
- 50m
- Cellular Support
- No
- Power Description
- Power Supply(s)
- Single or dual power, internal, 100-240V
- Input Power (Maximum)
- 40W

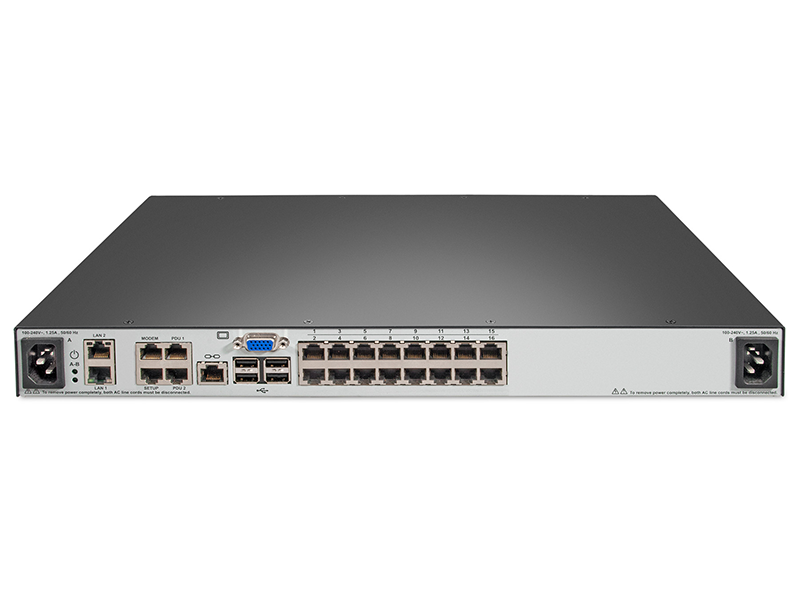

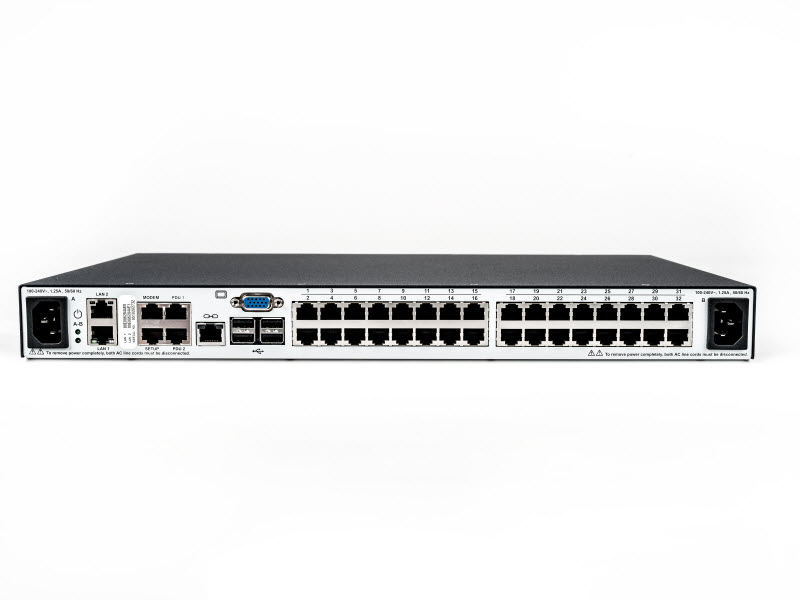

- Interfaces/Ports
- Network Interface(s)
- (2) 10/100/1000 Ethernet
- USB ports
- 4
- USB Hub Support
- Yes
- Operational Conditions
- Operating Temperature
- 32° to 22°F (0° to 50°C)
- Humidity
- 5 - 95% relative humidity 38.7°C max wet bulb temp
- Storage Temperature
- -4° to 158°F (-20° to 70°C)
- Physical Characteristics
- Weight
- 8.6 lbs
- Weight
- 3.9 kgs
- Height
- 1.72 in
- Height
- 43.69 mm
- Width
- 17 in
- Width
- 431.8 mm
- Depth
- 13.38 in
- Depth
- 339.85 mm
- Miscellaneous
- Other supported accessories
- Serial
- Authentication Supported
- Local, LDAP
- Agency Approvals
- UL, FCC, cUL, ICES003, CE, VCCI, KCC, C-Tick, GOST
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Avocent MPU4032DAC Digital KVM Switch
The Avocent MergePoint Unity™ switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
Warranty : 2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
• Improved remote management and staff efficiency
• Make connections to Cisco equipment quick and easy
• Improved physical security
• Local and remote browser interface for easy setup and use
• Centralized management for large deployments
Features
• Remote access to KVM, USB and serial connections
• Serial adaptors support SSH connections and the Cisco® pinout
• Virtual media enables remote USB connections and support for smartcard/CAC readers
• Built-in Web interface
• Managed with the Avocent DSView™ 4 management software
• FIPS 140-2 compliance: Based on the FIPS 140-2 validated cryptographic module(s) (Certificate #1051)
