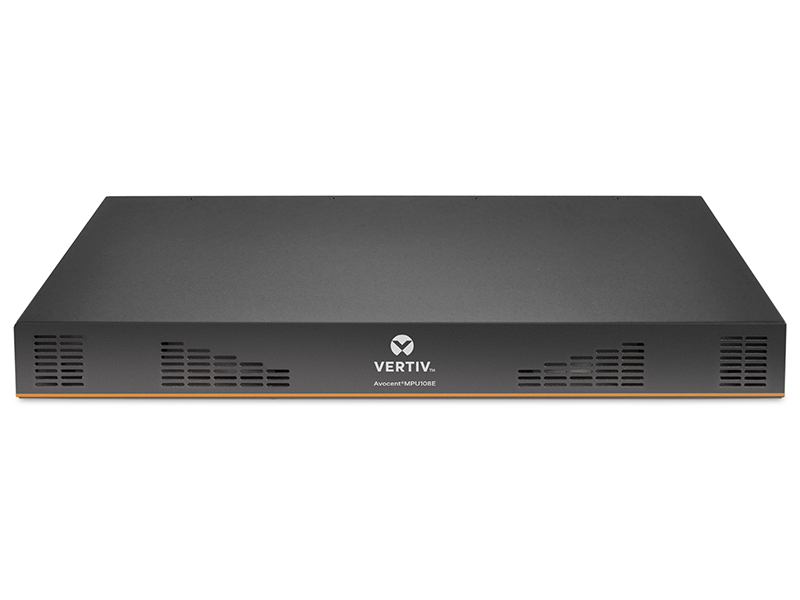

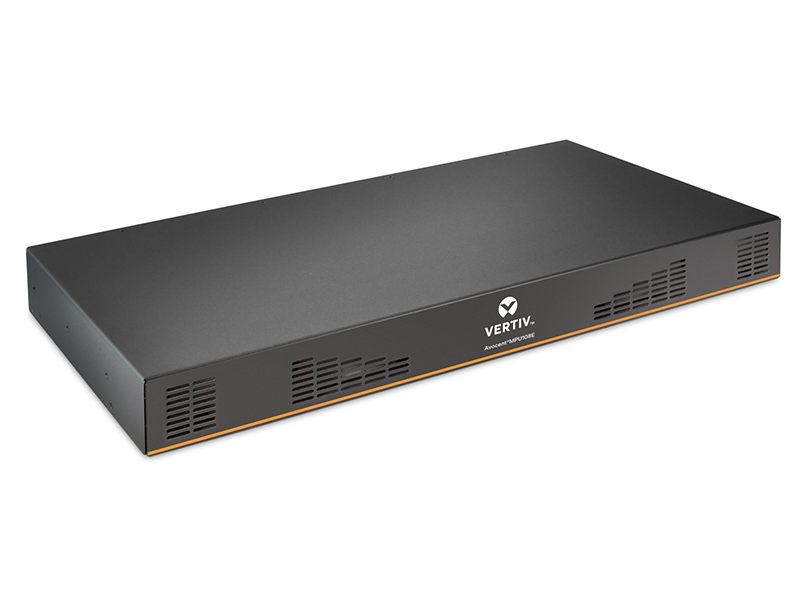

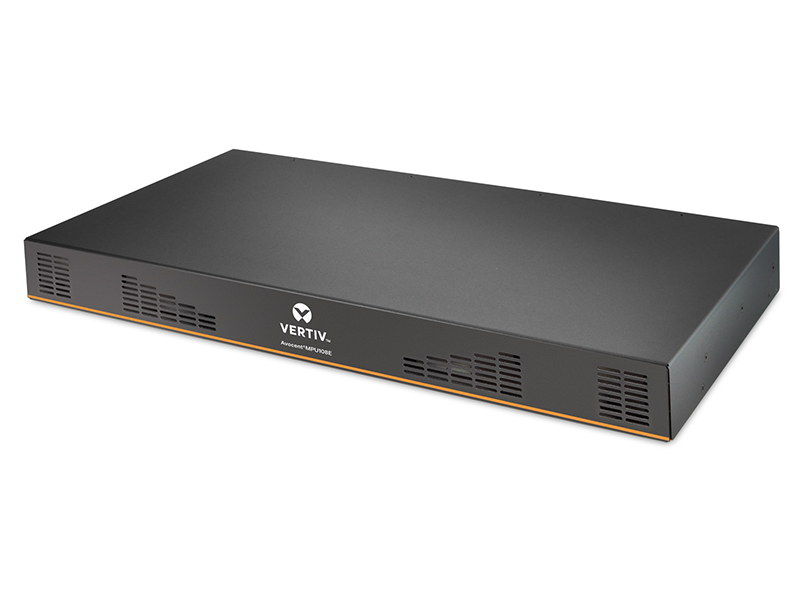

Avocent MPU108EDAC Digital KVM Switch
8-port, 1 digital KVM path, dual AC power supply
Benefits
• Improved remote management and staff efficiency
• Make connections to Cisco equipment quick and easy
• Improved physical security
• Local and remote browser interface for easy setup and use
• Centralized management for large deployments
Features
• Remote access to KVM, USB and serial connections
• Serial adaptors support SSH connections and the Cisco® pinout
• Virtual media enables remote USB connections and support for smartcard/CAC readers
• Built-in Web interface
• Managed with the Avocent DSView™ 4 management software
• FIPS 140-2 compliance: Based on the FIPS 140-2 validated cryptographic module(s) (Certificate #1051)
Specifications
The Avocent MergePoint Unity™ switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
Avocent MPU108EDAC Digital KVM Switch
- Graphic Mode
- Internal Modem
- No
- Service Processor support
- No
- Extension Distance
- 50m
- Cellular Support
- No
- Power Description
- Power Supply(s)
- Single or dual power, internal, 100-240V
- Input Power (Maximum)
- 40W

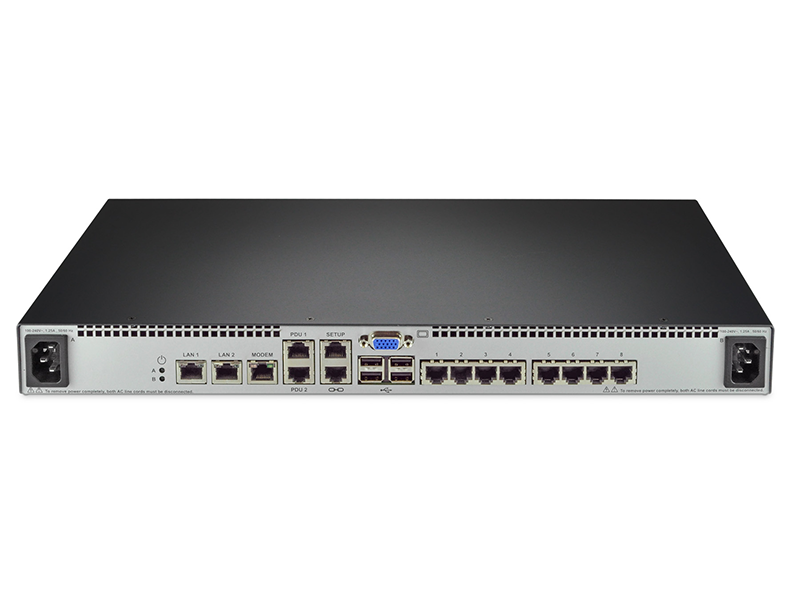

- Interfaces/Ports
- Network Interface(s)
- (2) 10/100/1000 Ethernet
- USB ports
- 4
- USB Hub Support
- Yes
- Operational Conditions
- Operating Temperature
- 32° to 22°F (0° to 50°C)
- Humidity
- 5 - 95% relative humidity 38.7°C max wet bulb temp
- Storage Temperature
- –4° to 158°F (–20° to 70°C)
- Physical Characteristics
- Weight
- 6.3 lbs
- Weight
- 2.86 kgs
- Height
- 1.72 in
- Height
- 43.69 mm
- Width
- 17 in
- Width
- 431.8 mm
- Depth
- 9.2 in
- Depth
- 233.68 mm
- Miscellaneous
- Other supported accessories
- Serial
- Authentication Supported
- Local, LDAP
- Agency Approvals
- UL, FCC, cUL, ICES003, CE, VCCI, KCC, C-Tick, GOST
