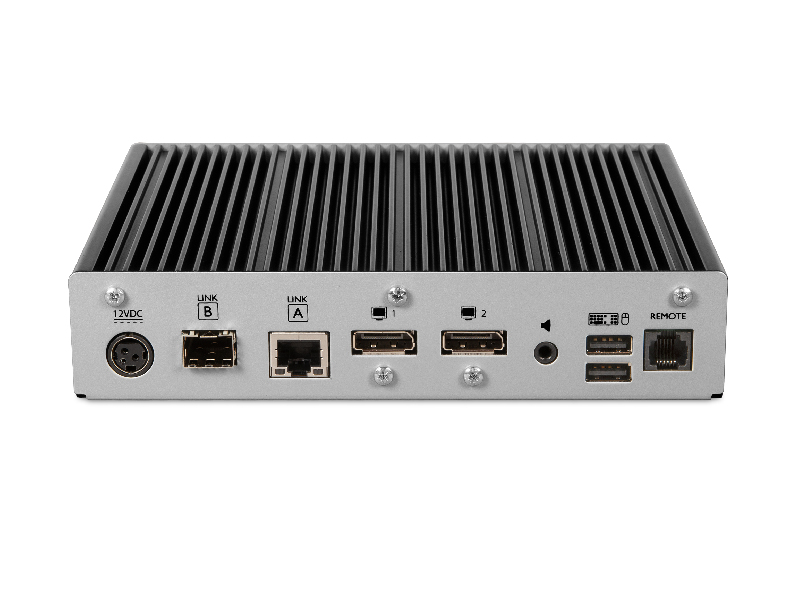

Avocent® LV5520T/ Avocent® LV5520R KVM Extender
Vertiv™ Avocent® LV5500/ Avocent® LV5520 are single and dual head KVM (keyboard, video, mouse) extenders that provide remote access to multiple devices over an existing IP network. The Avocent LV5500/ Avocent LV5520 provides users in broadcasting, control centers, and other industries requiring access to multiple devices over IP, the ability to surpass the restriction distance can place, along with providing the speed and imagery they need to be effective and efficient.
Quick Access
Specifications
Technical Specifications
Avocent® LV5520T/ Avocent® LV5520R KVM Extender
- Product Overview
- Video Connection
- 4 x Tri-color status LEDs 2 x DisplayPort out
- Video Resolution
- 4096x2160 @ 60Hz
- Power Description
- Power Supply(s)
- 100 – 240 VAC, 47/63Hz 12 VDC 18W output
- Interfaces/Ports
- USB ports
- 4 x USB2.0 full speed Type A
- USB Hub Support
- USB 2.0
- Operational Conditions
- Operating Temperature
- 32°F to 104°F (0°C to 40°C)
- Physical Characteristics
- Weight
- 2.73 lbs
- Weight
- 1.24 kg
- Height
- 1.54 in
- Height
- 39 mm
- Width
- 7.32 in
- Width
- 186 mm
- Depth
- 5.83 in
- Depth
- 148 mm
- Miscellaneous
- Agency Approvals
- FCC, CE
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Avocent® LV5520T/ Avocent® LV5520R KVM Extender
The Avocent® LV5520T is the latest in the Avocent® high-performance family of products. Coupled with the Avocent LV5520R, the Avocent LV5520T is a point-to-point high performance KVM extender that provides 24-bit color graphics over dual heads up to 4K@60Hz. It provides users with real-time access, high resolution clarity and local console video output. The Avocent LV5520T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
Benefits
4K @60 Hz - New technology auto-adjusts to deliver high quality video up to 4K/60 on both single and dual head extenders.
Improve Productivity and Functionality - Take advantage of forward and backward capability with the transparent, hi-speed USB 2.0 ports by connecting to tablets, joysticks, webcams, printers, and more.
Features
Zero Configuration - Effortlessly connect to various devices without having to go through the hassle of manual setup.
Fiber or Copper Option - Connect the transmitter and receiver with only a single fiber or copper cable. Expand the range and bandwidth of the KVM extender up to 4km with the fiber cable option.
USB 2.0 True Emulation (Dual Head) - Device USB emulation ensures the computer will boot without the Rx connected and allows dual PC operation.
