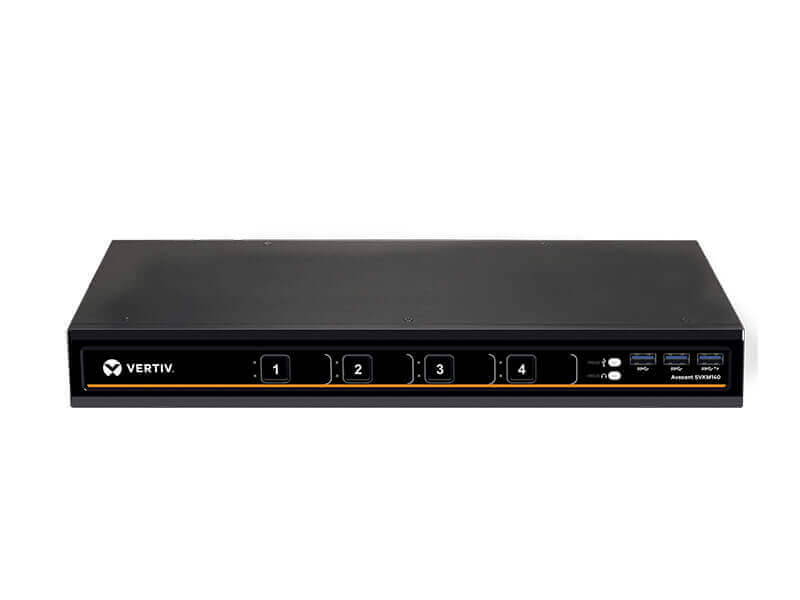

Avocent SVKM 140 KM Switch
Access up to four systems simultaneously and navigate between systems effortlessly. The Avocent SVKM switch provides real-time access to up to 4 systems at a time from a single keyboard and mouse. Selected models provide easy connectivity to external USB devices, quick data transfer and high-speed charging of mobile devices.
Quick Access
Specifications
Technical Specifications
Avocent SVKM 140 KM Switch
- Product Overview
- Input Ports
- 2 x USB 2.0 A (keyboard and mouse), 3 x USB 3.0
- Output Ports
- 4 x USB 2.0 B
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 35W
- Interfaces/Ports
- USB ports
- 3
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 3 lbs
- Weight
- 1.4 kgs
- Height
- 1 in
- Height
- 28 mm
- Width
- 13.7 in
- Width
- 342 mm
- Depth
- 5 in
- Depth
- 125 mm
- Miscellaneous
- Agency Approvals
- RCM, EU, FCC Class B, VCCI, c-UL
Brochures and Data Sheets
Software
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Avocent SVKM 140 KM Switch
Warranty : 2 years, extended warranties available
Benefits
Increase productivity with simultaneous access to all required information via cursor navigation switching.
Reduce cost with access to multiple systems using a single keyboard and mouse.
Support the mobile worker with instant access to mobile and USB device data and a high-speed mobile charging port.
Simplify work with ability to copy and paste data between systems.
Features
Cursor navigation switching lets users switch control between systems by simply moving the mouse cursor from one display monitor to another. Both audio and keyboard follow the cursor from one computer to the next.
Instant mouse and keyboard switching via emulation assures zero delay when switching between systems.
Independent audio and USB switching gives users the ability to freeze audio and USB devices to a specific channel so these feeds are maintained as the cursor switches between system monitors.
Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
High-speed mobile device charging port provides a quick way to charge mobile phones and other devices.
Pre-set display configurations are easily modified for specific environments with a user-friendly administrator tool, enabling flexible assignment of USB devices for each user.
