Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

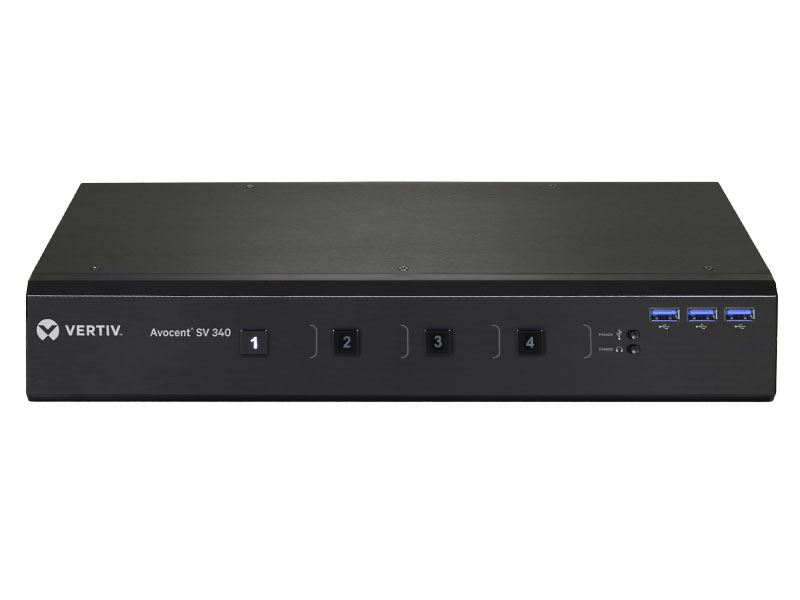

Avocent® SV340 KVM Switch
The Avocent® SV340 desktop KVM switch helps bring order to the desktop.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Transportation
- Chemical/Petrochemical (excl. Oil & Gas)
- Broadcast and Entertainment
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
Product Model
Warranty:
2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Avocent® SV340 KVM Switch
The Avocent® SV340 desktop KVM switch helps bring order to the desktop.
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Transportation
- Chemical/Petrochemical (excl. Oil & Gas)
- Broadcast and Entertainment
- Military, Defense, Aerospace and Missile
- Nuclear Power
- Oil and Gas
Benefits
Increase productivity with simple, rapid access to systems and peripherals
Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
Reduce costs with fewer peripheral purchases and easier IT maintenance
Features
Advanced video support including DVI-I, HDMI, DP, and support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
Multiple USB ports provide easy connectivity to external USB devices, quick data transfer and high-speed charging of mobile devices.
Mobile high-definition link allows media contained on mobile devices to be viewed on connected HDMI monitors.
Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system.
Specifications
Avocent® SV340 KVM Switch
- Product Overview
- Video Connection
- 2 x DVI-I (HDMI and VGA with adapter)
- Video Resolution
- UHD 4K - 3840 x 2160 @ 30 Hz (via DVI to HDMI)
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 35W
- Interfaces/Ports
- USB ports
- 3
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 3.7 lbs
- Weight
- 1.85 kgs
- Height
- 2.2 in
- Height
- 56 mm
- Width
- 13.7 in
- Width
- 342 mm
- Depth
- 5 in
- Depth
- 125 mm
- Miscellaneous
- Agency Approvals
- RCM, EU, FCC Class B, VCCI, c-UL
