Product Model

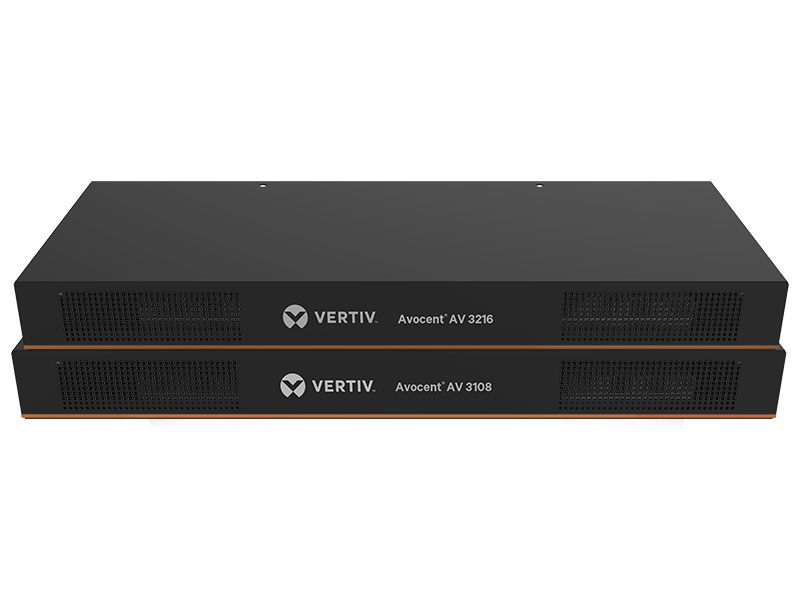

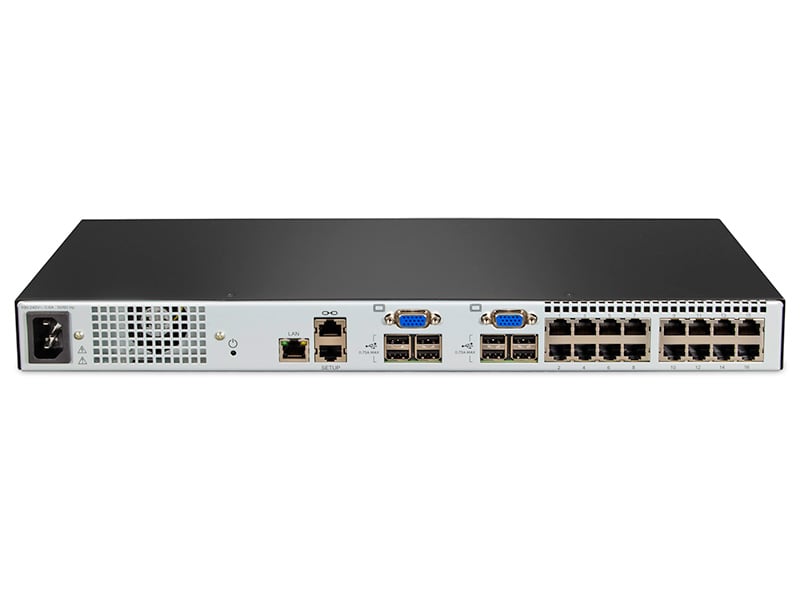

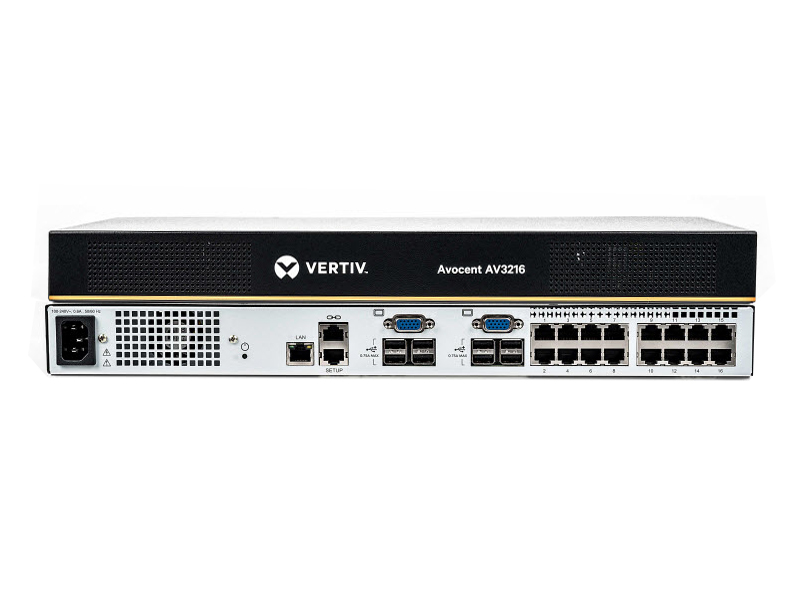

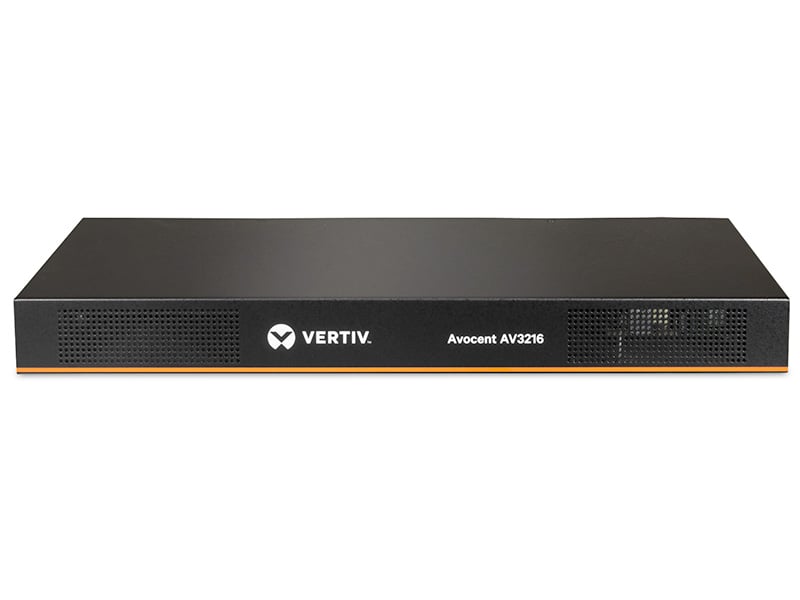

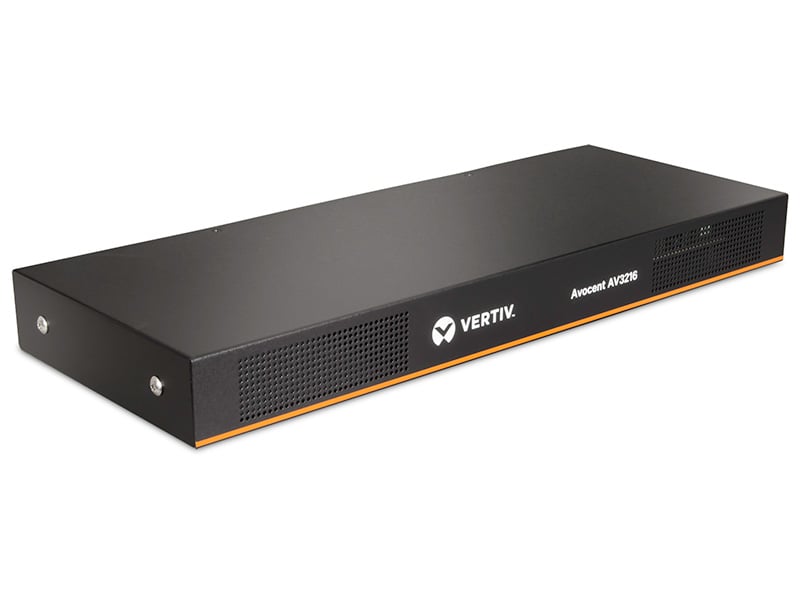

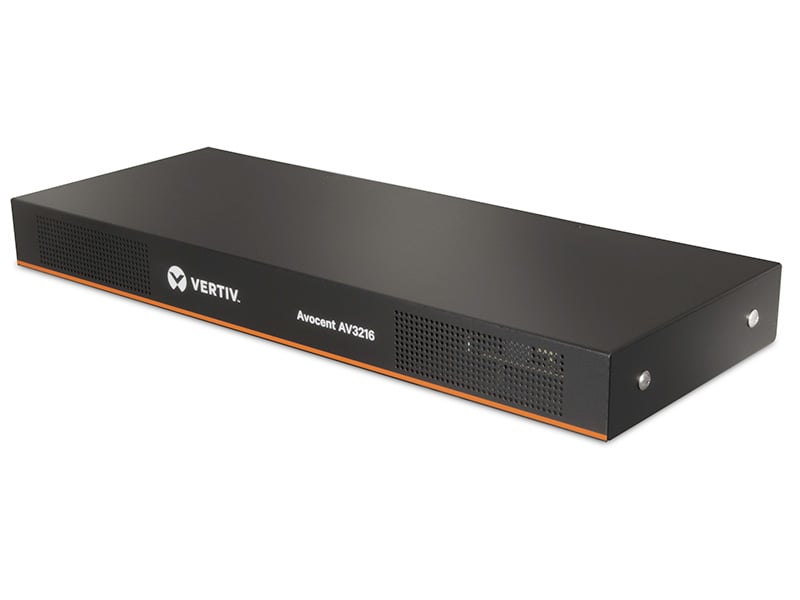

Vertiv Avocent AV3000 KVM Over IP Switch | 16 port KVM switch (AV3216-001)
KVM OVER IP: KVM switch with sixteen ports for up to 16 servers from any location via the onboard web browser.
USER SUPPORT: Support for 2 local ports and 1 remote KVM over IP user, with 4 USB 2.0 ports.
ADDED SECURITY: Added security through Common Access Card (CAC)/Smart Card and LDAP directory authentication, providing the ability to grant access to specified users and limit KVM access to specific targets.
DISPLAY TARGETS: Support for VGA, Display Port, DVI and HDMI video targets.
SIMPLIFIED AND CONSOLIDATED MANAGEMENT: Virtual media support so administrators can attach storage media for out-of-band file transfers and OS patch deployments.
Quick Access
Specifications
Technical Specifications
Vertiv Avocent AV3000 KVM Over IP Switch | 16 port KVM switch (AV3216-001)
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 100-240VAC
- Interfaces/Ports
- Network Interface(s)
- 10/100 Mpbs Ethernet port
- USB ports
- 4 USB 2.0
- Operational Conditions
- Operating Temperature
- 32° to 122° F; 0° to 50° C
- Storage Temperature
- -4° to 158° F; -20° to 70° C
- Physical Characteristics
- Weight
- 4.4 lbs
- Weight
- 2.0 kgs
- Height
- 1.72 in
- Height
- 43.7 mm
- Width
- 17 in
- Width
- 432 mm
- Depth
- 6.5 in
- Depth
- 165 mm
- Miscellaneous
- Other supported accessories
- Common Access Card (CAC) support
- Authentication Supported
- 128-bit SSL, AES, DES and 3DES encryption
- Agency Approvals
- UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI
Software
Warranties
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv Avocent AV3000 KVM Over IP Switch | 16 port KVM switch (AV3216-001)
Warranty : 2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
Powerful User Access Control
Grant access to specified users or implement LDAP directory authentication
Limit KVM access to specific targetson the switch
Enable smart card or CAC readers tosupport two factor authentication
Streamlined Management
Local Port Access -Support for virtual media, USB keyboards and mice
Single Solution that supportsUSB, PS/2, Sun and serialtargets
Advanced, graphical On-Screen Display eases system onfiguration and server selection
Space-Saving
CAT-5, thin cabling saves space in the rackand allows up to a 30 meter distancebetween the server and the switch
Features
Local or Remote Access– The AV 3000 KVM over IP switch portfolio provides integrated local or remote KVM over IP management capability – right out of the box
Virtual Media Support- Share a directly connected USB storage device to all servers connected to a KVM switch (a DSAVIQ-USB2 module is required for virtual media support)
Common Access Card (CAC)/Smart Card Support- Enhances security to meet US government regulation HSPD12 which is required for ensuring secure login to government systems (an AVRIQ-VMC module is required for CAC support)
Server/Computer Access- Manage PS/2, USB, Sun or serial devices
Flash Upgrade- Fast and easy upgrades to firmware switches and server interface modules
Easy to Use- Configure your system name and select your servers from the convenient OSD
Standards-Based- Uses standard CAT-5 cables
OS Independent- BIOS-level access ensures connection to the attached servers regardless of the health or type of operating system
Compatible with the Avocent DSView 4 Management software for a centralized and secure management of IT assets
