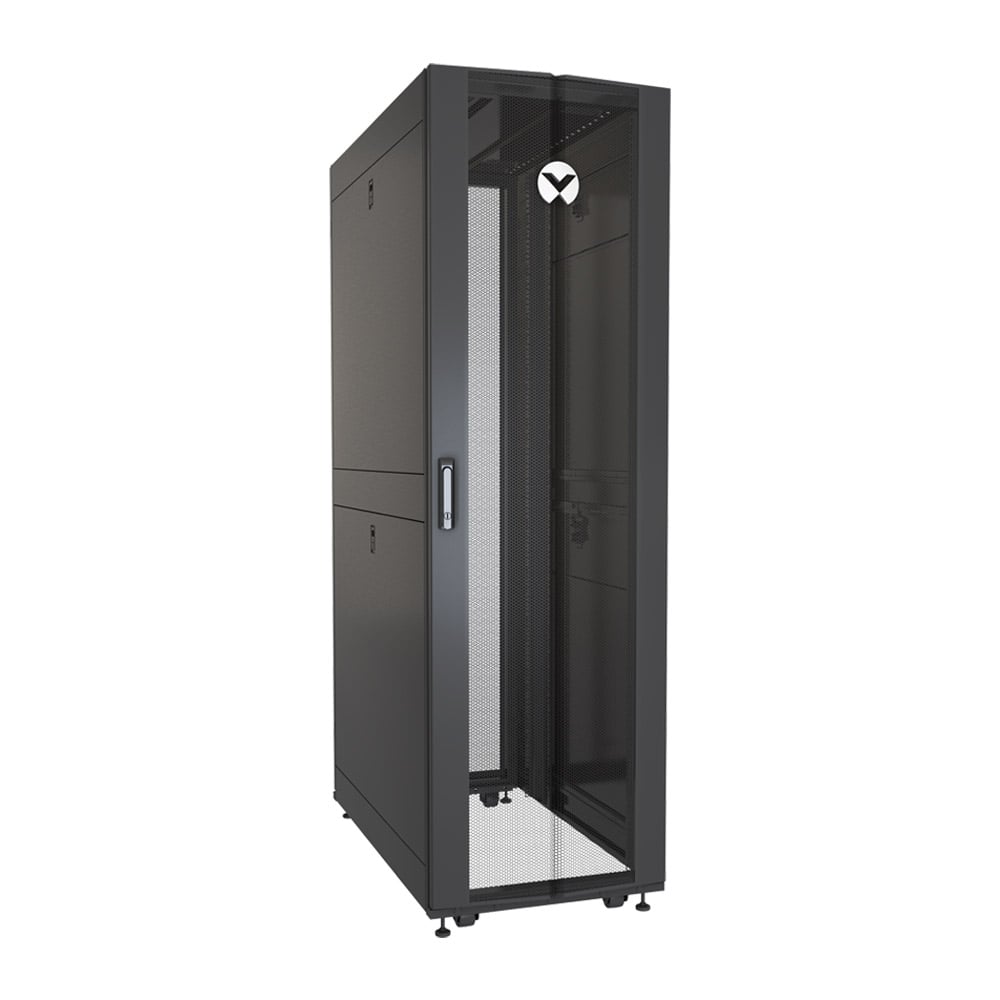

VR3100TAA
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Retail and Wholesale
Benefits

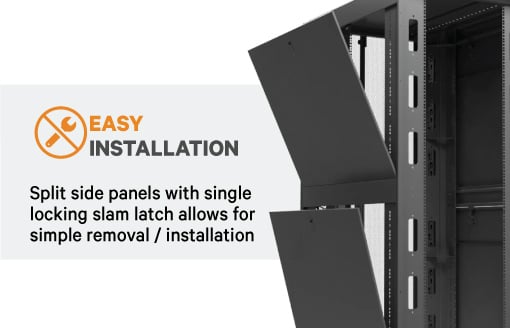

Tool-less design enables easy equipment installation, adjustments and service
Features
Specifications
All Vertiv™ VR racks come complete with keys and a hardware kit that includes 50 M6 cage nuts and screws, a cage nut installation tool, edge protection for top panel cable entry, a T30 / Phillips L key and T30 extension driver. All models feature a single 77% perforated locking front door, split 77% perforated locking rear doors, two pairs of split locking side panels, a high-density cable entry top cover (2000 Cat 6 cables), two sets of 19” EIA rails and two full height rack PDU Mounting /cable management brackets (one per side). The Vertiv™ VR Rack is built with low-profile casters and leveling feet, baying brackets and bolt-down brackets. VRXXXXSP ship with 2000 lb. rated shock packaging VRXXXXTAA are TAA Compliant *Nominal dimensions, reference submittal drawings for exact dimensions
- Physical Characteristics
- Material / Finish
- Steel Construction / Powder Coated
- Weight
- 280 lbs
- Weight
- 127 kgs
- Height
- 78.6 in
- Height
- 2000 mm
- Width
- 23.6 in
- Width
- 600 mm
- Depth
- 43.3 in
- Depth
- 1100 mm
- Power Description
- Load Rating
- 3000lbs (1360kg) Static, 2250lbs (1022kg) Dynamic
- Test Certificates
- EIA 310E, UL2416, RoHS, and REACH
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
