Product Model

Vertiv BBE PRO, Vault

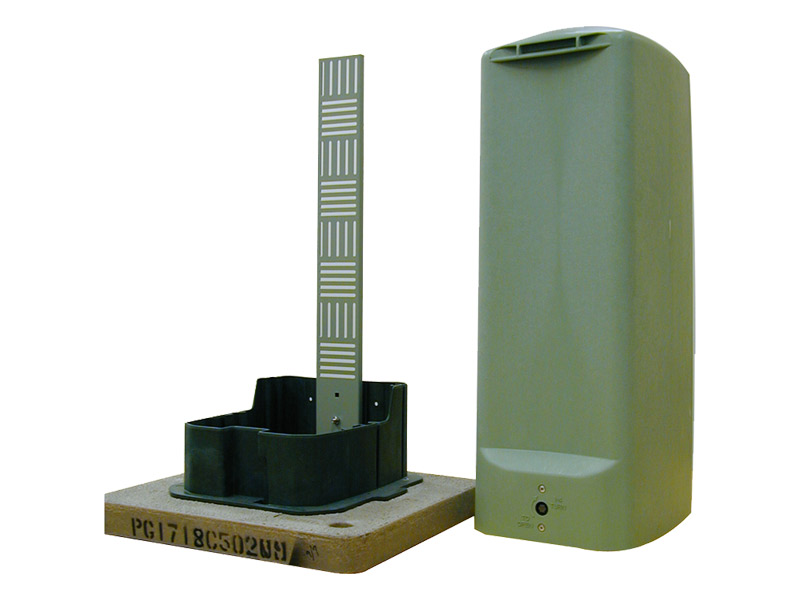

The ProFORM FTTP vault series of pedestals mounts to the top of a pre-cast vault. Three mounting bracket options are available: the Universal Rear-mounting Bracket (URB) is used for optical terminal block mounting; the fiber distribution mounting plate (FDP MI) is designed for slack storage, splicing and drops; and the plastic center mounting plate is used for copper distribution and wire management.

Get Brochure
Login to Save for Later
Best Suited For:
  • Telecom
Warranty: One-Year Limited Warranty Against Defects in Material and Workmanship

Benefits

Integral flood protection
Lift-off dome for 360° access
Self locking
Slide and secure mounting plate slides and locks for easy installation

Features

Stake-less, self-supporting base
Split/Rehab base in short base or integral spade
Universal mounting plate hole pattern for all types of terminal blocks
Molded-in service wire channel provides greater capacity
Entry port above bottom edge prevents gravel loss at the base
Seamless integral flood dome protects wirework from floods
Superior service wire grooming
Drive barb on integral spade base reduces pullout
Single point self-locking cover provides secure pedestal locking

Email
Vertiv BBE PRO, Vault
Ordering Information
Part type
Enclosure
Color
Green
Description
Vault mount pedestal series

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
