Product Model

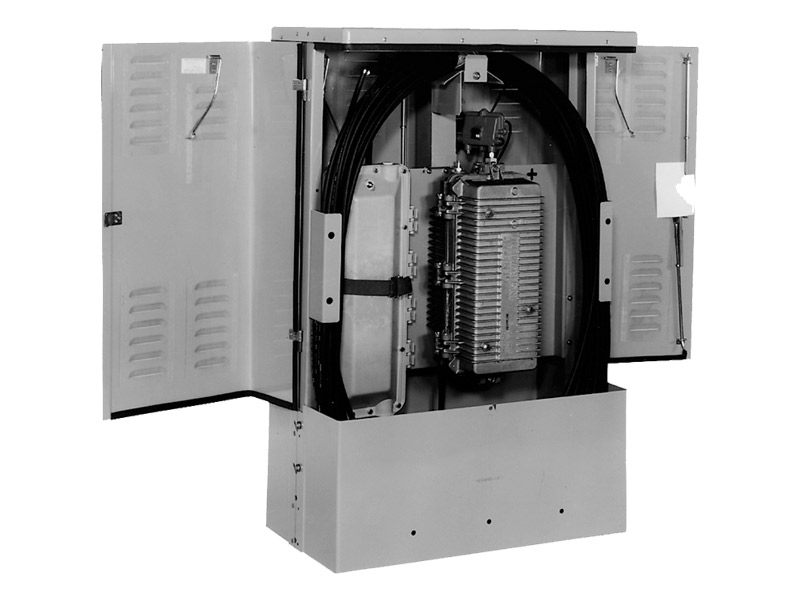

Vertiv BBE OPFO, OPFOTV11
The Vertiv BBE OPFO Series of metallic and non-metallic pedestal enclosures is designed to protect fiber optic splices and equipment in both buried and aerial distribution systems. These large capacity enclosures are equipped with universal mounting systems to accommodate most 3rd party splicing closures. The fiber splice capacity is limited only by the size of the splice closure. Cable management posts allow for maximum storage of cable. A ground bar (OPFOP) and mounting hardware are included.
Quick Access
Specifications
Technical Specifications
Vertiv BBE OPFO, OPFOTV11
- Ordering Information
- Part Number
- F112474
- Part type
- Enclosure
- Color
- Green
- Description
- Fiber splice pedestal - metallic
- Physical Characteristics
- Height
- 49.5 in
- Width
- 32 in
- Depth
- 18 in
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv BBE OPFO, OPFOTV11
Warranty : One-Year Limited Warranty Against Defects in Material and Workmanship
Benefits
Easy access to equipment and cable
Cable management provide excess cable storage capability
Features
Accommodates most splice closures
Ideal for high-density cable runs
Grounding system provides positive grounding of all components
Stake, pad (OPFO only), mountable fits a variety of applications
Metallic units feature closed-cell weather-stripped door edges protect all equipment
Non-metallic units feature self locking flood prtoected lift off dome.
Positive lock offers security
Mill-galvanized steel or polymer housing is durable and easy to maintain
