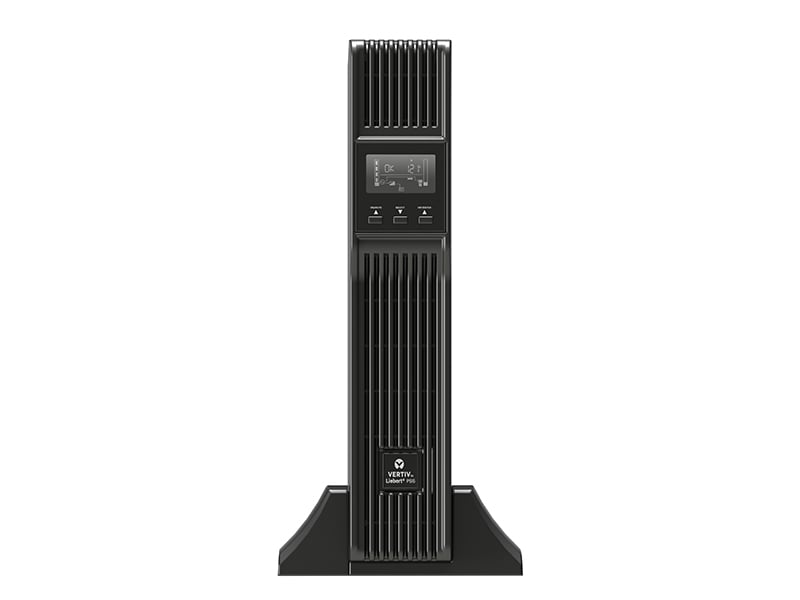

PSI5-3000RT120N
The Vertiv™ Liebert® PSI5 UPS, 3000VA 2700W, is a compact, energy-efficient solution designed to safeguard media closets, small racks, active power factor correction (PFC) power supplies, conventional power supplies and other critical electronics. It also includes a Vertiv™ Liebert® IS-Unity-SNMP Communications Card. It provides cost-effective protection from power disturbances. With up to 12 minutes of battery backup time at half load and 3 minutes at full load, this reliable system allows ample time for an orderly shutdown during a power outage.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
PSI5-3000RT120N
The Vertiv™ Liebert® PSI5 UPS, 3000VA 2700W, is a compact, energy-efficient solution designed to safeguard media closets, small racks, active power factor correction (PFC) power supplies, conventional power supplies and other critical electronics. It also includes a Vertiv™ Liebert® IS-Unity-SNMP Communications Card. It provides cost-effective protection from power disturbances. With up to 12 minutes of battery backup time at half load and 3 minutes at full load, this reliable system allows ample time for an orderly shutdown during a power outage.
Benefits
Features
Specifications
The flexible design of the Liebert® PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery.
- Product Overview
- Power Rating
- 3000VA / 2700W
- Input Voltage
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage
- 120VAC (100/110/115/125VAC user-configurable)
- Efficiency
- Up to 96% (Normal Mode)
- Wiring
- Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R
- Operational Conditions
- Operating Temperature
- Up to 40C
- Miscellaneous
- Listings
- UL 1778, c-UL-us Listed, FCC Part 15, Class B
- Topology
- Line-interactive (automatic voltage regulation)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Additional Resources
How Do You Select a UPS for Power Backup?
Your specific needs should determine your IT power decision. Selecting a UPS for your particular application requires an examination of a number of factors. The load size, location and criticality of the equipment to be protected are key, as well budgetary considerations, when choosing a UPS for power backup.
Power Continuity Services Selector: Renew and Maintain Your Vertiv Single-Phase UPS Population
Power Continuity Services offers flexible and complete lifecycle power renewal options for Liebert® GXT and Liebert® PSI UPS systems. This comprehensive program ranges from customer battery replacement to full-service replacement of battery and UPS with service contracts. Utilize this selector to identify what options are available for your equipment.
