PSI5-1100RT120N
The Vertiv™ Liebert® PSI5 UPS, 1100VA 990W, is a compact, energy-efficient solution designed to safeguard media closets, small racks, active power factor correction (PFC) power supplies, conventional power supplies and other critical electronics. It also includes an IS-Unity-SNMP Communications Card. It provides cost-effective protection from power disturbances. With up to 10 minutes of battery backup time at half load and 2 minutes at full load, this reliable system allows ample time for an orderly shutdown during a power outage.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
PSI5-1100RT120N
The Vertiv™ Liebert® PSI5 UPS, 1100VA 990W, is a compact, energy-efficient solution designed to safeguard media closets, small racks, active power factor correction (PFC) power supplies, conventional power supplies and other critical electronics. It also includes an IS-Unity-SNMP Communications Card. It provides cost-effective protection from power disturbances. With up to 10 minutes of battery backup time at half load and 2 minutes at full load, this reliable system allows ample time for an orderly shutdown during a power outage.
Benefits
Features
and power management capability — Local USB or SNMP via optional Vertiv™ Liebert® UNITY communication card
Specifications

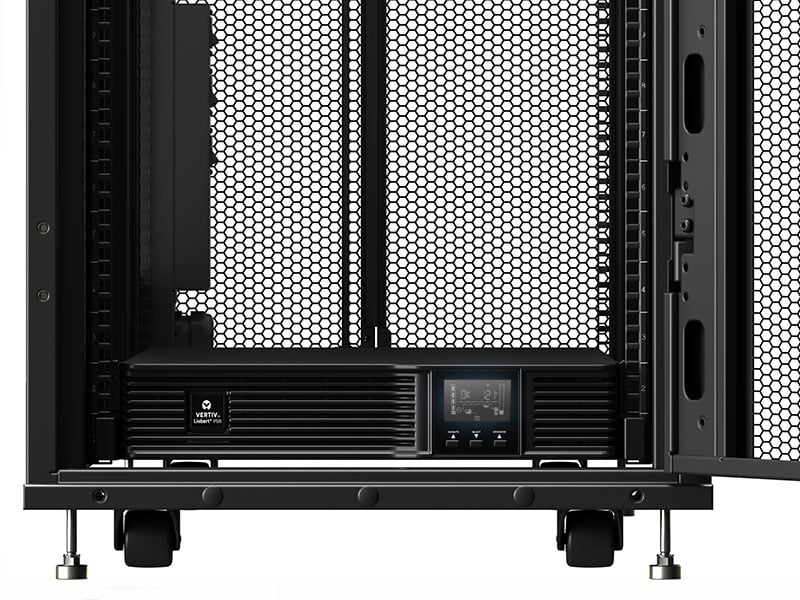

The flexible design of the Liebert® PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery. Not for sale in Vermont, Colorado, Washington.
- Product Overview
- Power Rating
- 1100VA / 990W
- Input Voltage
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage
- 120VAC (100/110/115/125VAC user-configurable)
- Efficiency
- Up to 96% (Normal Mode)
- Wiring
- Input: 5-15P; Output: 6 x 5-15R
- Operational Conditions
- Operating Temperature
- Up to 40C
- Miscellaneous
- Listings
- UL 1778, c-UL-us Listed, FCC Part 15, Class B
- Topology
- Line-interactive (automatic voltage regulation)
