Liebert® NXL
1100 kW, 480 / 575 / 600 Volts
NXL 1100 kVA
Specifications
Technical Specifications
NXL 1100 kVA

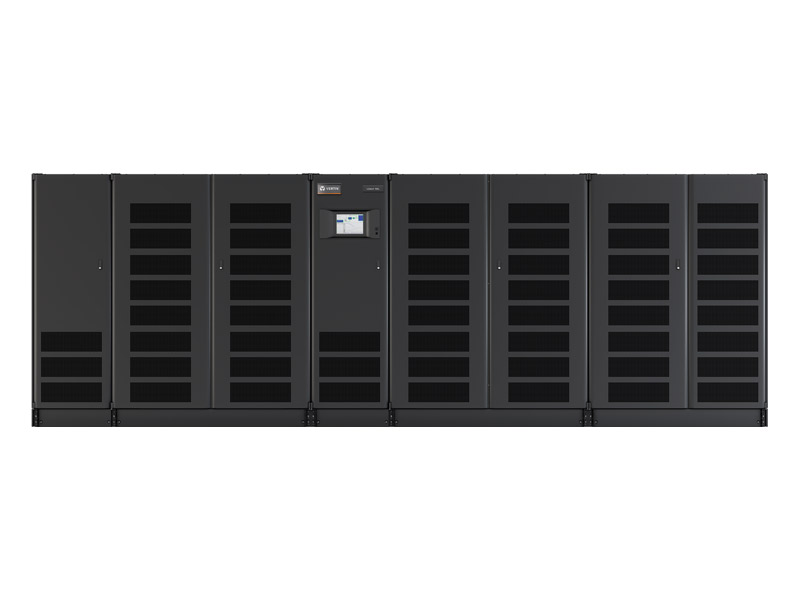

Liebert NXL™ uninterruptible power supply (UPS) provides reliable data center power protection and advanced technology for high power applications. This UPS adds dynamic performance to data center design, handling virtually any input condition while still providing computer-grade output to critical loads. The Liebert NXL UPS is available in both single module and multi-module systems. This model's capacity is 1100 kVA with a Unity power factor. Battery cabinets and maintenance bypass provide a complete power protection solution. Compatible with Lithium Ion battery systems.

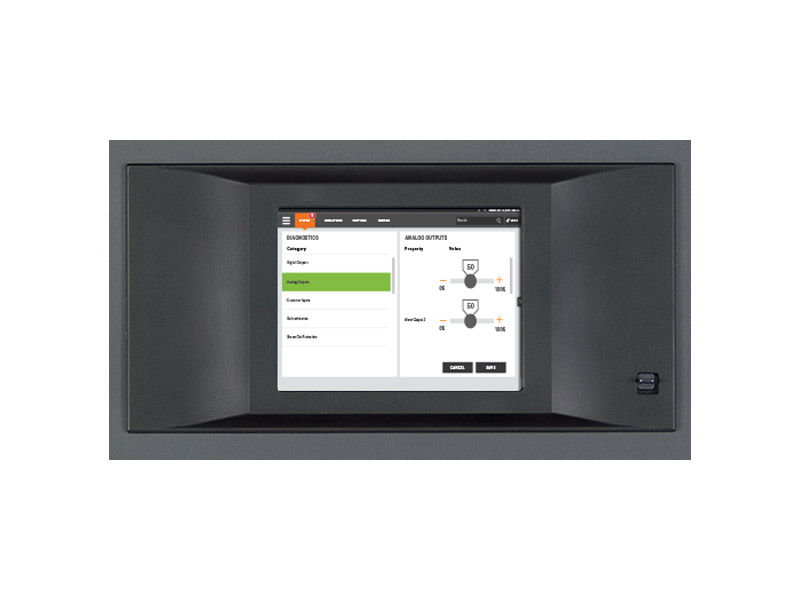

UPS protection for medium and large facilities Single and multi-module systems with latest generation technology Color touch-screen controls Matching battery cabinets and maintenance bypass cabinet
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship- Product Overview
- Power Rating
- 1100 kW
- Input Voltage
- 480 / 575 / 600 Volts
- Output Voltage
- 480 / 575 / 600 Volts
- Efficiency
- Up to 94%
- Wiring
- 3 or 4 wire
- Miscellaneous
- Topology
- Transformer Based
- Liebert® NXL Operation and Maintenance Manual (SL-25425)
- Liebert NXL UPS Installation Manual 625-1100kVA (SL-25435)
- Liebert NXL System Control Cabinet Installation Manual
- Liebert® NXL System Control Cabinet Operation Manual (SL-25514)
- Liebert® Battery Interface Box Product Specs-Installation Sheet (SL-25515)
- Liebert® NXL Power-Tie Controls Installation Manual
- Liebert® NXL Power-Tie Controls Manual (SL-25521)
- Liebert® Large System 3-Phase UPS Battery System Installation Manual (SL-25418)
- Liebert NXL UPS Single Module 1100kW/1100kVA Guide Specifications (SL-25524)
- Liebert NXL Multi Module UPS Distributed Static Switch 1100kW/1100kVA Guide Specifications (SL-25525)
- Liebert NXL UPS Multi Module Centralized Static Switch 1100kW/1100kVA Guide Specifications (SL-25526)
- Liebert NXL UPS 625-1100kVA Single Module Site Planning Data (SL-25529)
- Liebert NXL UPS 625-1100kVA 1+1 (Distributed Bypass) Multi Module Site Planning Data (SL-25532)
- Liebert NXL UPS 625-1100kVA 1+N (Distributed Bypass) Multi Module Site Planning Data (SL-25531)
- Liebert NXL UPS 625-1100kVA N+1 Central Bypass Multi Module Site Planning Data (SL-25530)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
