Liebert ITA2 UPS, 10kVA
The Liebert ITA2 UPS offers economical, efficient and reliable three-phase power for critical loads under 10kVA. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Liebert ITA2 UPS, 10kVA
The Liebert ITA2 UPS offers economical, efficient and reliable three-phase power for critical loads under 10kVA. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications
The Liebert ITA2 UPS features: 8 and 10kVA three-phase (3:3) online power protection, high power factor, compact design, rackmount or tower form factor, high operating efficiency, flexible output distribution, optional maintenance bypass cabinet, intuitive control panel. Easy to install, cable and operate.
- Product Overview
- Power Rating
- 10kVA / 10kW
- Input Voltage
- 208V
- Output Voltage
- 208V
- Efficiency
- 93.1%
- Wiring
- 4W+G
- Interfaces/Ports
- Interface Options
- Remote monitoring included; dry contact outputs & enviromental monitornig options available.
- Protocols
- HTTP/HTTPS, SNMP v1/v2c/v3, BACnet IP/MSTP, Modbus TCP/RTU
- Control Panel
- Graphic LCD display with power and menu buttons
- Cable Access
- Rear
- Service Access
- Front & Rear
- Operational Conditions
- Operating Temperature
- Up to 50°C
- Miscellaneous
- Listings
- UL Standard 1778, 5th Edition; CSA 22.2 No. 107.3; and cULus labeled; FCC Class A, ISTA 1A/3B
- Topology
- Online Double Conversion
- Liebert ITA2 5-10kVA Three Phase UPS User Manual
- Liebert® ITA2 Maintenance Bypass Cabinet User Manual (SL-26252)
- Liebert ITA2 Battery Cabinet 8-10kVA Installation Manual (SL-26250)
- Liebert ITA2 Battery Cabinet Quick Start Guide
- Liebert® ITA2 MBC Quick Start Guide SL-26256QS
- Liebert® ITA2 UPS Quick Start Guide SL-26255QS.pdf
- Liebert® ITA2 UPS 15-20kVA User Manual SL-26262.pdf
- Vertiv Liebert MPL Battery Cabinet System User Manual SL-26264.pdf
- Runtime Tool: Liebert ITA2 UPS, 10kVA
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Frequently Asked Questions
- Q
- Is the complete power system rackmountable?
- A

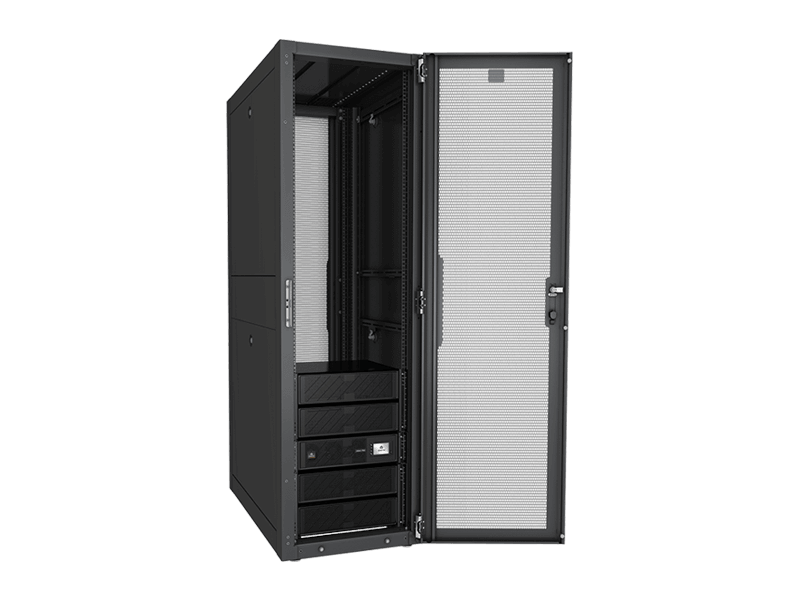

- Yes. From the base UPS and all the batteries to the maintenance bypass .... each conveniently fits in the rack.
- Q
- Can we power different receptacle types from the same UPS?
- A

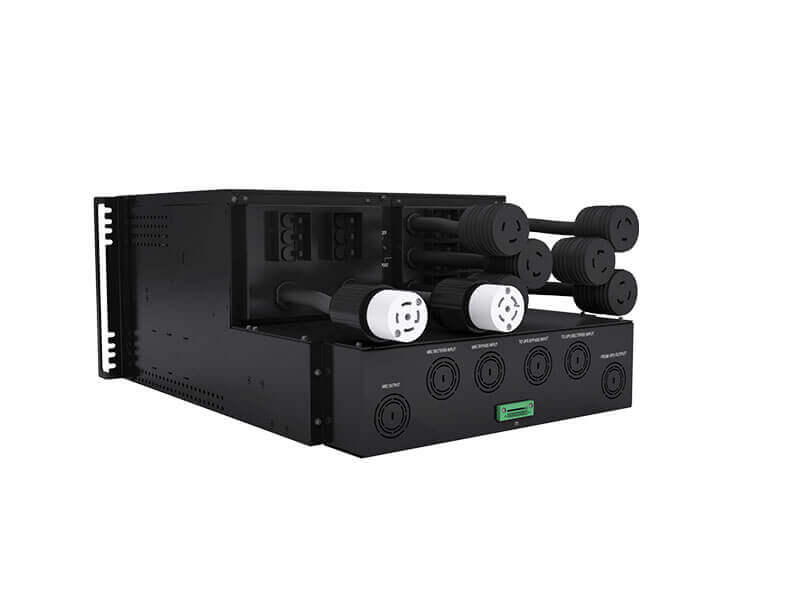

- Yes, the optional Output Distribution assembly can accept numerous types. These offer greater flexibility and ease of installation. See the POD diagram in the brochure.
- Q
- What is provided with the UPS?
- A
- Vertiv strives to make it easy. Each standard UPS shipment contains: UPS module, CD with instruction/user manuals (multiple languages), USB cable, Rackmount rail kit and handles, tower base kit, copper jumpers for single-input configuration, IS-UNITY communications card and UPS to battery cabinet cable. Battery modules and maintenance bypass options packaged separately. Every unit is expertly and conveniently packaged.
- Q
- What is the overload capacity of Liebert ITA2?
- A
- Liebert ITA2 overload limits are 5 minutes up to 125% load and 1 minute up to 150% load. These values are measured at full active power (unity output PF)
- Q
- Does Liebert® ITA2 support ECO Mode operation?
- A
- Yes, Liebert ITA2 supports the ECO Mode with an efficiency up to 99%.
