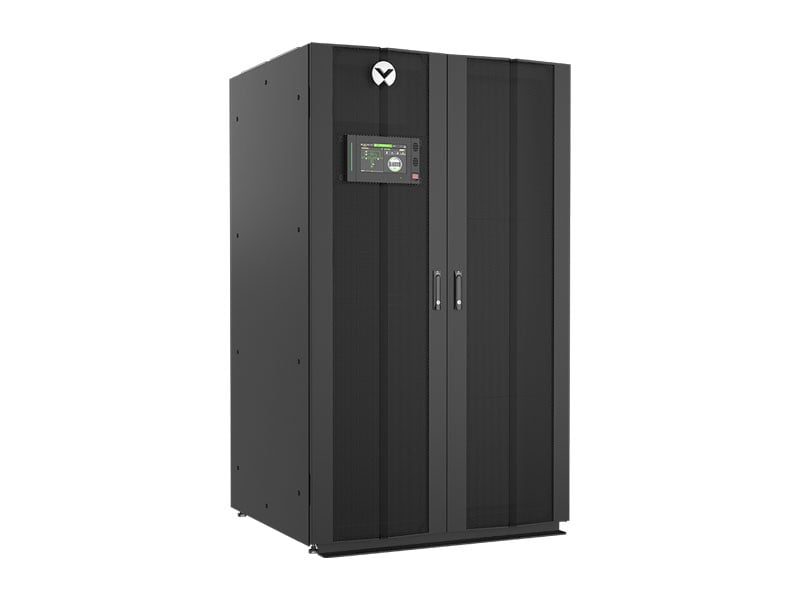

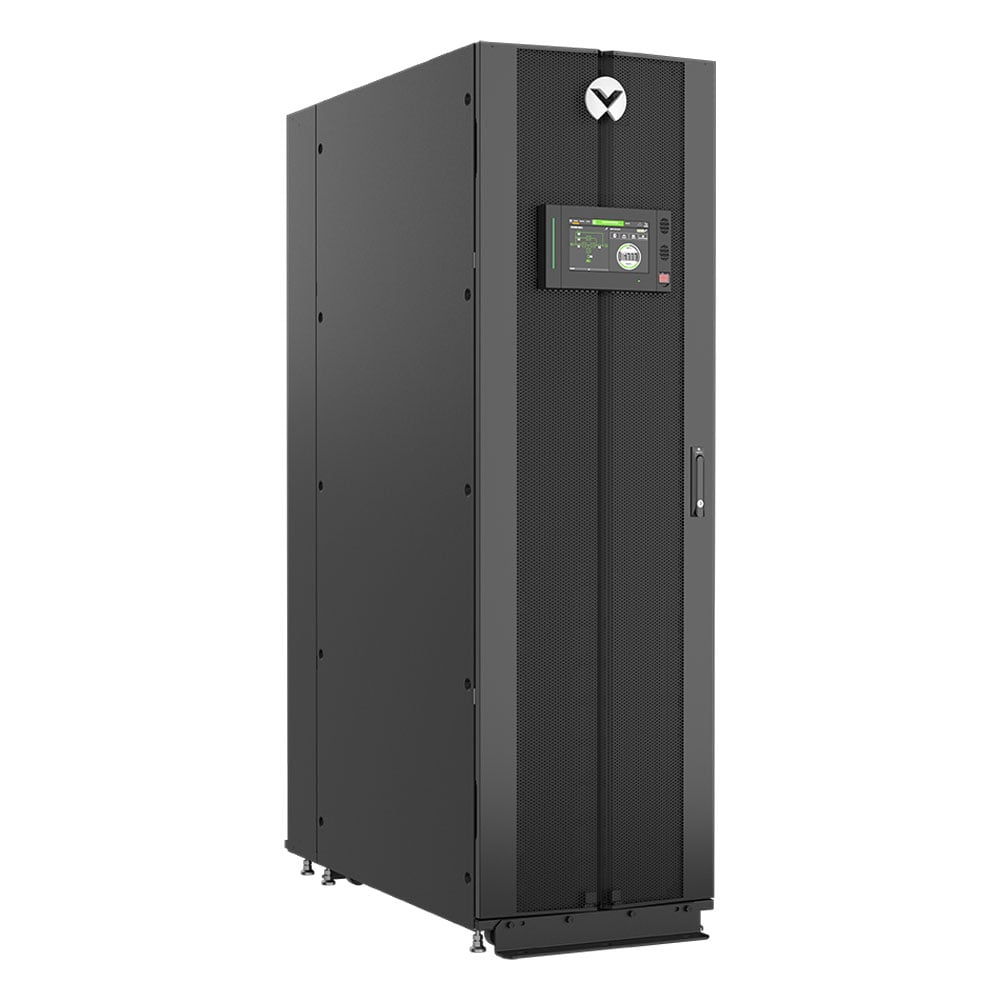

Liebert® APM2 UL UPS 480V/415V

Get Brochure

High power density design provides more power with less space

Integrated maintenance bypass options up to 150kVA 208V or 300kVA 480V reduce need for extra cabinet

Scale capacity with ease for growing power needs

Advanced modular redundant architecture provides superior fault tolerance to increase uptime

Built on decades of global reliability and quality in critical power applications)

Flexible power capacity and voltage lead to standardized install base

Remarkable efficiencies driving operational cost savings

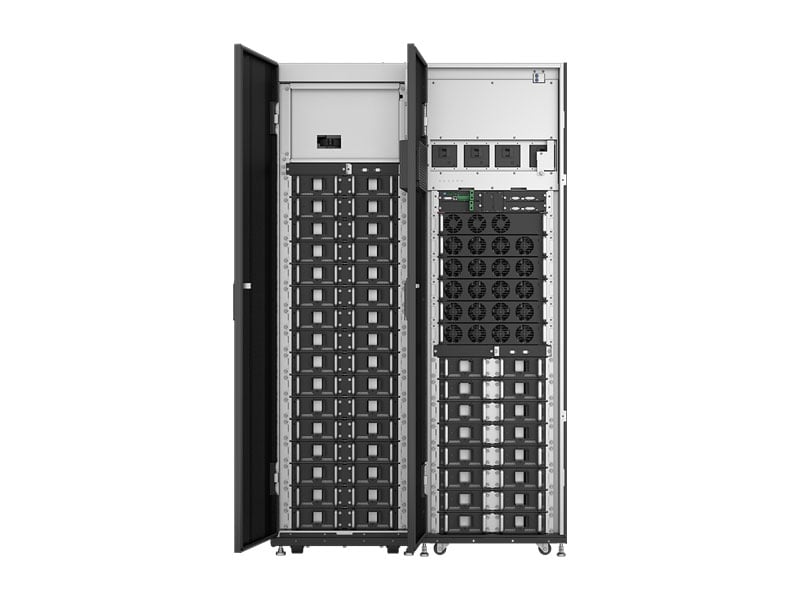

Modular hot swappable lithium ion and VRLA internal batteries, and optimized external cabinet solutions available

Designed, manufactured and tested for global availability (CE, UL)

Quick Access

Brochure

See All

Technical Specifications

Liebert® APM2 UL UPS 480V/415V

Print Technical Specifications Download PDF Send to Email

The Liebert® APM2 UPS is based on a reliable, double conversion power topology that uses an efficient transformer-free design. Excellent efficiencies of 97.5% are generated and can be enhanced to 99% using our unique Eco Mode. A unity power factor delivers more capacity in a smaller footprint. Available in fixed capacity or as a scalable, redundant configuration from 10-150kVA/kW in 208V and 20-600kVA/kW in 480/415V, each utilizes a modular construction design with optimized ancillary cabinets designed to save the customer footprint and cost. The new touchscreen control panel ensures Status At-A Glance convenience, flexible views and multiple security options. Intelligent controls and communications integrate with Vertiv™ Power Insight as well as 3rd party BMS and DCIM systems. Vertiv™ LIFE Services provides 24x7 remote monitoring by our expert staff to improve availability and lower labor costs.

Warranty : One Year Limited Warranty Against Defects in Material and Workmanship

Brochures and Data Sheets

Brochures and Data Sheets

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

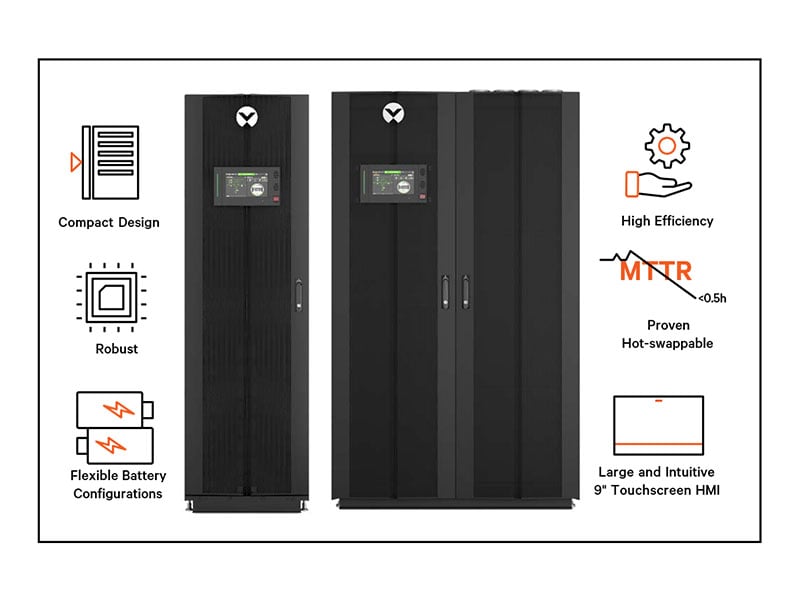

Benefits

Efficiency-Winning operating efficiencies that remain high across multiple load scenarios

Transformer free design saves space, capital, weight and shipping costs.

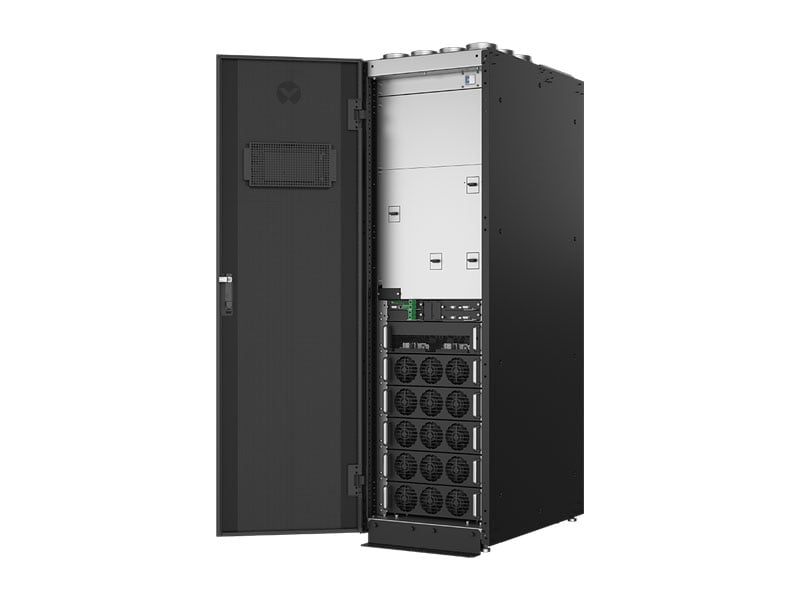

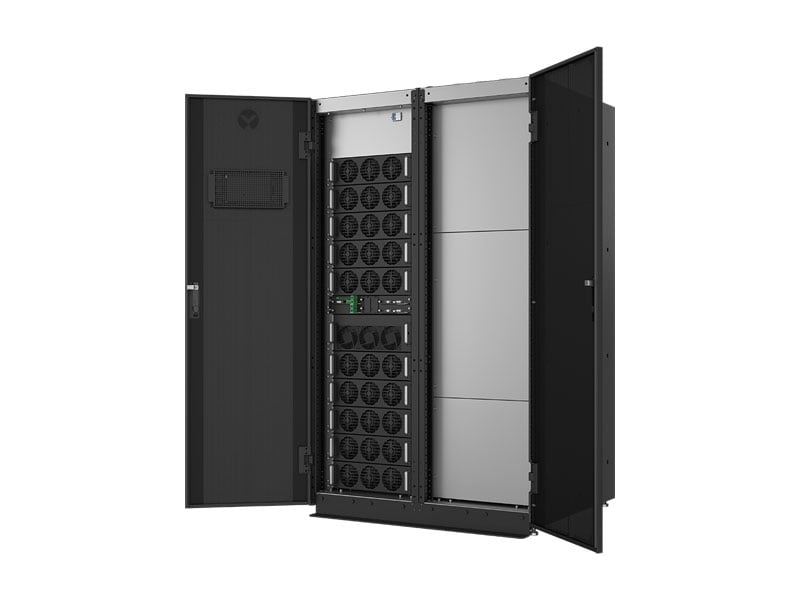

High-density yet compact, modular, and scalable design with hot-swappable modules- internal modular batteries (VRLA/Li-Ion) power, bypass, HMI and communication modules resulting in easy serviceability and optimized MTTR < 0.5h

External matching Li-Ion and VRLA battery cabinet solutions across all ratings and voltages available to meet capacity and runtime demands

Intelligent paralleling capability up to 4 units to obtain more capacity or add system level redundancy

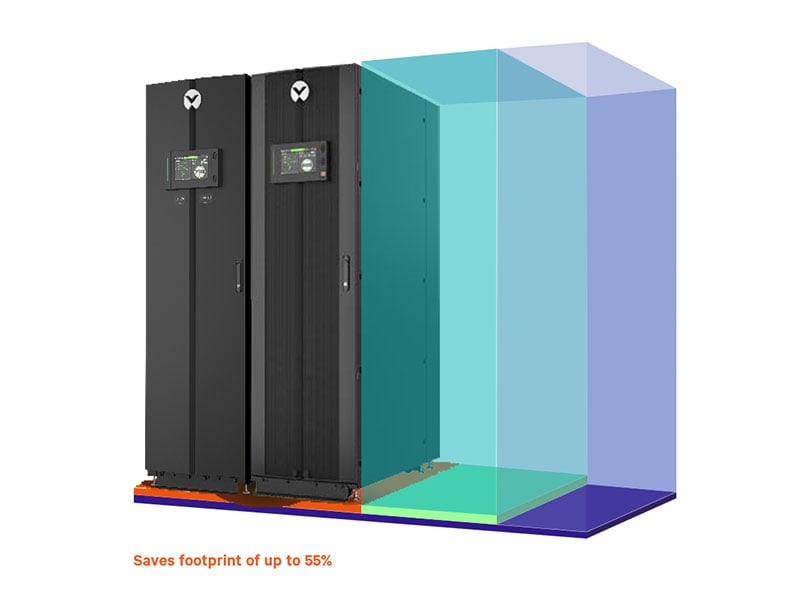

Optimized ancillaries provide small footprints for better use of space and lower installation costs

Bypass cabinet option allows maintenance without shutting down the critical load

Distribution panel board option to add more circuits

DCIM and BMS ready

Features

Available Power Capacity- 10-150kVA 208/220V and 20-600kVA 480/415V

Available in 4-wire configuration for 208/220V and for 415V. Available in 3 or 4-wire configuration for 480V

Remarkable double conversion efficiency up to 97.5% with unity output factor

Internal modular batteries available in either VRLA or Lithium-Ion

Large, intuitive 9-inch full-color touchscreen HMI with real-time waveform monitoring and predictive maintenance notifications

Seamlessly operates up to 50°C with auto-derating above 40°C

Supports self-capacity test

ENERGY STAR qualified
