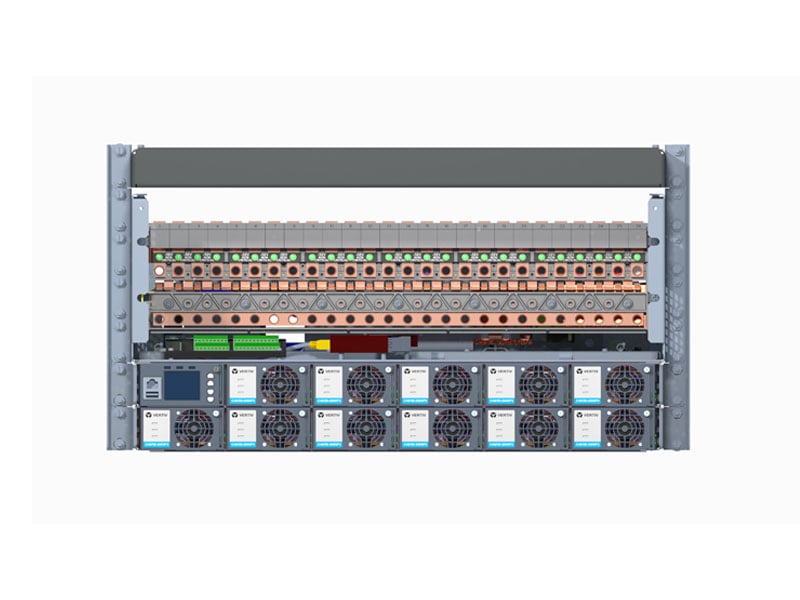

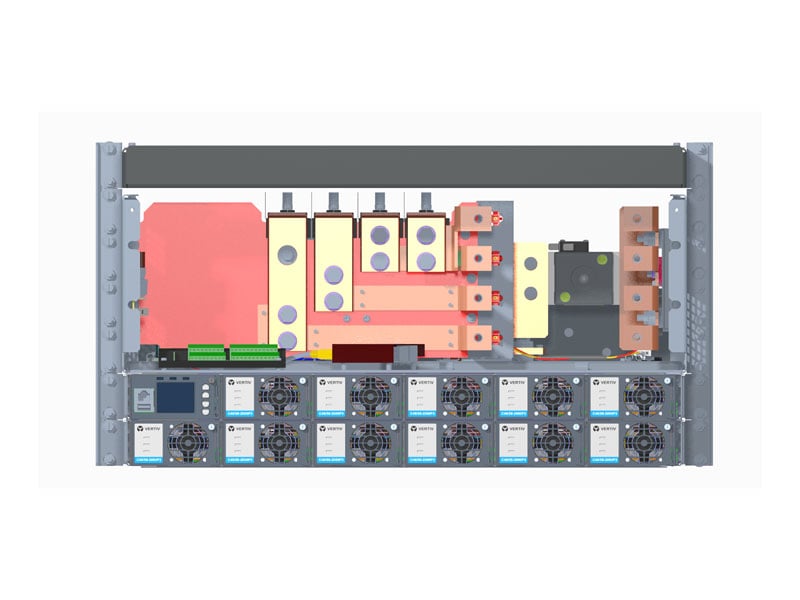

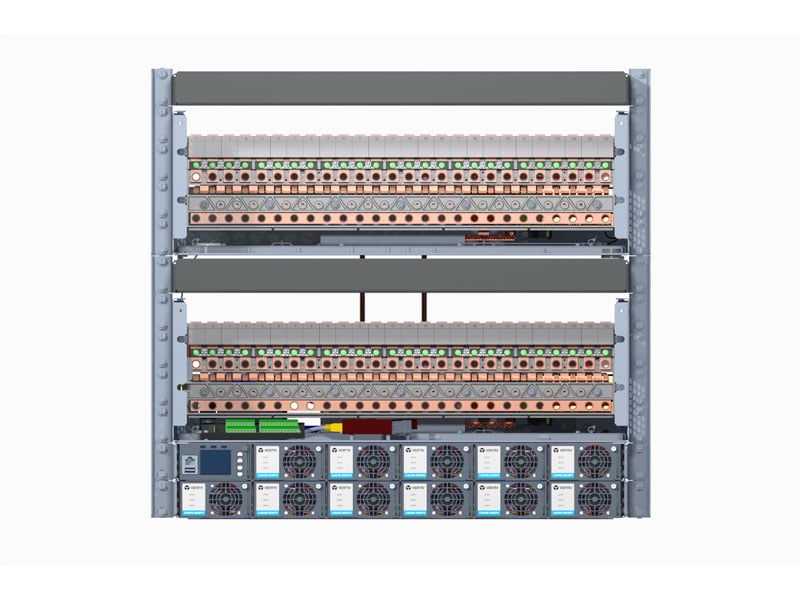

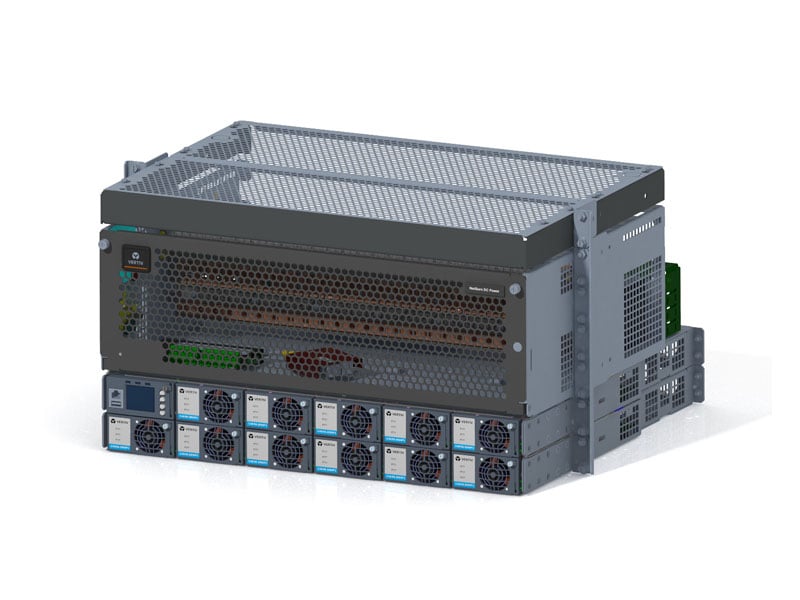

Vertiv™ NetSure™ Converter System -48V DC to -58V DC
NetSure Converter Series systems convert one DC voltage to another.
Quick Access
Specifications
Technical Specifications
Vertiv™ NetSure™ Converter System -48V DC to -58V DC
- Input
- Input Voltage, Operational
- -41.0V DC to -58.5V DC
- Input Connections
- 2-hole lug, 3/8" D x 1" on center
- Access
- Front and rear access for installation. Front access for operation.
- Output
- Output Voltage, Operational
- -56V DC to -58V DC
- Output Capacity
- Converter Module: 2000W; Shelf: 12kW; System: 34.8kW
- Peak Efficiency
- 95.60%
- Load Circuit Breakers / Fuses
- (26 to 52) Bullet type Positions or (4) GJ/218 CB Type Positions
- Physical Characteristics
- Weight
- 37.7 kgs
- Height
- 311.2 mm
- Width
- 592.8 mm
- Depth
- 506.5 mm
- Environmetal & Standard Compliance
- Operating Temperature
- -40 deg C to +65 deg C
- Safety Compliance
- UL 62368-1, NEBS
- EMC Compliance
- FCC Part 15 Subpart B, GR-1089 and EN 55032 Class B radiated emissions limits. GR-1089 conducted emission limits. EN 55032 Class A limits for conducted emissions.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv™ NetSure™ Converter System -48V DC to -58V DC
Benefits
Modular design: Provides for system redundancy and easy expansion of operating capacity in small increments
Expandable: Optional converter shelves and distribution panel allow for system growth as site needs dictate
Hot insertion capability: Allows for system expansion without disruption
Surge Protection: Built-in surge protection protects equipment from damages
Load Shedding: Optional load disconnect contactor allows for shedding non-critical loads
Features
Safety compliance - NEBS, UL
Protection - Current limiting, Over-voltage and Over-temperature
Load sharing for parallel operation
Nine (9) Form-C alarm outputs
Easily accessible input and output connections for simplified installation
Emergency Power Off
