R48-2000C2-6
The Vertiv™ NetSure™ IPE R48-2000C2-6 outdoor DC power system is designed to support 5G applications including small cells, Distributed Antenna Systems (DAS) and radio access networks (RAN). The high-efficiency rectifier meets IP65 rating for use in harsh outdoor environments and is compatible with outdoor lithium batteries. Fanless cooling eliminates maintenance and results in silent operation. Quick connectors help minimize installation time. Ideal for rapid deployment in dense urban or remote rural telecom access networks.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
R48-2000C2-6
The Vertiv™ NetSure™ IPE R48-2000C2-6 outdoor DC power system is designed to support 5G applications including small cells, Distributed Antenna Systems (DAS) and radio access networks (RAN). The high-efficiency rectifier meets IP65 rating for use in harsh outdoor environments and is compatible with outdoor lithium batteries. Fanless cooling eliminates maintenance and results in silent operation. Quick connectors help minimize installation time. Ideal for rapid deployment in dense urban or remote rural telecom access networks.
- Telecom
Benefits
Features
Specifications
The space-saving NetSure IPE outdoor rectifier supports telecommunications infrastructure in mobile networks and is ideal for use in network edge applications including 5G small cells, remote radio heads (RRHs), distributed telecommunications networks, and locations with high data demand, such as sports arenas, stadiums, public transport systems, airports, shopping and educational centers. Rapid deployment outdoors is easy since the unit is hardened and does not require a separate housing for protection against the elements.
- Product Overview
- Power Capacity
- 2000 W
- Current Capacity
- 41.6 A
- Output Voltage, Nominal
- -54 VDC
- Input Voltage, Nominal
- 200-240 VAC
- System Type
- Outdoor system
- Input
- Input Voltage, Nominal
- 200-240 VAC
- Input Voltage, Operational
- 85 VAC to 300 VAC
- Input Connections
- Quick Connectors
- Equipment Dimensions (H x W x D)
- 400x 300 x 62 mm / 15.7 x 11.8 x 2.4 inches
- Access
- Front access panel
- Output
- Output Voltage, Nominal
- -54 VDC
- Output Voltage, Operational
- -42 to -58 VDC
- Output Capacity
- 2000 W
- Peak Efficiency
- >93% at 100 VAC input, >96.3% at 230 VAC input
- Physical Characteristics
- Options

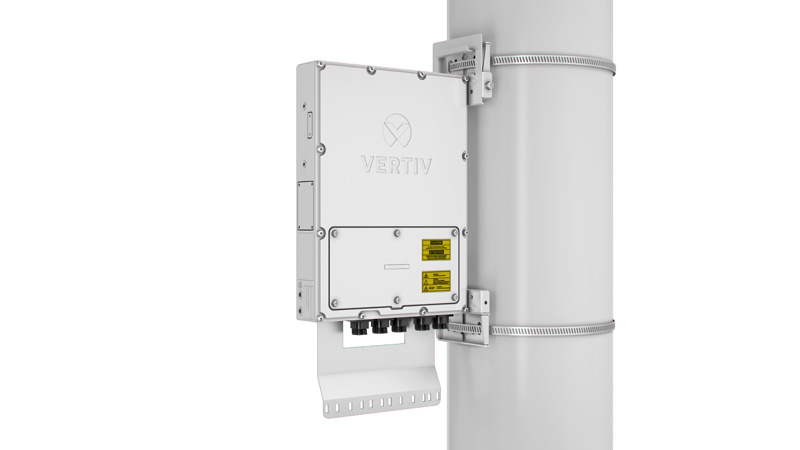

- Pole or wall mounting in flush or flag position
- Weight
- 9.5 kgs
- Height
- 400 mm
- Width
- 300 mm
- Depth
- 62 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Bluetooth enabled, wired Ethernet connection for SNMP
- Operating Temperature
- -40 to 75°C / -40 to +167°F
- Safety Compliance
- CE, 62368-1, 60950-22 (EN, IEC, UL)
- EMC Compliance
- EN55022, ETSI EN300 386, FCC CFR 47 Part 15 (Class B), GR-1089-CORE Issue 7:2017
