Product Model

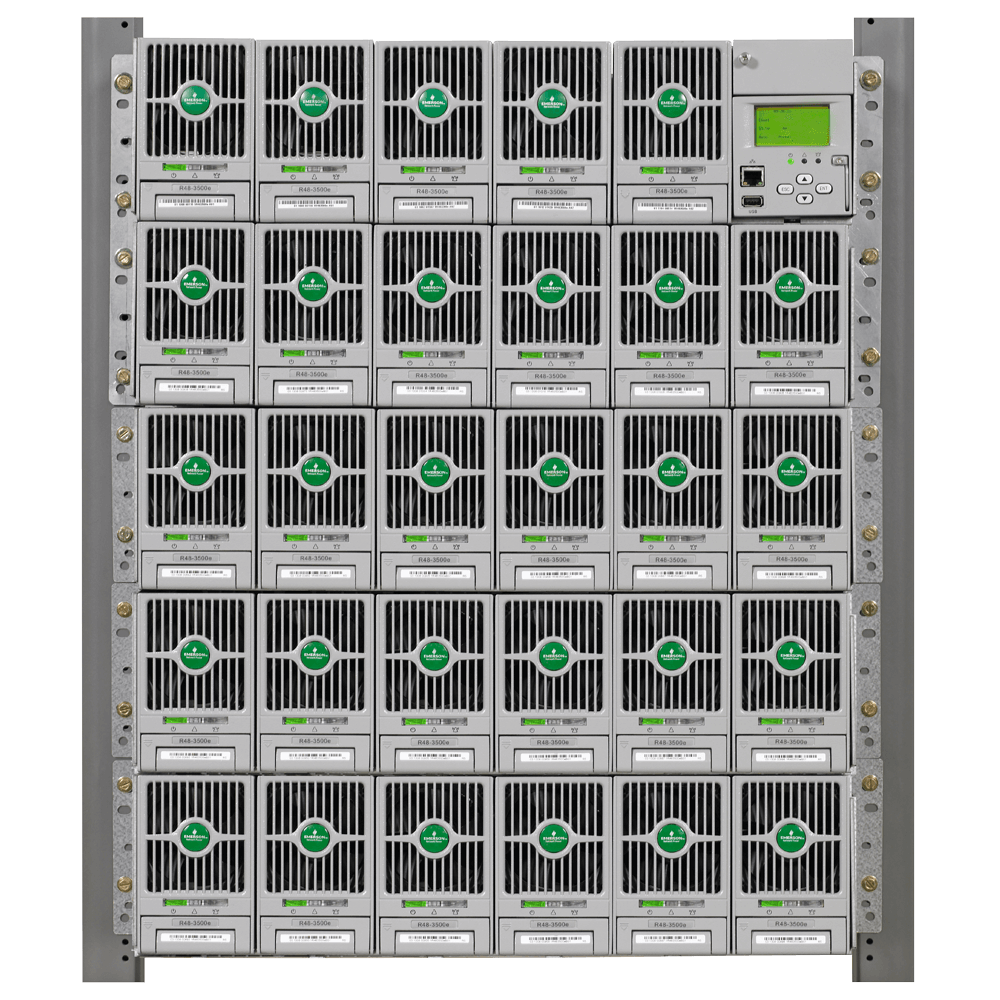

NetSure 722 Bulk Output Power System
The modular NetSure 722 power system with 3500 watt high efficiency rectifiers provides up to 2000 amps of current for –48 volt systems.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
Product Model
NetSure 722 Bulk Output Power System
The modular NetSure 722 power system with 3500 watt high efficiency rectifiers provides up to 2000 amps of current for –48 volt systems.
Best Suited For:
- Telecom
Benefits
Simple to install and operate; allows incremental cost-effective system growth
Enhanced real-time visibility into what's powering your network
Add power capacity without changing the settings and making adjustments; no system interruption
Allows for easy installation, additions and maintenance
Save floor space with this high density, compact design
Adherence to strict compliance standards ensures years of safe and reliable operation
Features
Scalable, Modular Design
Advanced Controller – offers battery management, site monitoring and configuration management
Remote Access – options allow users to view, control and interact with the system using an Ethernet interface
Plug'n'Play rectifiers
NEBS Level 3 certified; UL Listed to UL subject 1801, FCC Class B
Specifications
NetSure 722 Bulk Output Power System
- Product Overview
- Power Capacity
- 100 kW
- Current Capacity
- 2000 A
- Output Voltage, Nominal
- -48 VDC
- Input Voltage, Nominal
- 208 VAC to 240 VAC
- System Type
- System
- Input
- Input Voltage, Nominal
- 208 VAC to 240 VAC
- Input Voltage, Operational
- 180 VAC to 264 VAC
- Input Connections
- Terminal Blocks
- Equipment Dimensions (H x W x D)
- Rectifier Shelf: 5.2" (3RU) x 23" x 18.8", Rectifier: 5.2" (3RU) x 3.4" x 11.3"
- Access

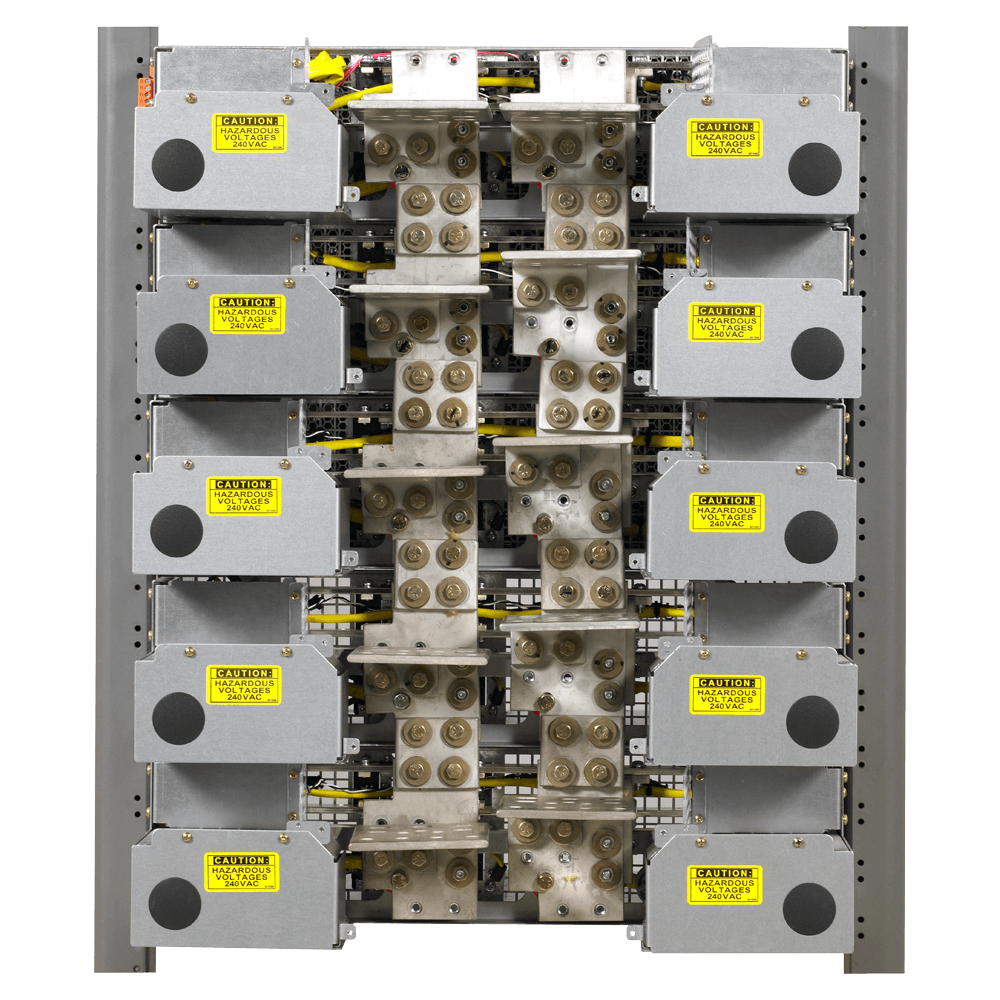

- Front for operation and maintenance, Rear for installation and expansion
- Output
- Output Voltage, Nominal
- -48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity

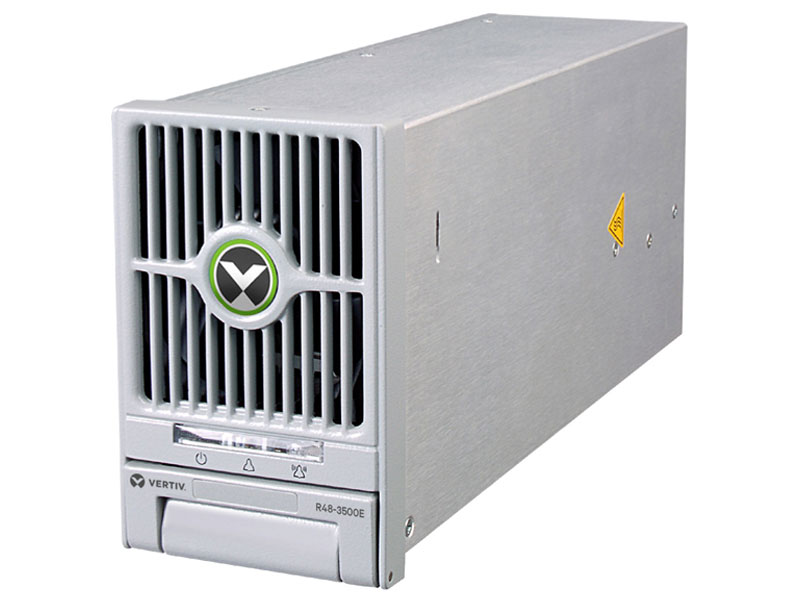

- Rectifier: 3500 W, Main Shelf: 17.5 kW @ 48 VDC, Expansion Shelf: 21 kW @ 48 VDC, System: 100 kW @ 48 VDC
- Peak Efficiency
- 96.5%
- Physical Characteristics
- Weight
- 10.9 kg to 145.5 kg
- Height
- 133.4 mm to 666.8 mm
- Width
- 584.2 mm mounting
- Depth
- 477.5 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management

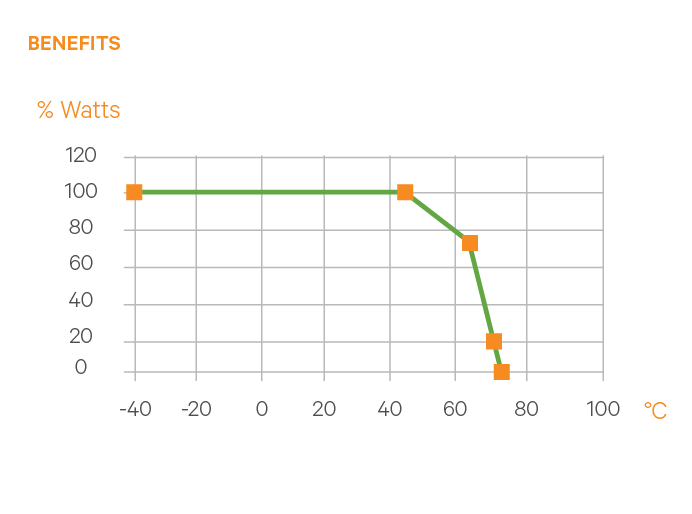

- Operating Temperature
- -40 °C to +65 °C (-40 °F to +149 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
Manuals
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
