NetSure 7100 Series
The NetSure 7000 Series of DC power systems is ideal for applications ranging from radio base stations and small offices to large office and data center facilities requiring high power efficiency, reliability and system availability in a small footprint.
Quick Access
Specifications
Technical Specifications
NetSure 7100 Series
- Product Overview
- Power Capacity
- 600 kW (6 bays)
- Current Capacity
- 12,000 A (6 bays)
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- System Type
- Cabinet or Relay Rack
- Input
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- Input Voltage, Operational
- 176 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 90.9 to 295.5 kg
- Height
- 2134 mm
- Width
- 584.2 to 711.2 mm
- Depth
- 510.5 to 711.2 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management
- Operating Temperature

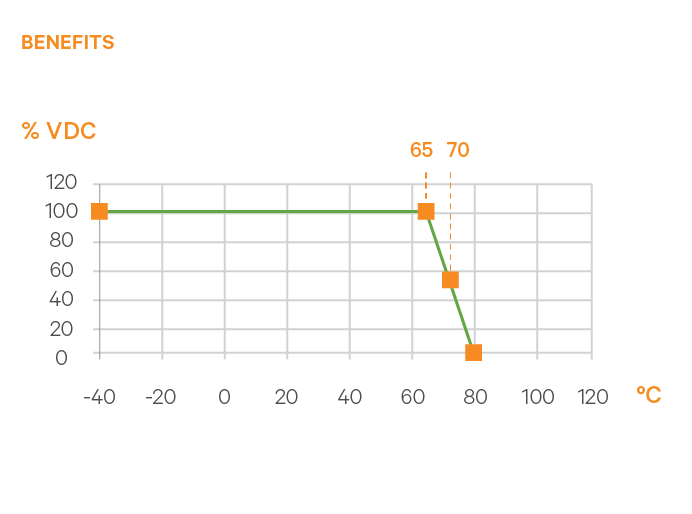

- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
Manuals
- IM60028017 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028248 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028039 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- UM582127000
- IM60029556 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60027905 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual.pdf
- Rectifier User Manual UM1R483500E3
- Vertiv™ NetSure™ NCU Controller User Manual UM1M830BNA
- 1M820BNA ACU+ Controller User Manual
- UM1C48241500 Converter User Manual
- SM-TEMP User Manual UM547490
- Rectifier User Manual UM1R483500E3
- UM1R483500E Rectifier User Manual
- UM1R482000E3 eSure Rectifier User Manual
- IM582127000
- UM10010507 (Rev E)
- im559252-netsure-controller-ethernet-kit
- UM1C48582000P3 eSure Power Extend Converter User Manual.pdf
- IM588820200SK001 Vertiv -48V Netsure Battery Tray Kit.pdf
- IM559251 (Rev E).pdf
Brochures and Data Sheets
- NetSure 7100 Data Sheet with eSure Power Extend Converters
- Vertiv-eSure-Rectifier-R48-3500E3-DS-EN-GL-DC.pdf
- R483500e-Rectifier-DataSheet
- Vertiv-eSure-Rectifier-R48-2000E3-DS-EN-GL-DC
- C48-58-2000P3 eSure Power Extend Converter Data Sheet
- C48-24-1500 Vertiv eSure Converter Data Sheet DC-20211018.pdf
- DAS Solutions Brochure
- Vertiv™ NetSure™ NCU Controller Data Sheet
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- Vertiv™ NetSure™ DC Power Services Test and Turn-up Certification Data Sheet.pdf
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
NetSure 7100 Series
Benefits
Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability

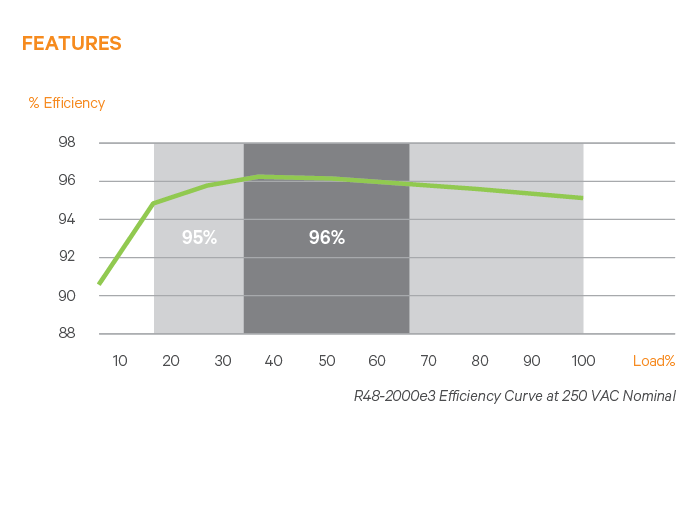

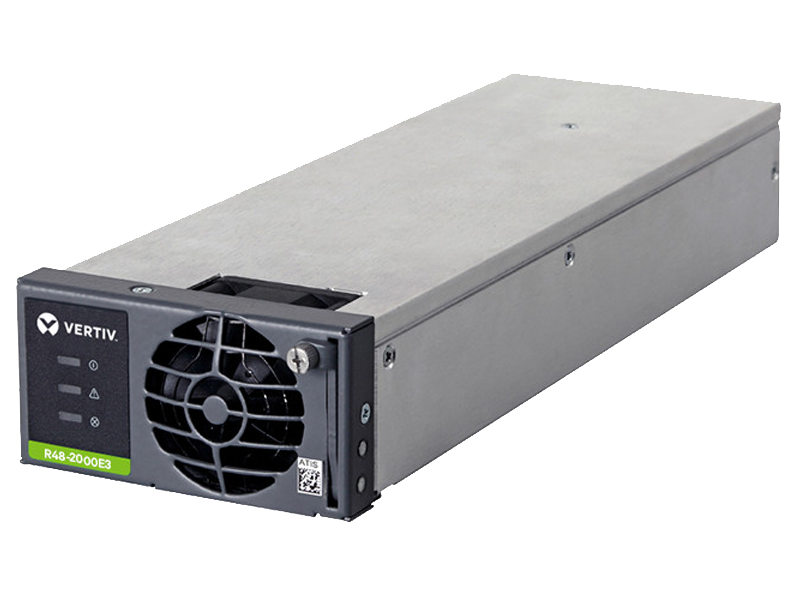

Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable configuration that allows for incremental system growth
High reliability with N+1 configuration redundancy
Features
Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units
High system efficiency over 96%
Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified and UL Listed to UL subject 1801
