Product Model

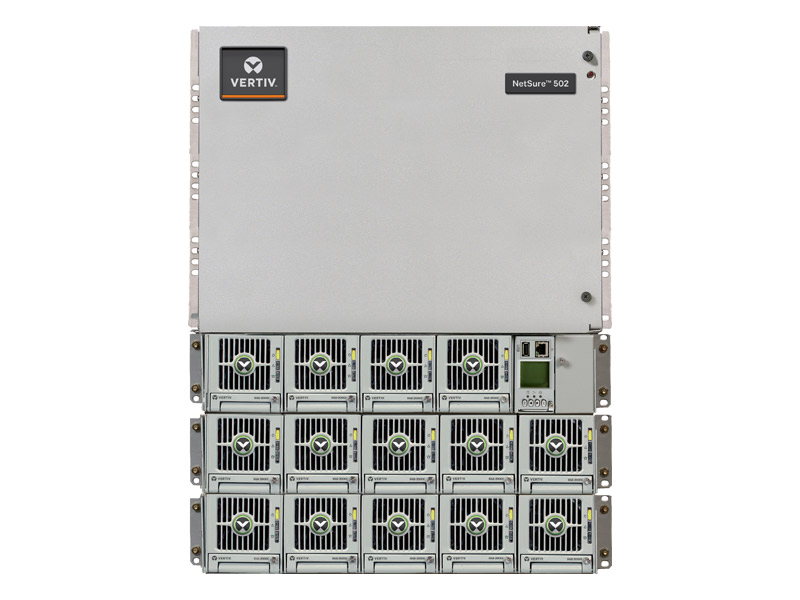

NetSure 502 Full DC Power System
Flexible DC power systems available in integrated, bulk output shelves or externally mounted distribution panel systems.
Quick Access
Specifications
Technical Specifications
NetSure 502 Full DC Power System
- Product Overview
- Power Capacity
- 18 - 28.8 kW
- Current Capacity
- 40 - 600 A
- Output Voltage, Nominal
- -48V DC
- Input Voltage, Nominal
- Single phase: 120 VAC, 208 VAC to 240 VAC
- System Type
- System
- Input
- Input Voltage, Nominal
- Single phase: 120 VAC, 208 VAC to 240 VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC
- Input Connections
- Molex for AC cords or hardwiring
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 4U x 19" x 13.19" or 8U x 23" x 13.19", Module shelf: 2U x (19" or 23") x 13.19"
- Access
- Top or rear cabled with front and top access
- Output
- Output Voltage, Nominal
- -48V DC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC
- Output Capacity
- Up to 600 amps at -48 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.5%
- Load Circuit Breakers / Fuses
- 1-250 A E/M or E bullet nose breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 250 A E/M or E breakers, 50A to 2,00A GJ Breakers, 3A to 100A TPS/TLS fuses
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Listed (cUL)
- EMC Compliance
- Conforms to FCC rules Part 15, Subpart B, Class B; EN55022 Class B, radiated and conducted; GR-1089 Issue 4
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
NetSure 502 Full DC Power System
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with rectifier high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with customer configuration files
Features
High efficiency – 96.5% efficient eSure rectifiers
NetSure™ rectifiers are designed to operate from -40 °C to +80 °C, providing a minimum 1750 W output at 65 °C
Selectable AC Input - 120 VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery Management Capability
ECO Energy Savings Mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
