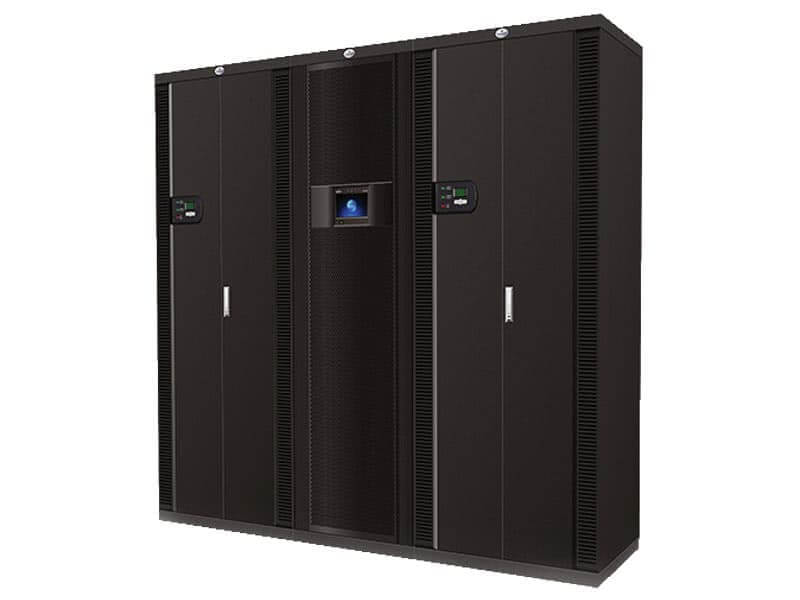

NetSure HVT EO2 CN1
Free up floor space near IT and telecom gear
Transition to HVDC power while supporting critical AC and -48 VDC loads
Use 10 times less copper cabling than -48 VDC
Reduce energy losses on site with less AC to DC conversions
Quick Access
Specifications
Technical Specifications
NetSure HVT EO2 CN1
- Product Overview
- Power Capacity
- 360 kW
- Current Capacity
- 900 A
- Output Voltage, Nominal
- 400 VDC
- Input Voltage, Nominal
- 380 VAC / 480 VAC
- System Type
- Cabinet
- Input
- Input Voltage, Nominal
- 380 VAC / 480 VAC
- Input Voltage, Operational
- 260-530 VAC
- Input Connections
- 2 x 3-phase 4-wire / 3-phase 5-wire (Available for 630 , 800 or 1000 A input current
- Equipment Dimensions (H x W x D)
- Battery control box
- Access
- Full front access, easy front and rear maintenance, fee cabling.
- Output
- Output Voltage, Nominal
- 400 VDC
- Output Voltage, Operational
- 378 VDC
- Output Capacity
- 360 kW / 900 A
- Peak Efficiency
- 97 %
- Load Circuit Breakers / Fuses
- Fuses or MCB
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 2 x 1250 A Fuse or 2 X 1600 A Fuse
- Weight
- 200-300 kg
- Height
- 2000 mm
- Width
- 600 mm
- Depth
- 800 mm
NetSure HVT EO2 CN1
This efficient, reliable family of AC to DC power systems for critical HVDC power applications combines the proven benefits of 48V DC power – modularity, scalability, ease of integration – with the cable and installation saving benefits of higher voltage distribution.
Benefits
Achieve your sustainability goals and save energy by minimizing AC to DC conversion steps via high voltage DC power (HVDC)
Significantly reduce cabling and installation costs by distributing power at high voltage DC compared to 48V DC
Free up floor space near the load by remotely backing up your HVDC infrastructure
Minimize CapEx by building out power capacity in a scalable fashion to match your site power needs
Features
Use 10 times less copper cabling than -48 VDC
Higher power density and small footprint
Safe and reliable with alarms for insulation failure and grounding faults
Real time remote monitoring via TCP/IP, SNMP and major web browsers
Specialized parallel design for capacity expansion
